FRONT ROTARY SENSOR REPLACEMENT

Description:

REMOVE OR DISCONNECT
1. Raise vehicle.
2. Wheel from vehicle.
3. Open clip (6).

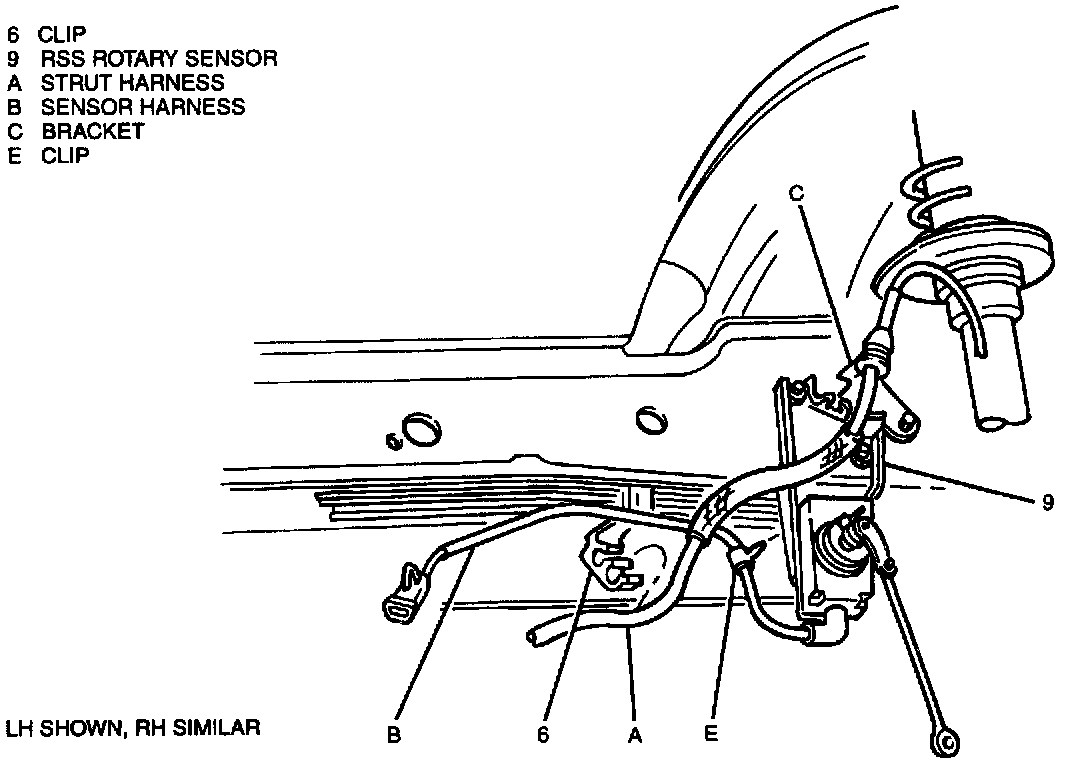

4. Strut harness (A) and sensor harness (B) from clip (6).
5. Sensor harness (B) connector from vehicle harness connector.
6. Strut harness (A) from bracket (C).
7. Sensor link (7) from ball stud (D).

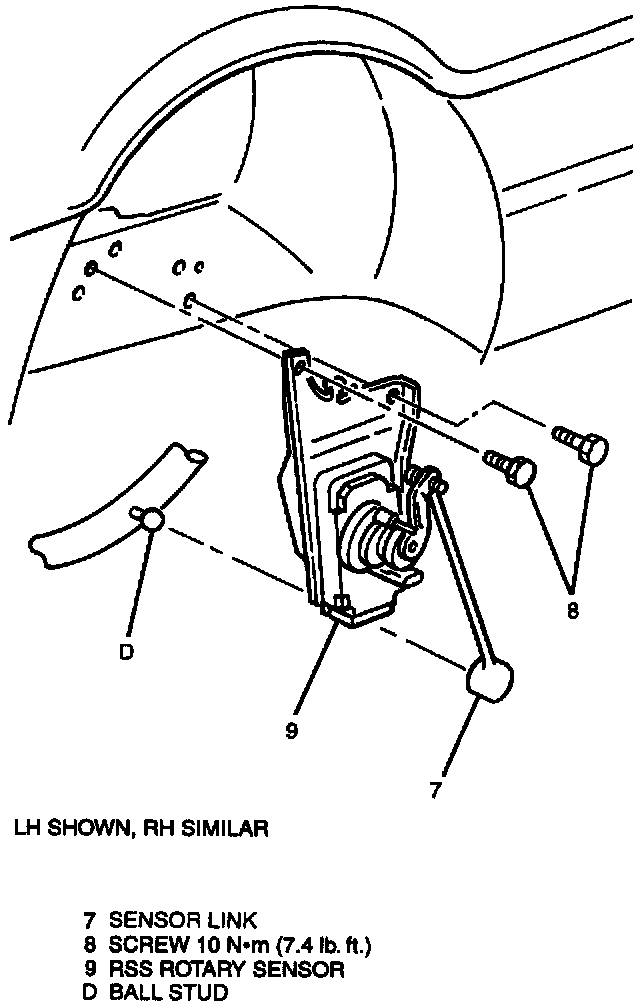

8. Two screws (8) and RSS rotary sensor (9) from vehicle.

INSTALL OR CONNECT
1. Install RSS rotary sensor (9) on vehicle with two screws (8).

TIGHTEN
^ Two screws to 10 Nm (89 lb. in.).

2. Sensor link (7) to ball stud (D).
3. Sensor harness (B) connector to vehicle harness connector.
4. Clip (E) in hole at back of rotary sensor.
5. Strut harness (A) to bracket (C).
6. Strut harness (A) and sensor harness (B) to clip (6).
7. Close clip (6).
8. Wheel to vehicle.
9. Lower vehicle.
