Engine Compartment Micro Relay Center

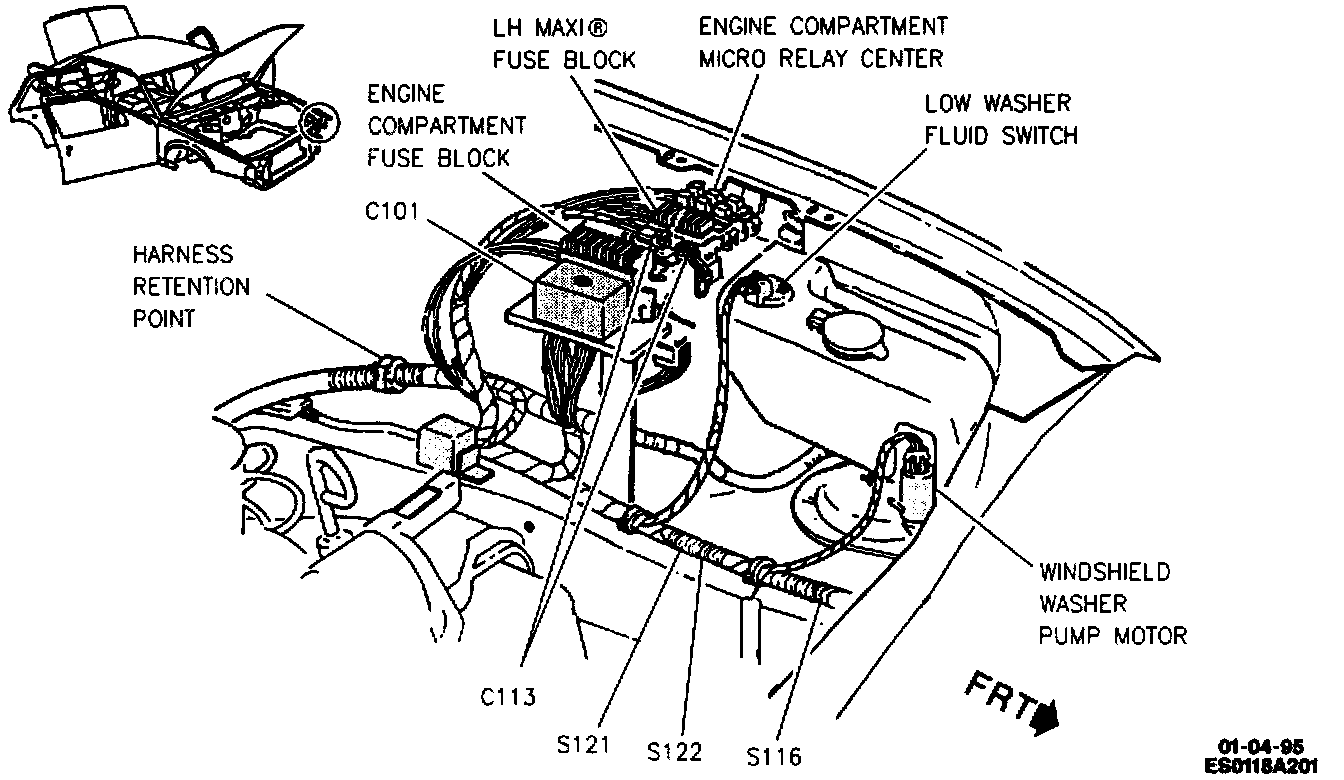

LH Front Of Engine Compartment (4.9 L Shown, Northstar Similar):
