RH Maxi Fuse Block - Fuses
>>
Maxi Fuse 6
Maxi Fuse 6

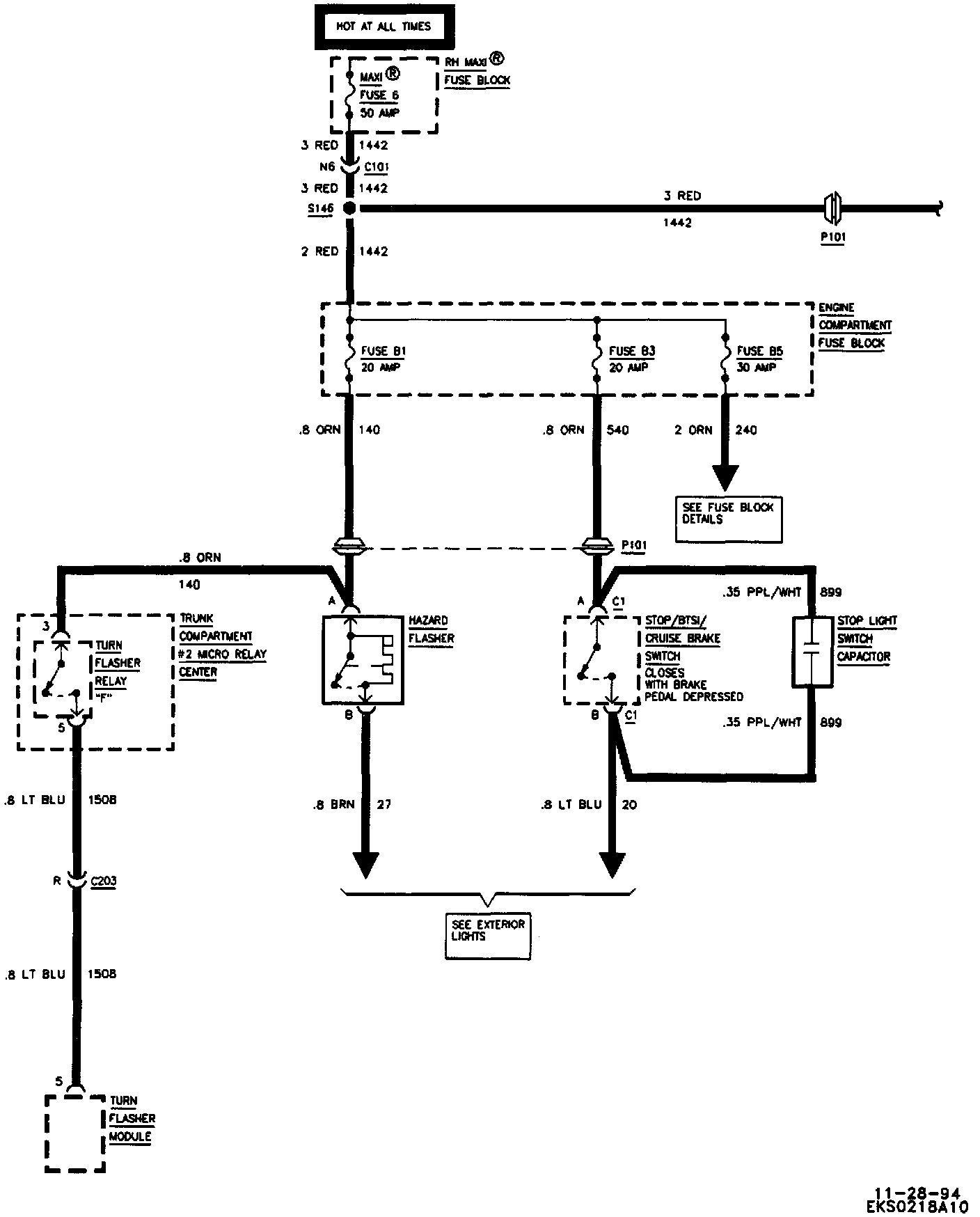

Power Distribution: RH Maxi(R) Fuse Block -Fuse 6 (Part 1 Of 2):

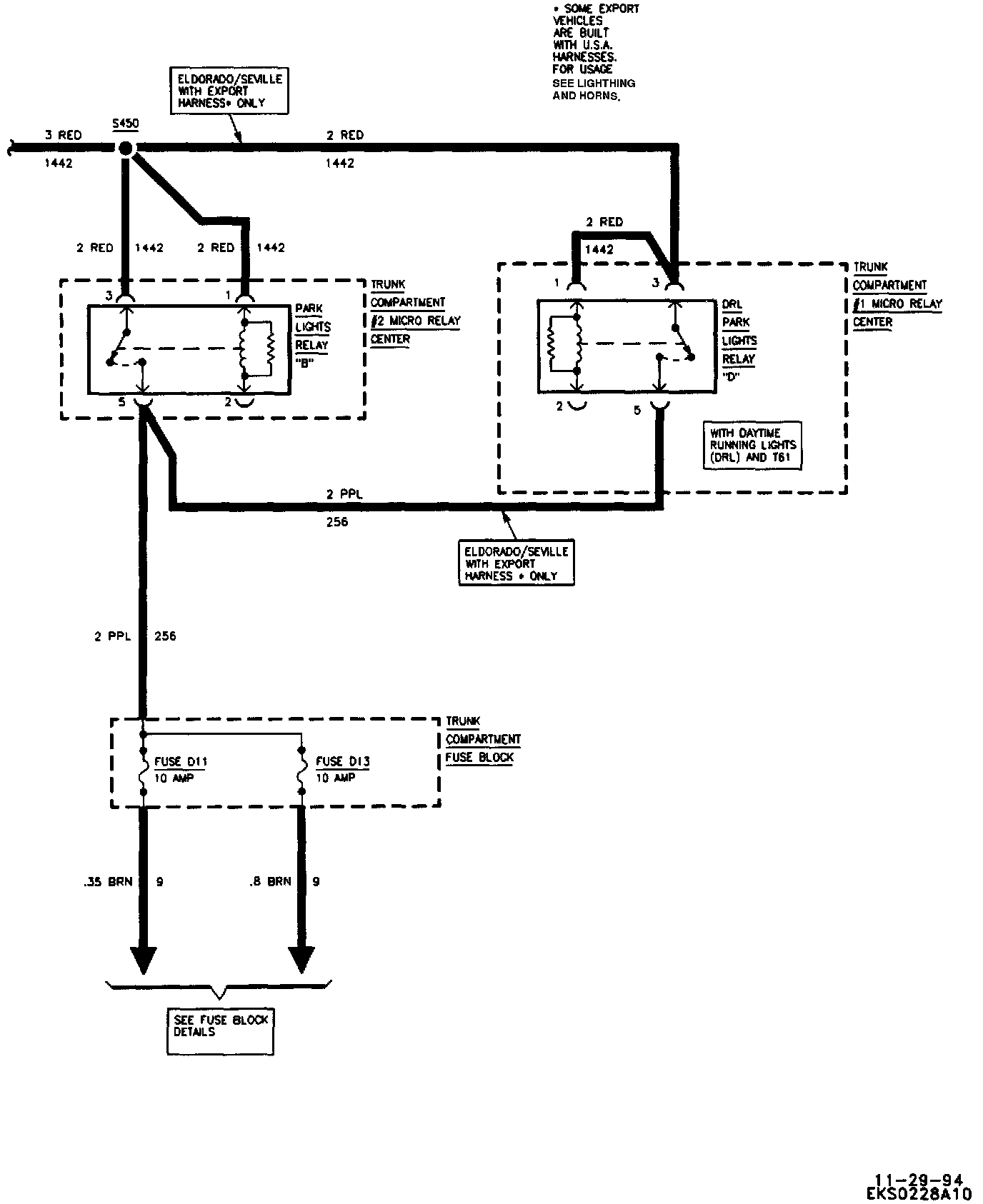

Power Distribution: RH Maxi(R) Fuse Block -Fuse 6 (Part 2 Of 2):
