Cadillac
>>
1995
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
EVAP System
EVAP System

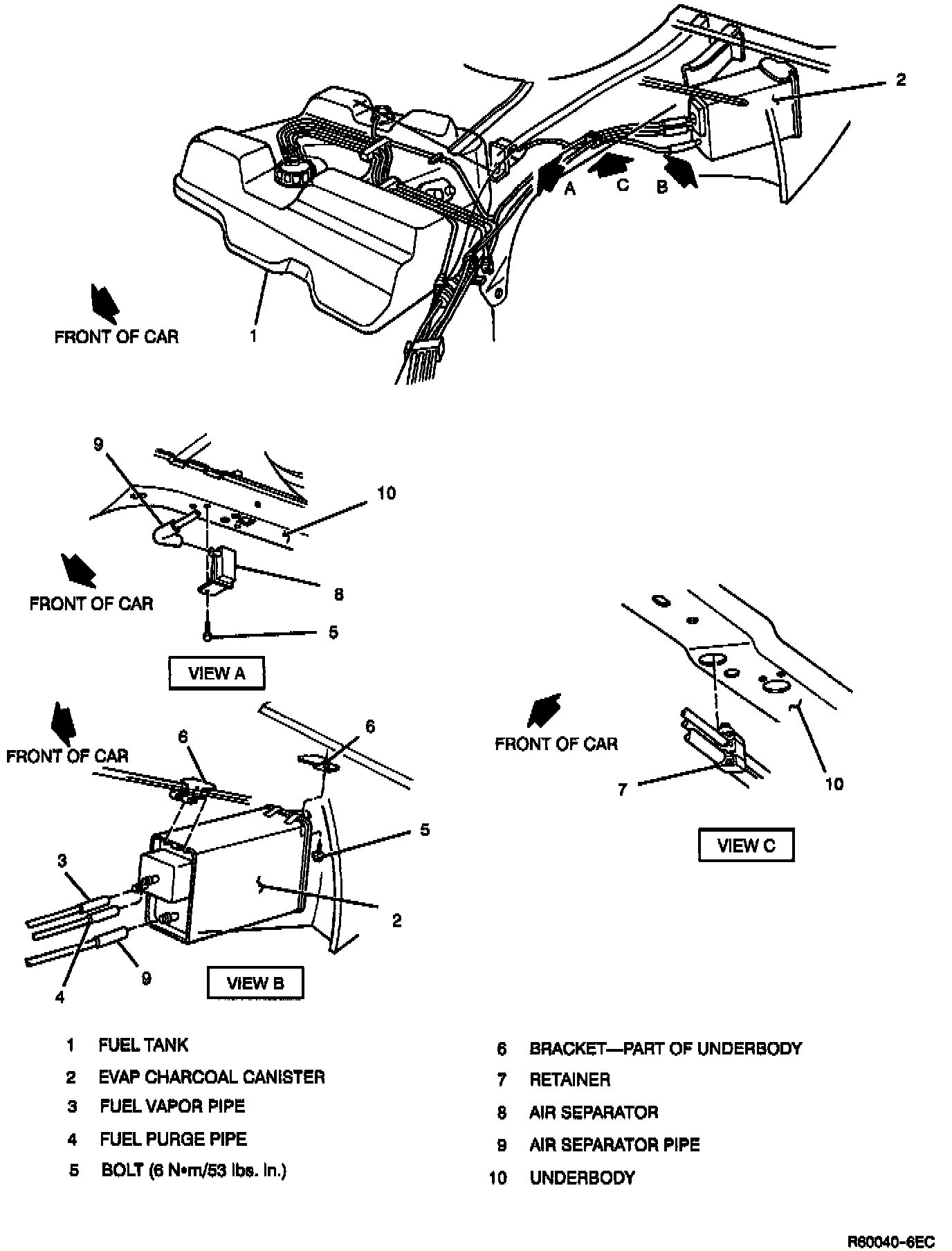

Evaporative Emissions Undercar Vapor Hose Routing:
