Home >> Cadillac >> 1995 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Charts >> Chart 3 One Horn Does Not Operate

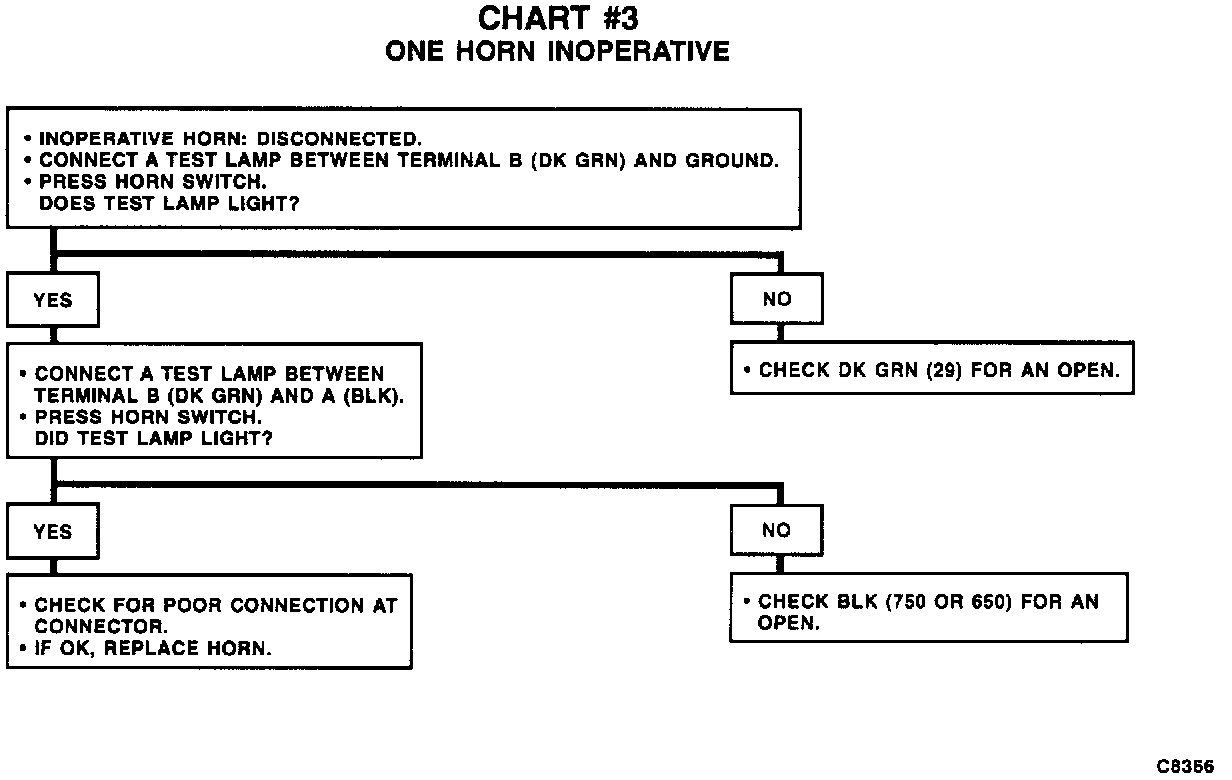

Chart 3 One Horn Does Not Operate

Chart #3 One Horn Inoperative:
