"Stop Engine - Low Oil Pressure" Message

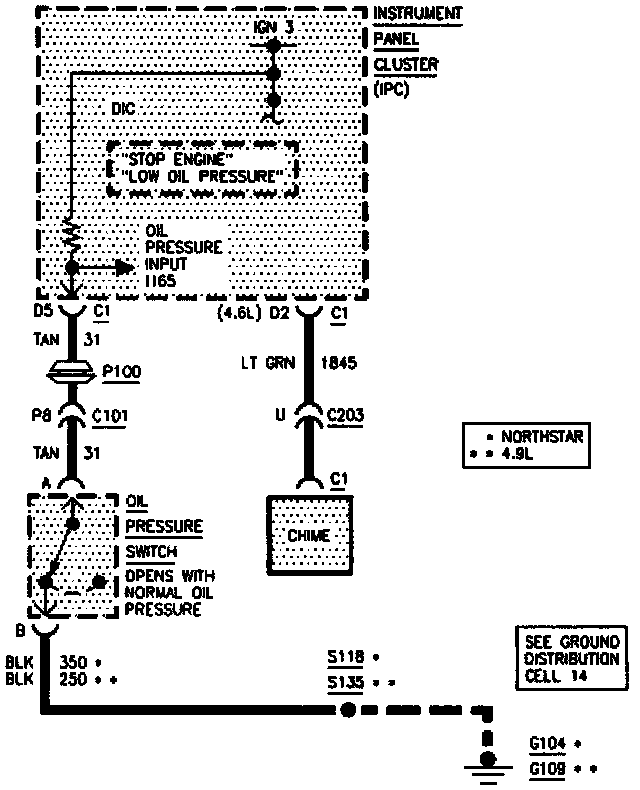

Wiring Diagram:

CIRCUIT DESCRIPTION

The IPC supplies and monitors voltage on pin "D5" to determine if the oil pressure switch is providing a ground. The oil pressure switch closes at oil pressure below 3 psi, indicating low oil pressure. Under normal engine running conditions the oil pressure switch will be open. If the IPC sees the oil pressure switch has closed (low oil pressure) for 2 seconds, and the PCM communicates that the engine is running, the IPC will display the "STOP ENGINE - OIL PRESSURE" message in the DIC.

NOTE: The IPC only knows if the engine is running by communicating with the PCM. If communications is lost (Code I034), the IPC will assume the engine is running. Therefore, this message will display at KEY ON / ENGINE OFF whenever code 1034 is current. If Code I034 is stored, diagnose this code first.

TEST CONDITION(S)

1. The engine has been running for more than 4 seconds.

FAILURE CONDITION(S)

1. Oil pressure input is grounded.

2. PCM indicates engine is running.

ACTION TAKEN

1. Display "STOP ENGINE - OIL PRESSURE" message on the IPC Driver Information Center.

2. Turn on ENGINE OIL telltale (Export/Canadian only).

3. Warning chime sounds.

CONDITION POSSIBLE CAUSES

Erroneous Message Short to ground in CKT 31 or shorted switch

No Message Open in CKT 31, open in switch, or open in CKT 350 (4.6L) 250 (4.9L)

Message Without Chime Open in CKT 1845 OR Faulty Chime Module OR Faulty IPC
