Glove Box Lamp and Trunk Lamp

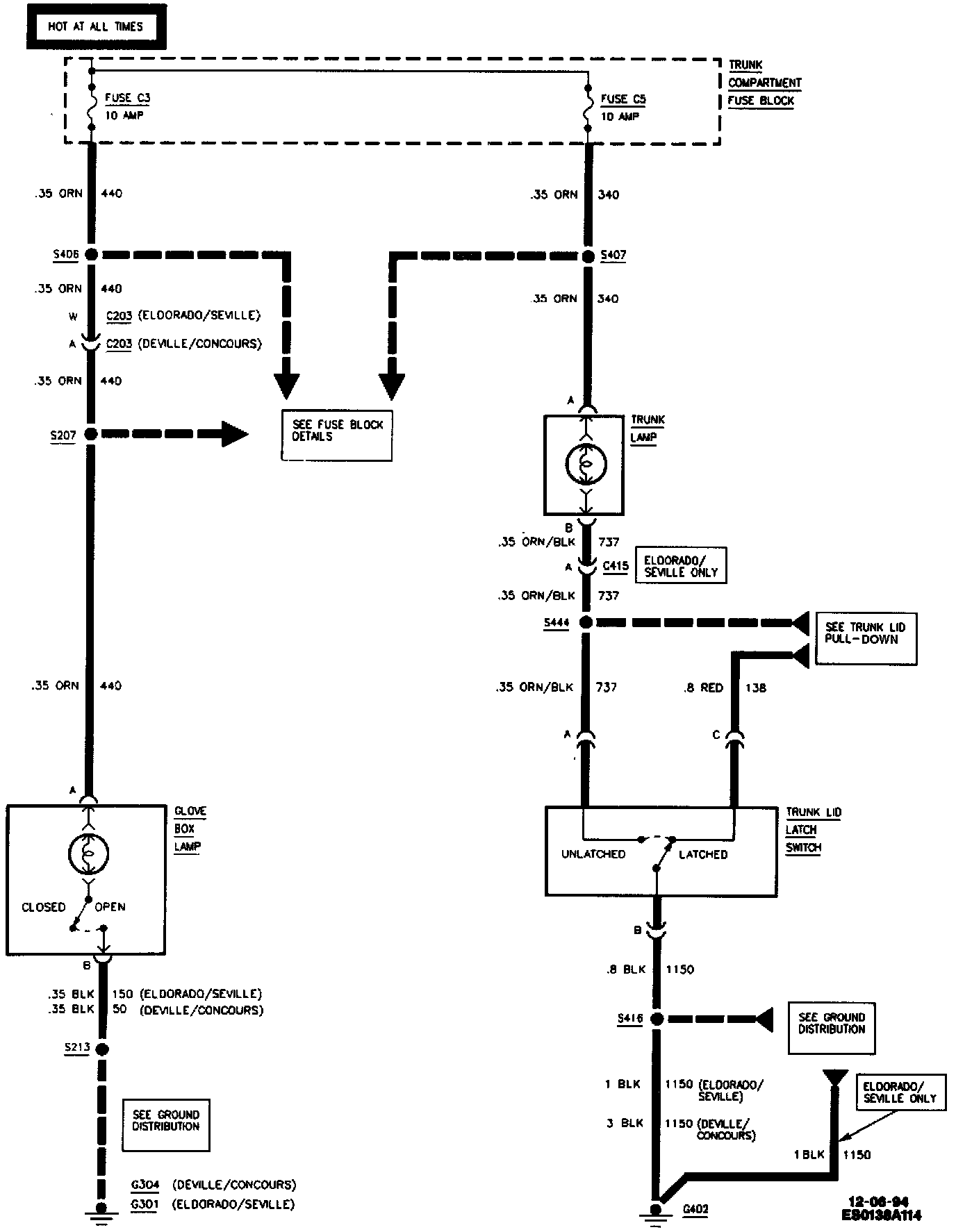

Interior Lamps With Illumination Entry: Glove Box Lamp And Trunk Lamp:
