Home >> Cadillac >> 1995 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> Interior Lamps With Illuminated Entry >> Cigarette Lighters

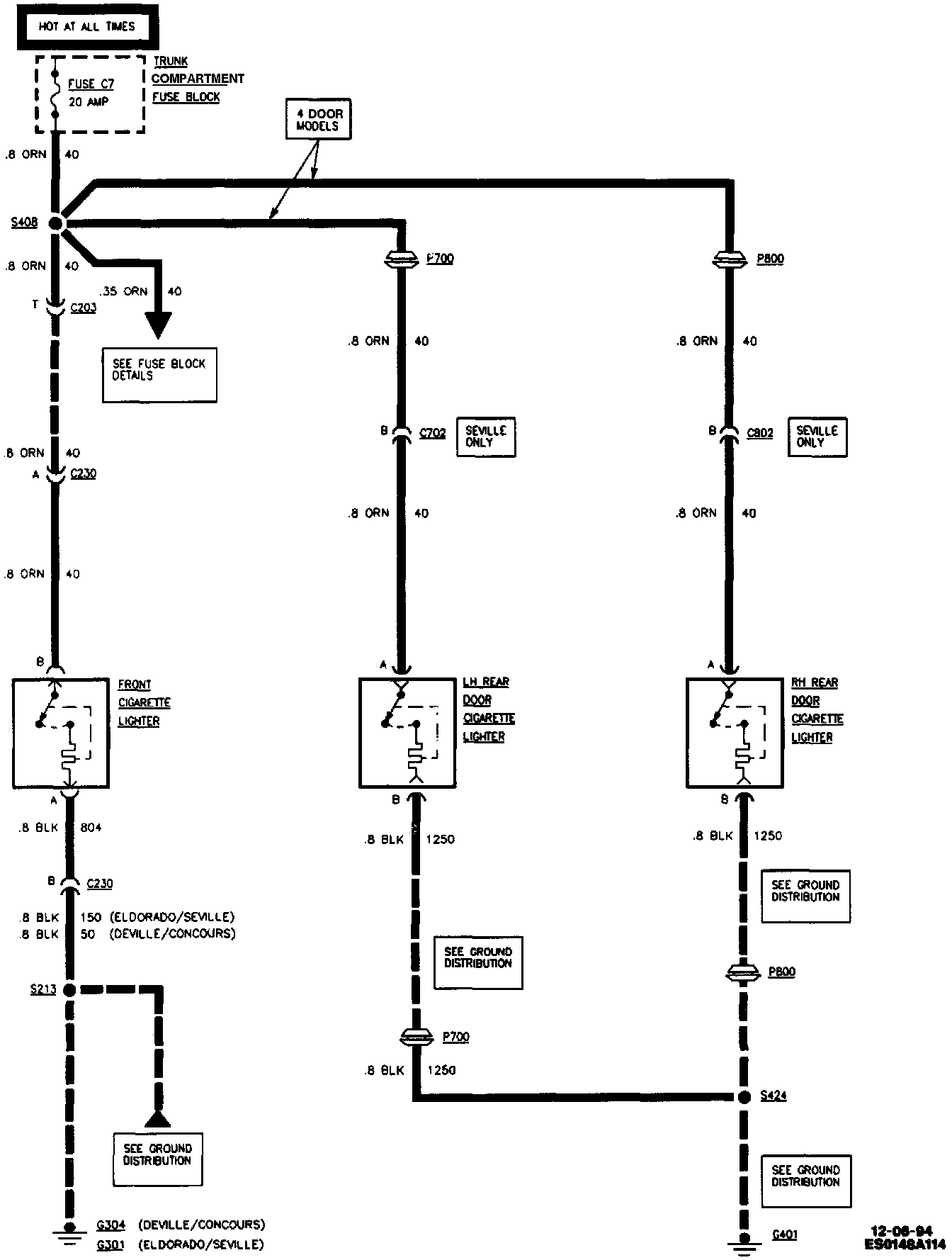

Cigarette Lighters

Interior Lamps With Illumination Entry: Cigartte Lighters:
