Home >> Cadillac >> 1995 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps >> U.S.A Harness >> Turn/Hazard/Stop Lamps

Turn/Hazard/Stop Lamps

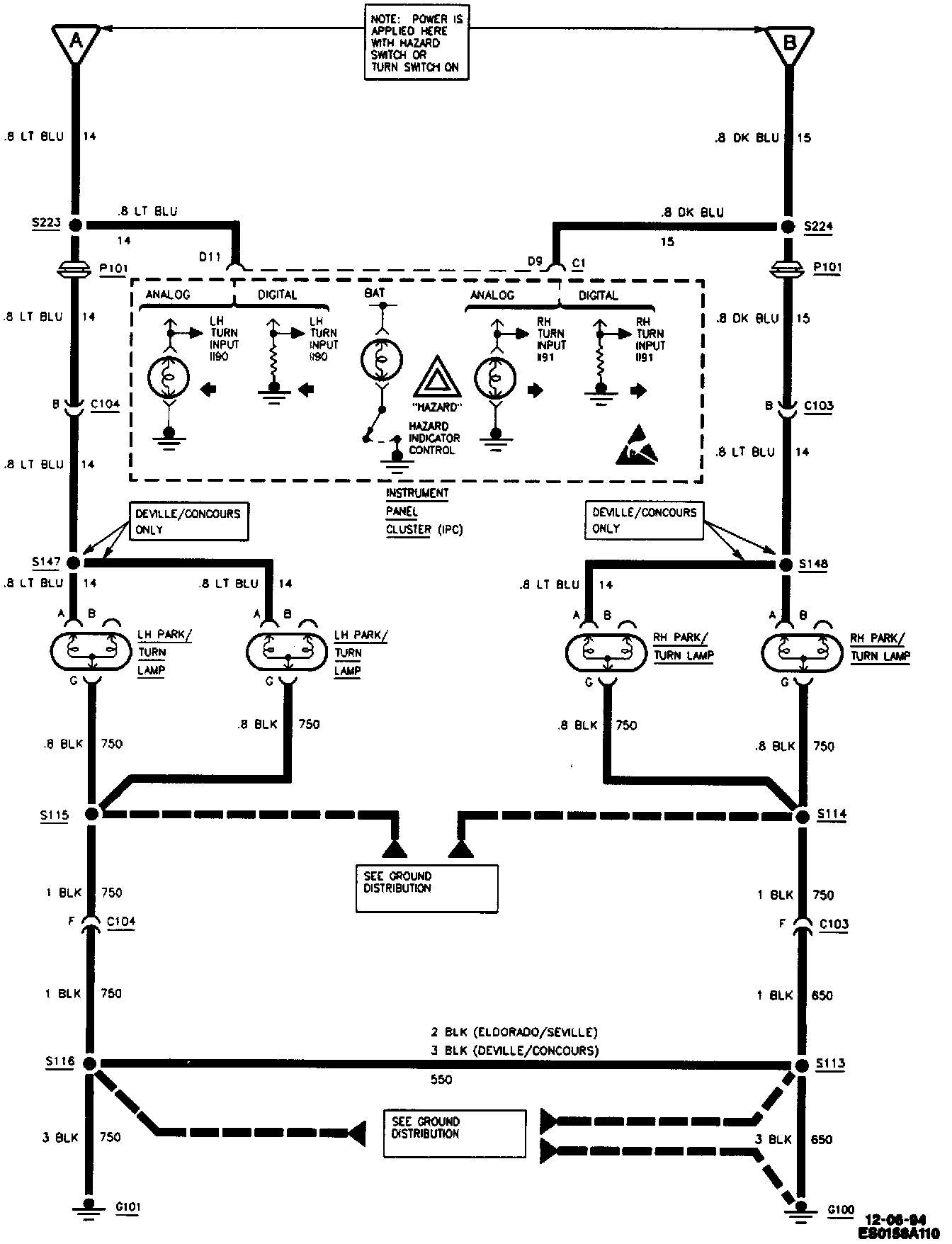

Exterior Lamps (U.S.A Harness): Turn/Hazard/Stop Lamps:

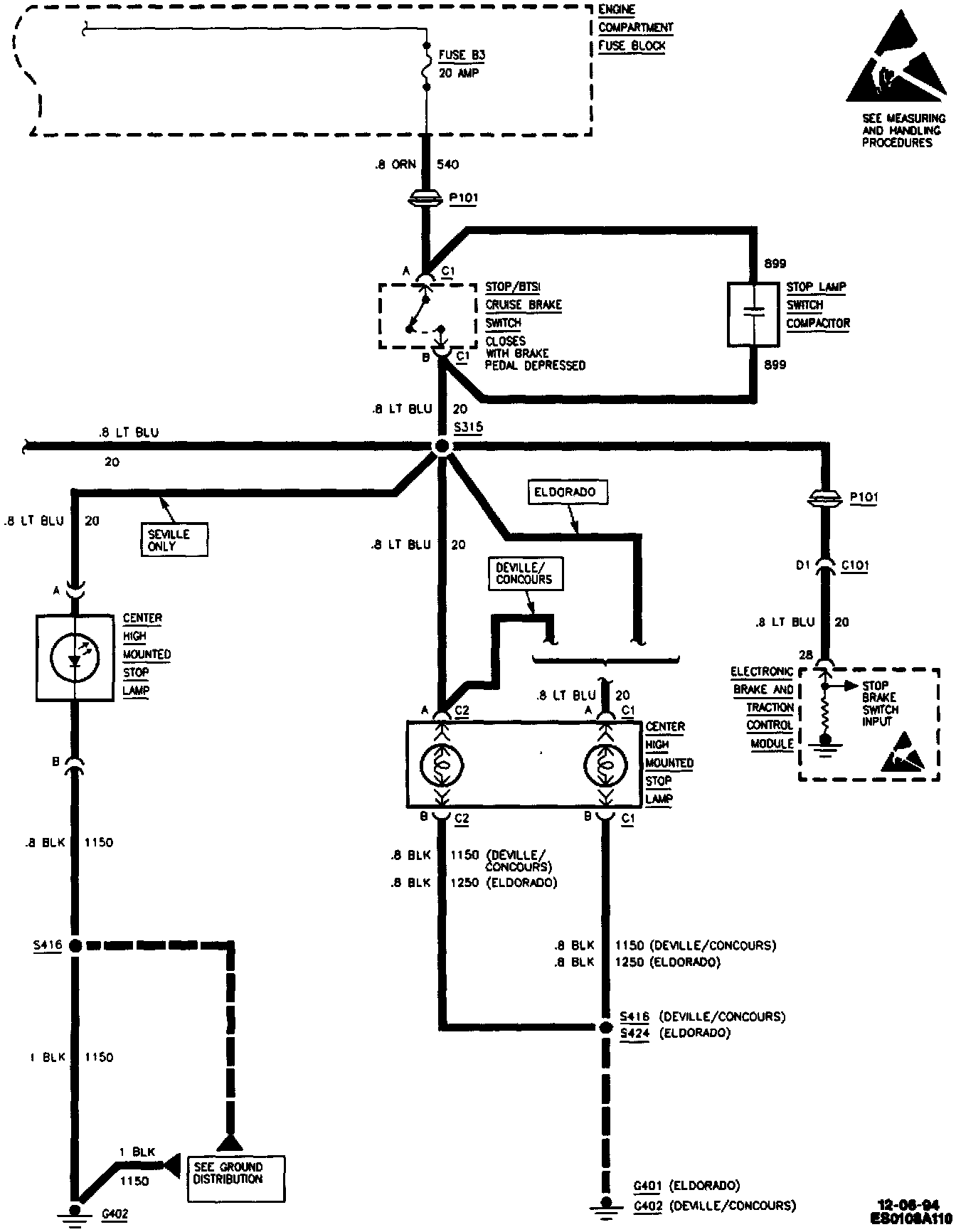

Exterior Lamps (U.S.A Harness): Turn/Hazard/Stop Lamps:




Exterior Lamps (U.S.A Harness): Turn/Hazard/Stop Lamps:




Exterior Lamps (U.S.A Harness): Turn/Hazard/Stop Lamps:




Exterior Lamps (U.S.A Harness): Turn/Hazard Lamps:
