Home >> Cadillac >> 1995 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Air Conditioning Programmer (ACP)

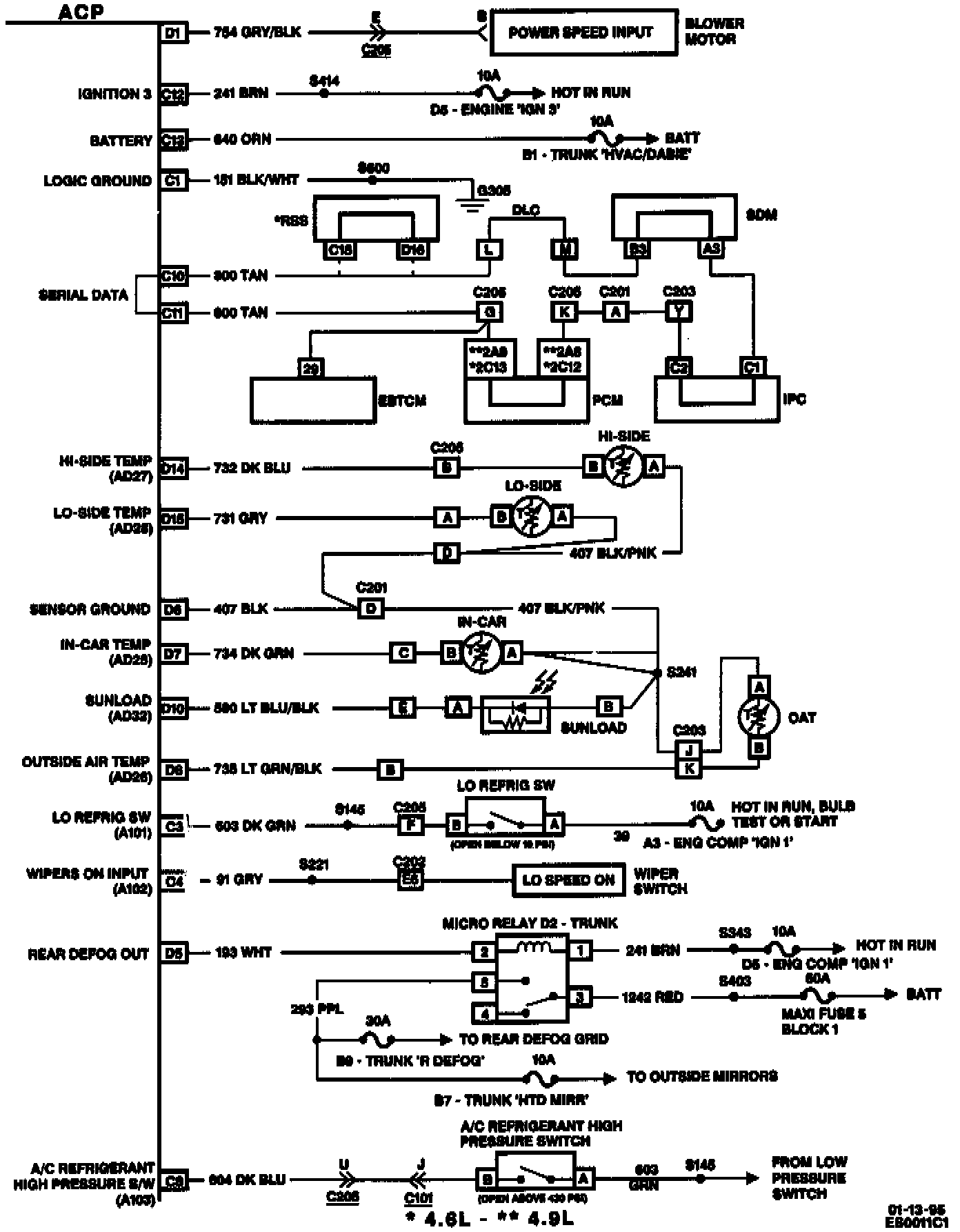

Air Conditioning Programmer (ACP)

Wiring Diagram:
