Home >> Cadillac >> 1995 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> PASS-Key II System

PASS-Key II System

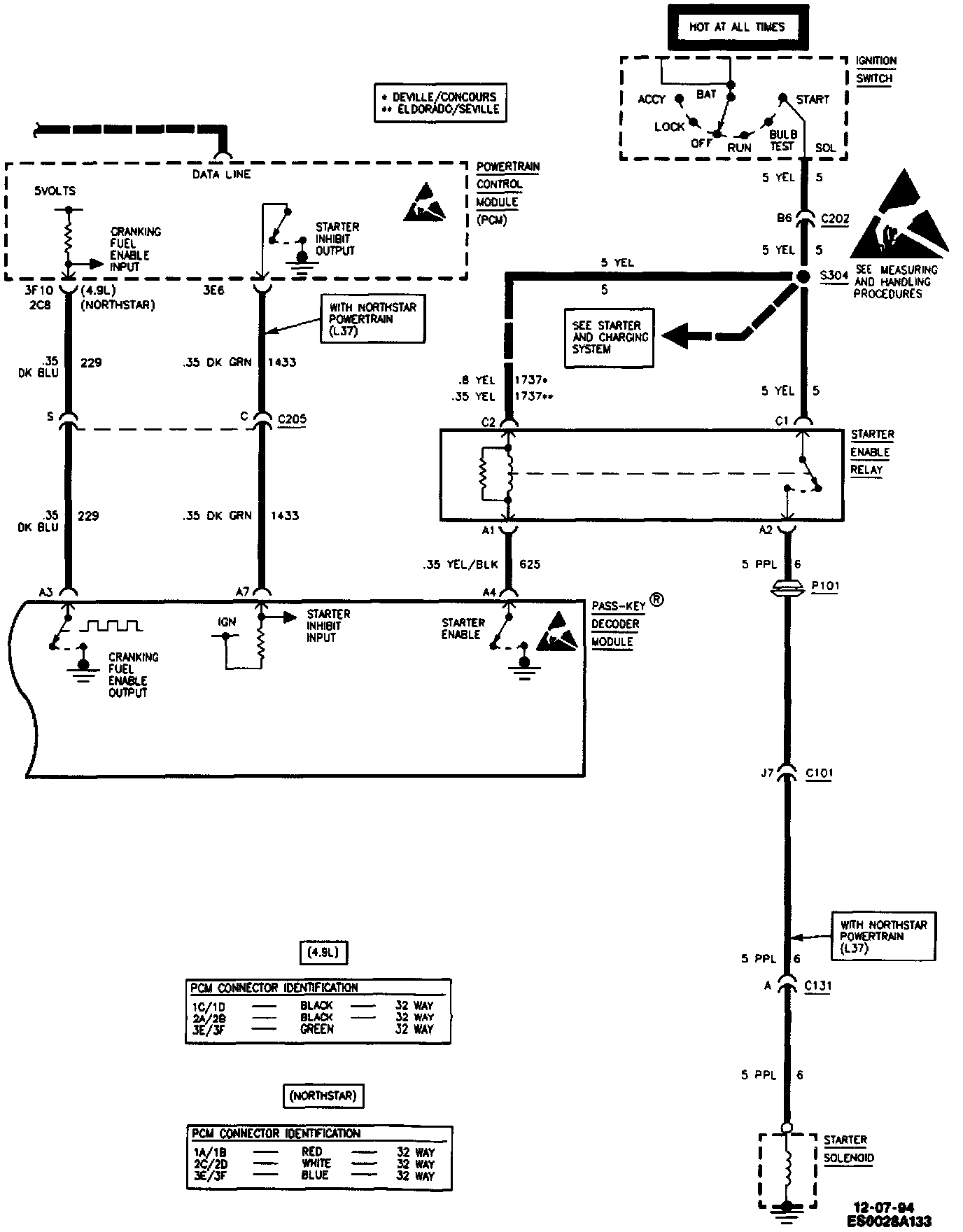

Pass-Key II (Part 1 Of 2):

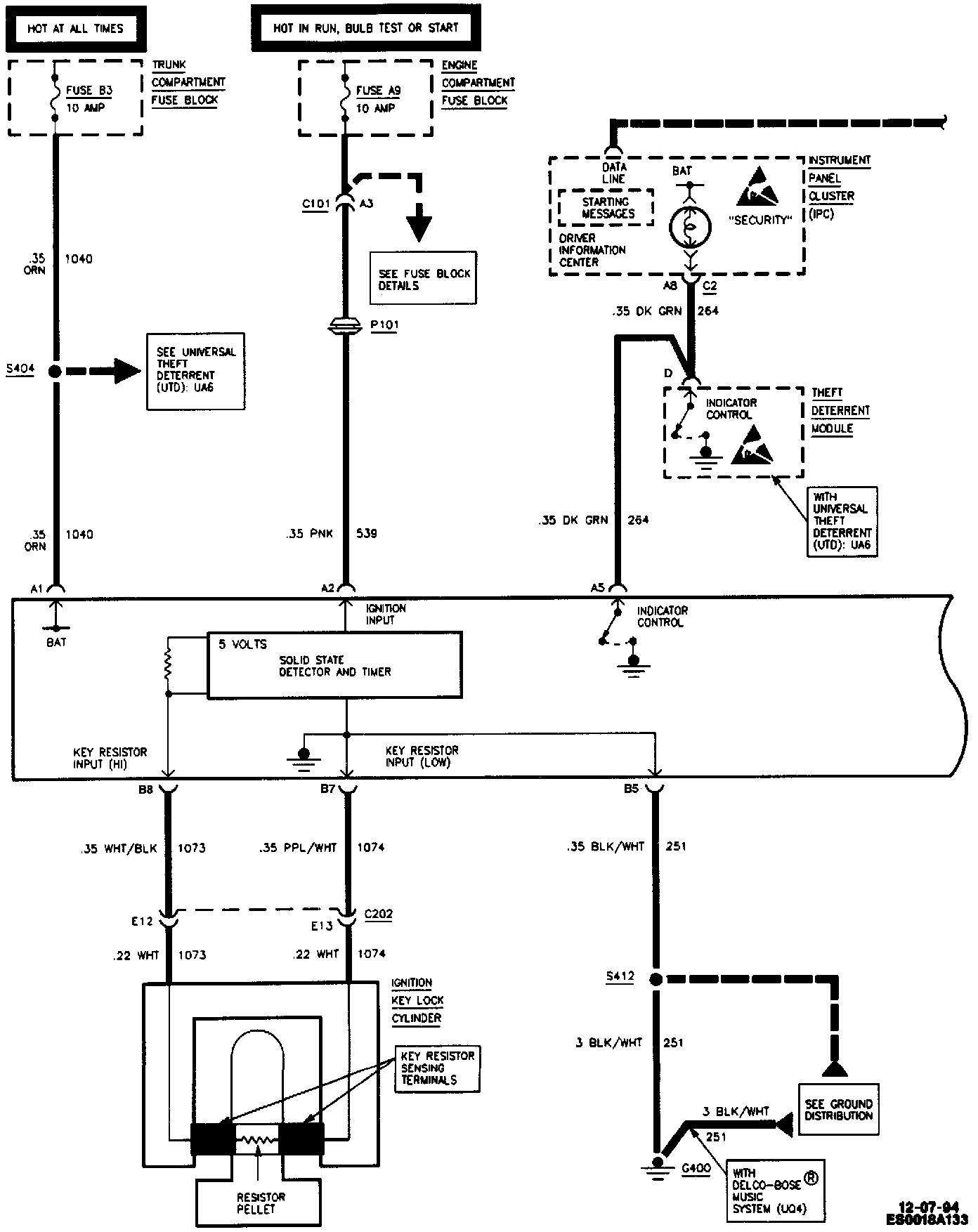

Pass-Key II (Part 2 Of 2):
