PCM Connector 3E/3F

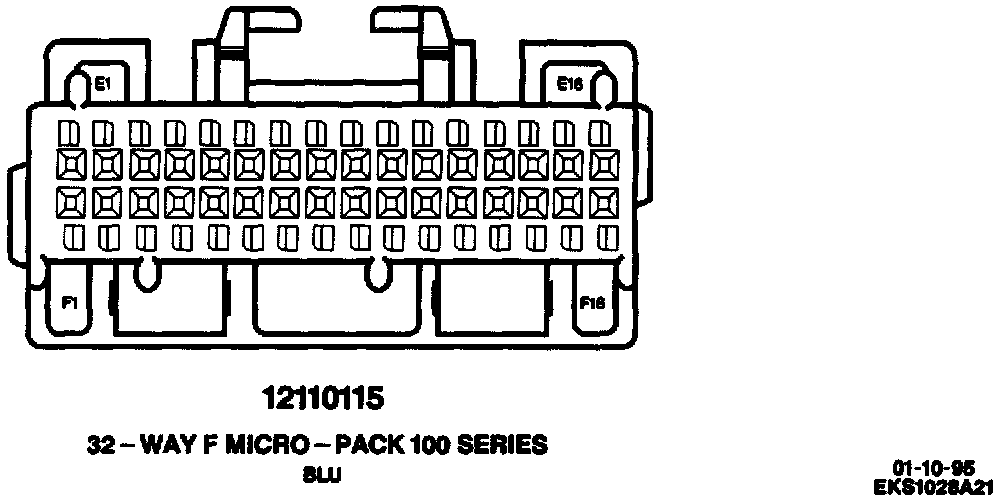

Harness Connector Faces: PCM -3E/3F:

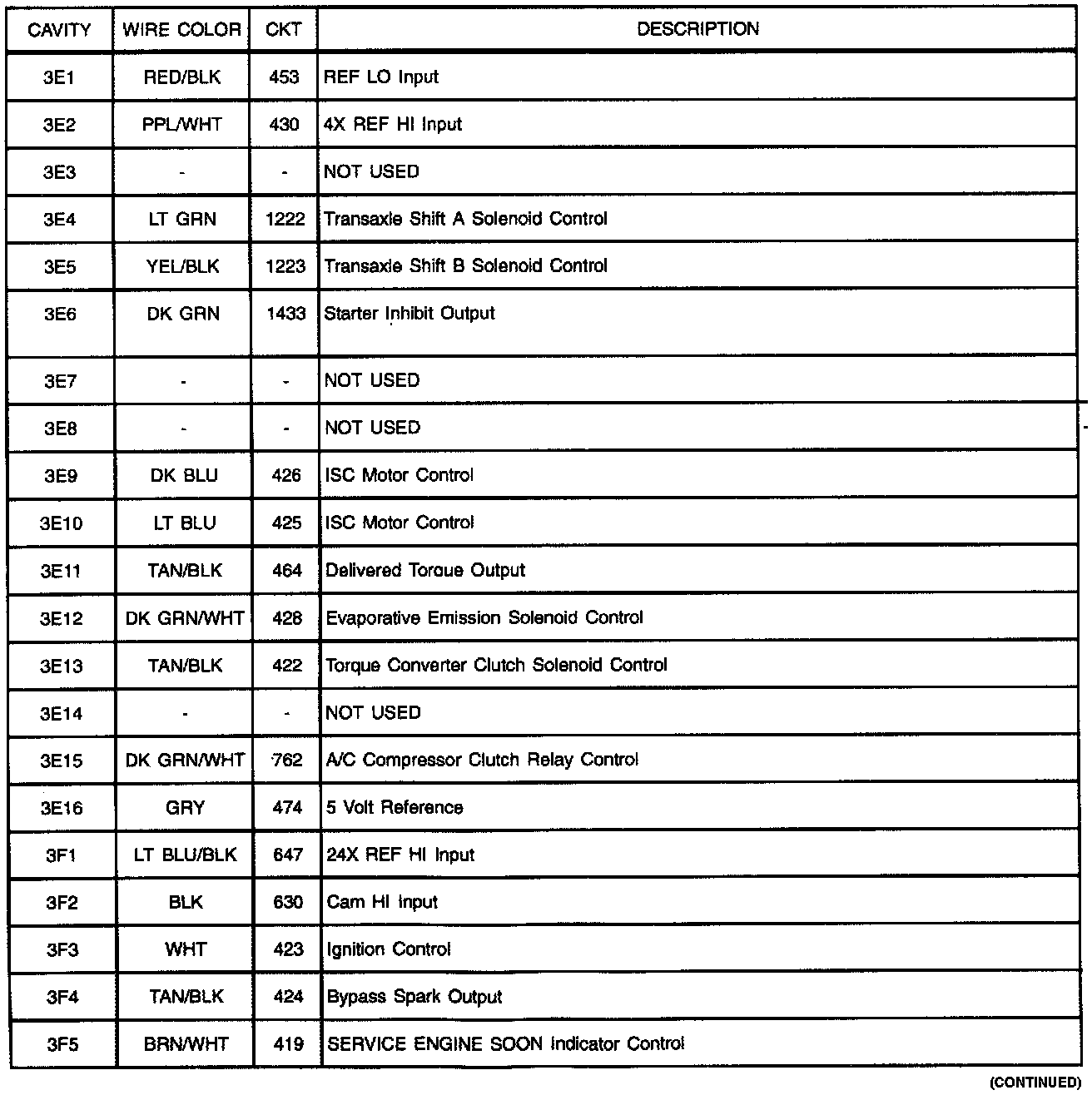

Harness Connector Faces: PCM -3E/3F (Part 1 Of 2):

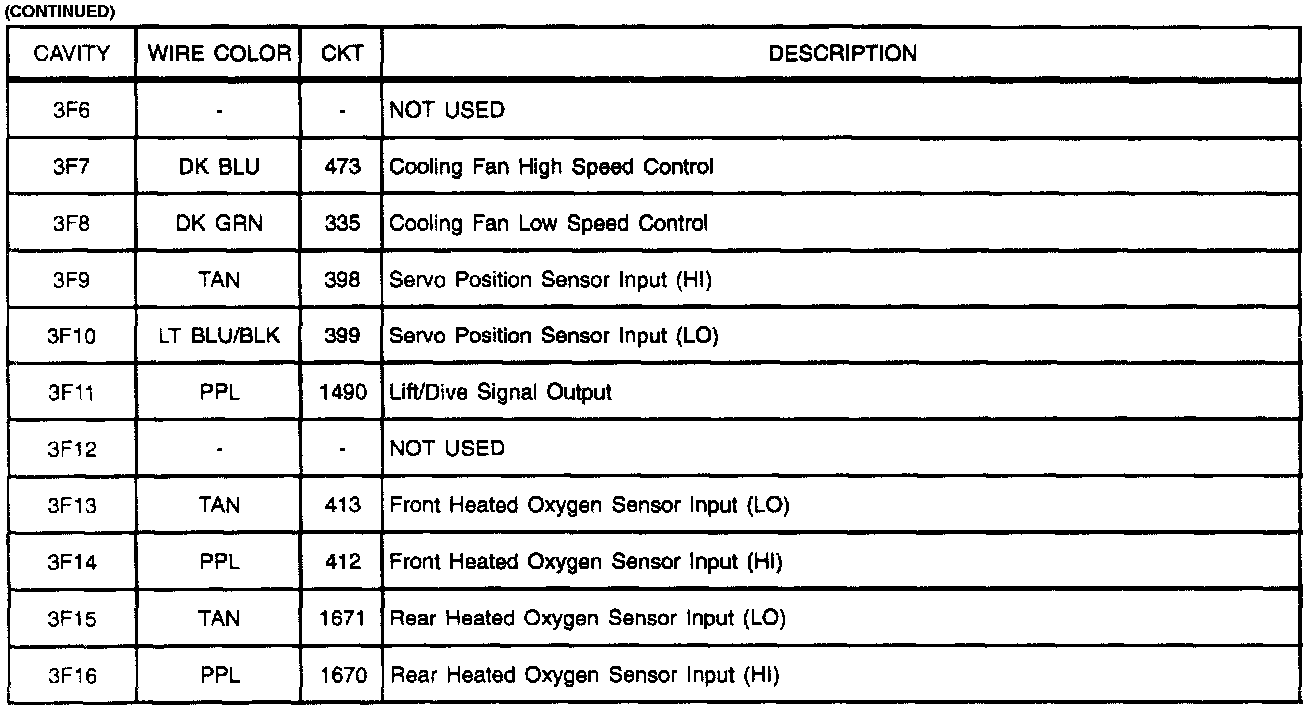

Harness Connector Faces: PCM -3E/3F (Part 2 Of 2):
