PCM Connector 2A/2B
PCM Connector 2A/2B

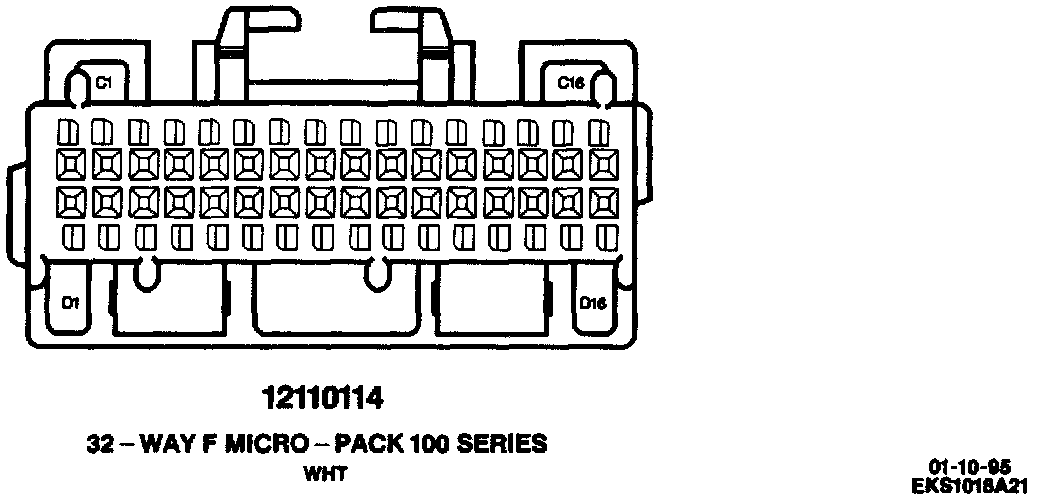

Harness Connector Faces: PCM -2C/2D:

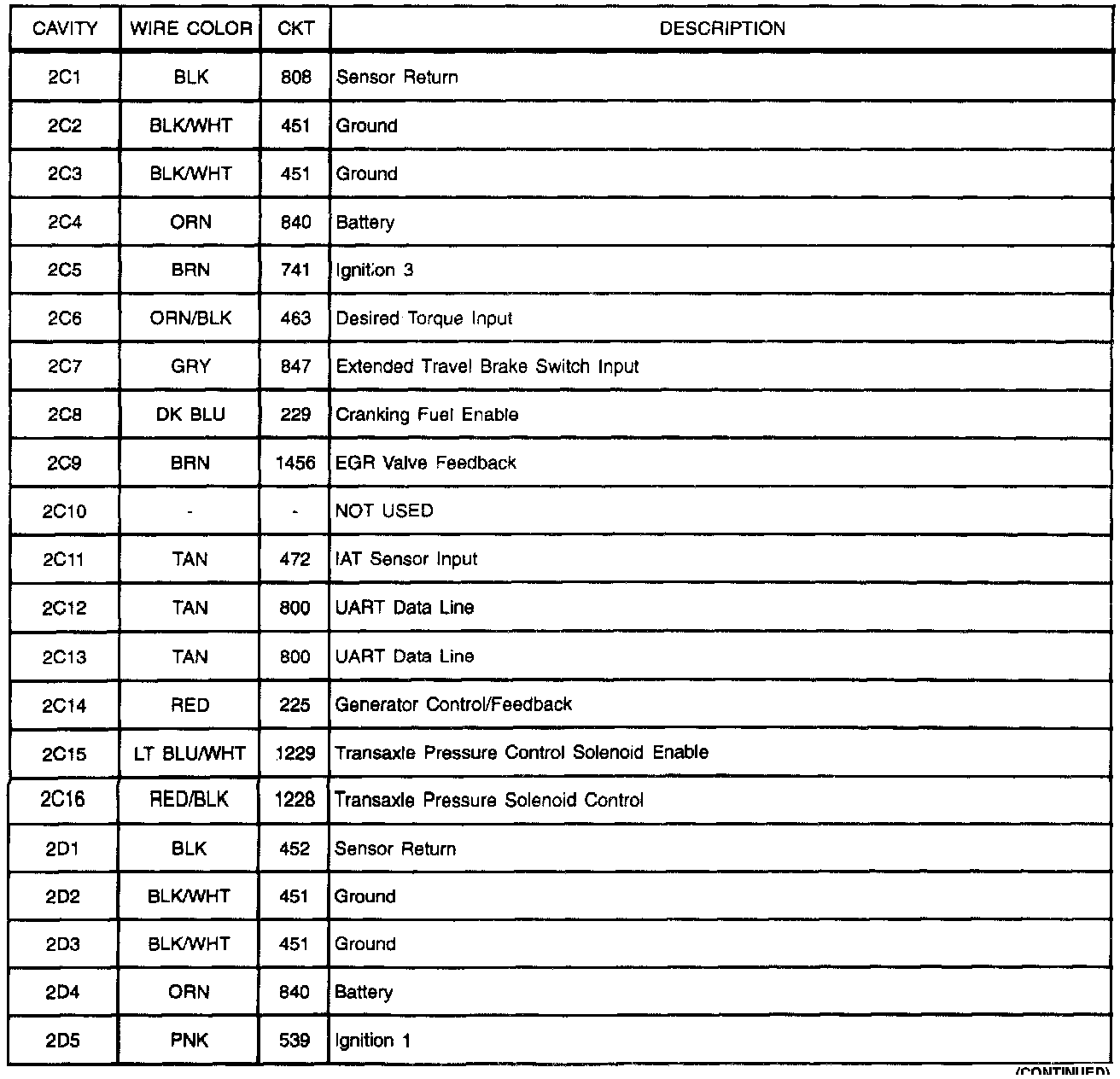

Harness Connector Faces: PCM -2C/2D (Part 1 Of 2):

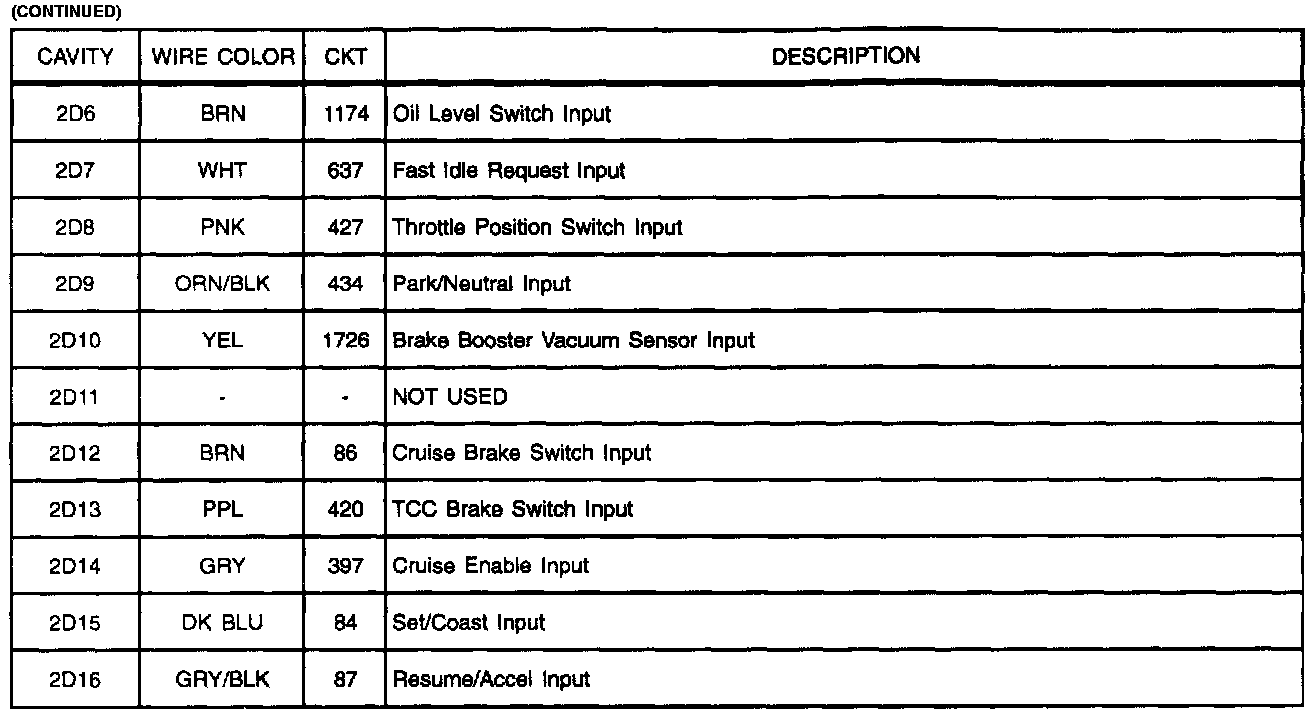

Harness Connector Faces: PCM -2C/2D (Part 2 Of 2):
