Home >> Cadillac >> 1995 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Functional Check >> Chart 1 (Start Here)

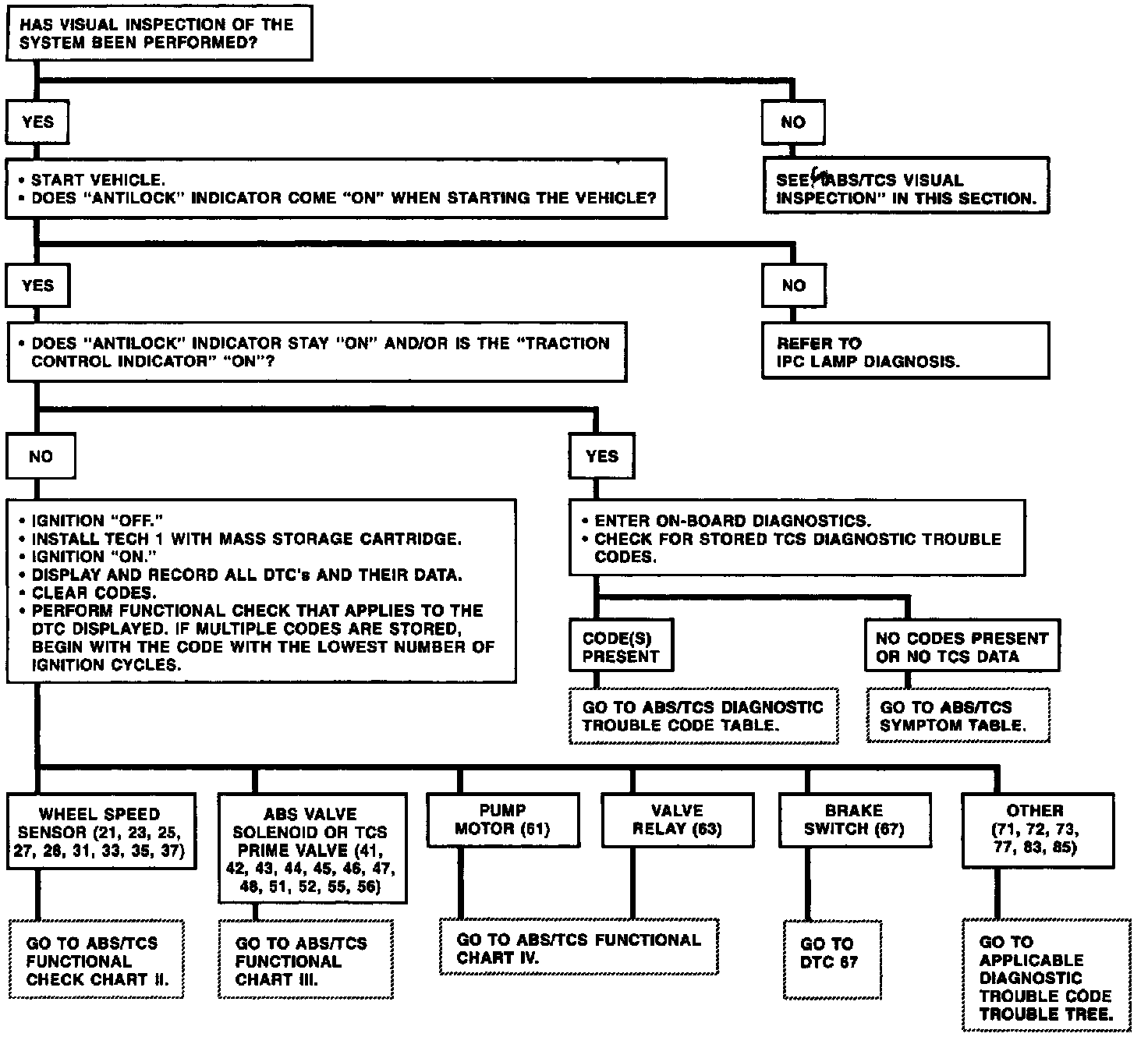

Chart 1 (Start Here)

ABS Functional Check 1:
