Home >> Cadillac >> 1995 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Chart C Memory Seat Module C3 Pinout

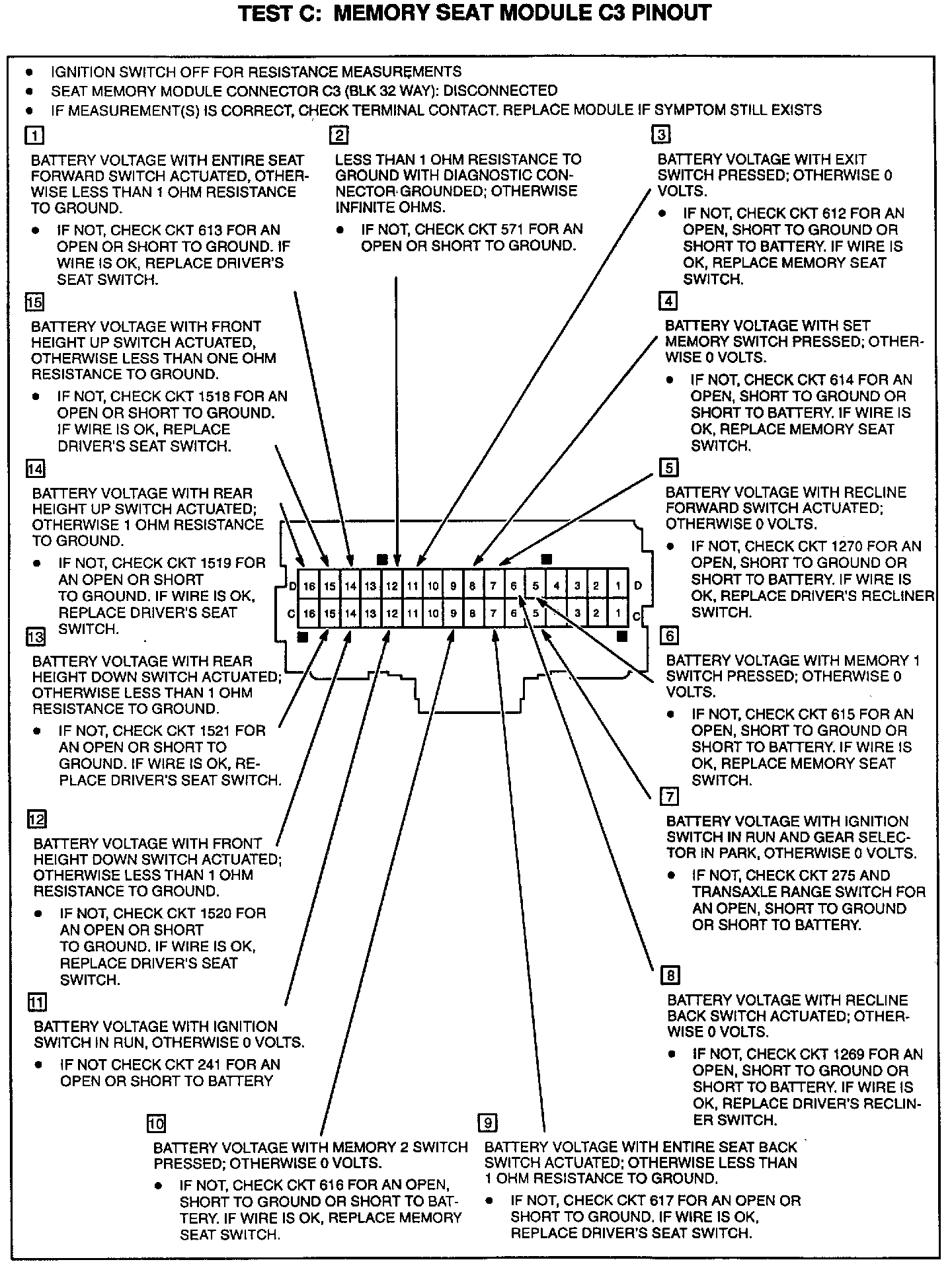

Chart C Memory Seat Module C3 Pinout

Test C Memory Seat Module C3 Pinout:
