Chart 4 Lock Function Inoperative From Door Lock Switches
Chart 4 Lock Function Inoperative From Door Lock Switches

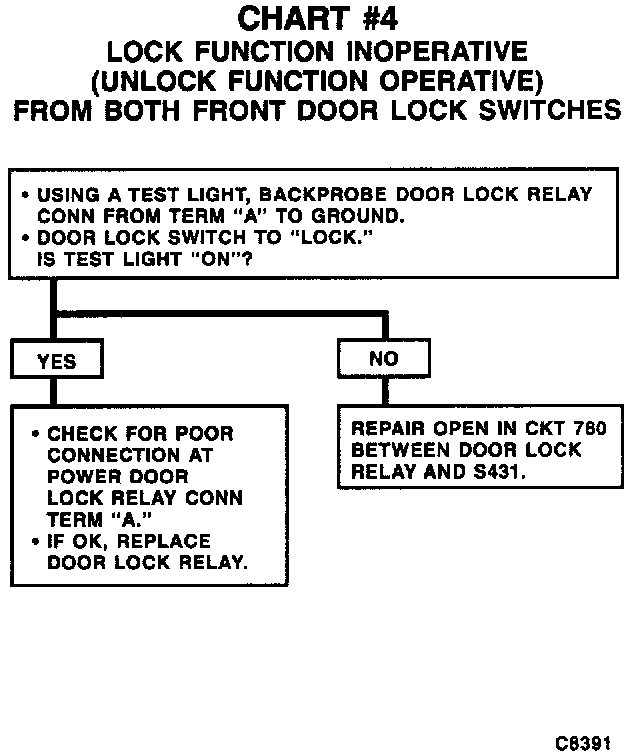

Chart #4 Lock Function Inoperative From Both Front Door Lock Switches:
