PASS-Key II

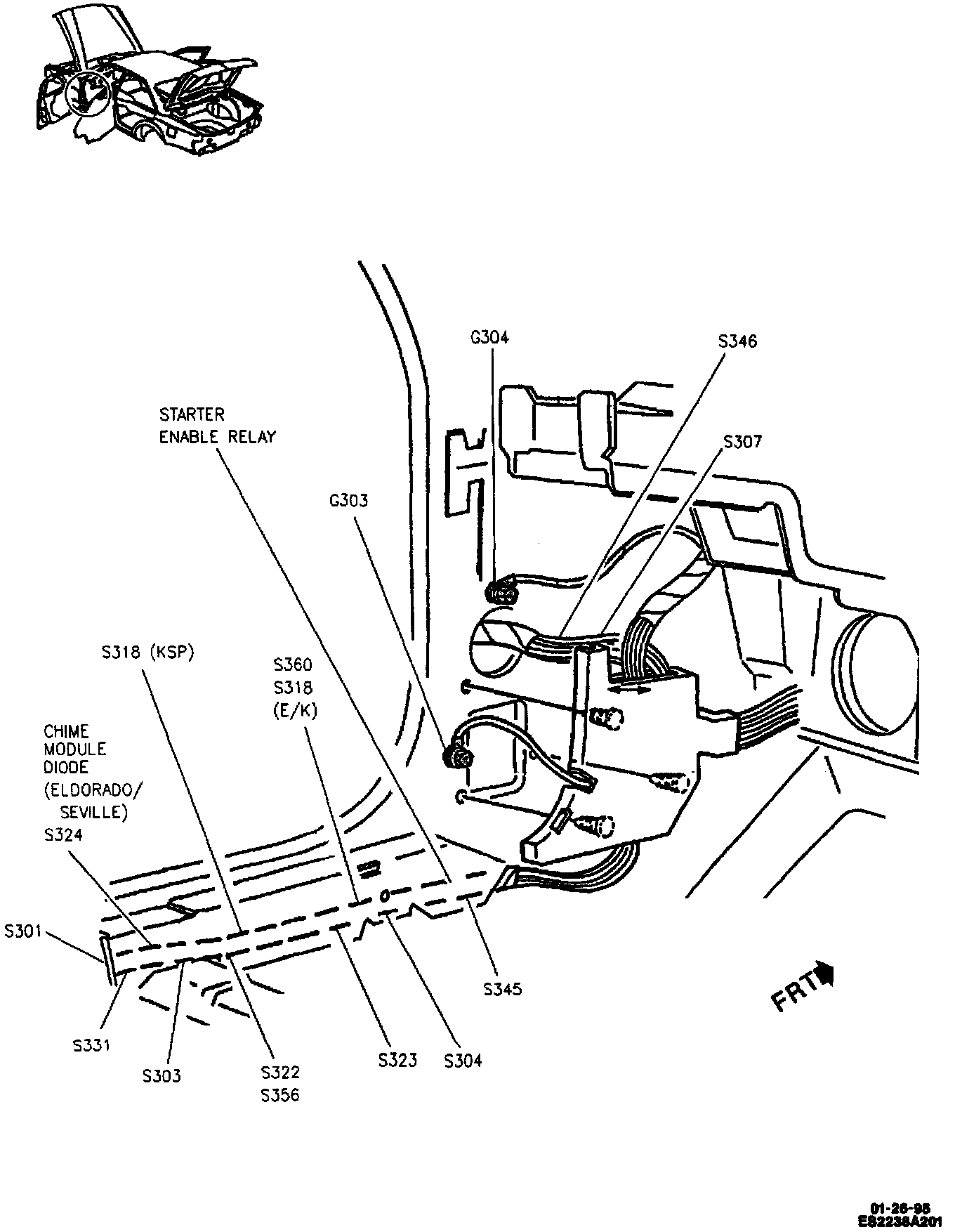

STARTER ENABLE RELAY

LH Front Rocker:

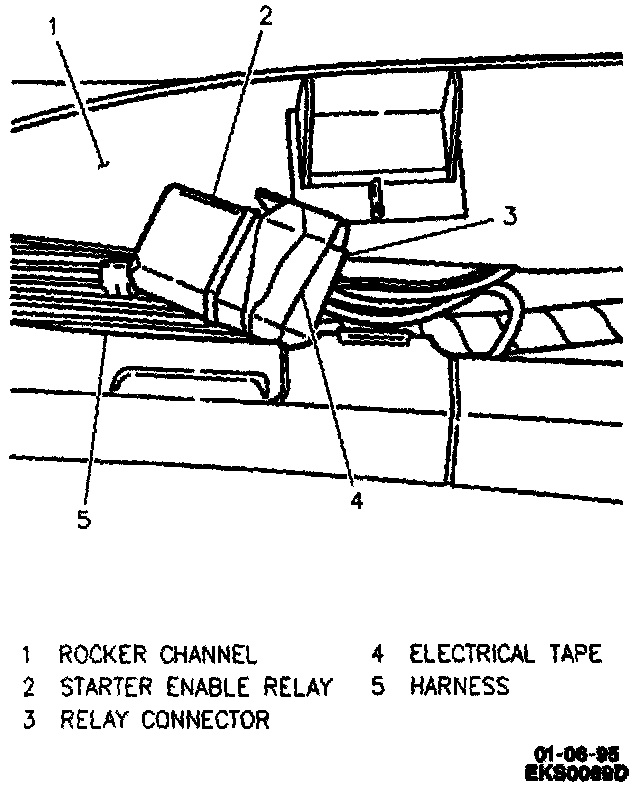

The Starter Enable Relay is taped to the body main harness, 9 inches rearward of front edge of LH rocker panel channel.
