CODE S080 STEERING SENSOR INPUT FAULT















TEST CONDITIONS:
The RSS control module monitors the steering sensor data for a sensor out-of-range condition. The signal is out-of-range if it is under voltage (0.6 V) or over voltage (4.75 V).

FAULT CONDITIONS:
If the signal is out-of-range for more than 10 seconds at a vehicle speed greater than 50MPH, the code is set.

ACTION TAKEN:
Set code, turn on "SERVICE RIDE CONTROL" message, and set steering wheel angle to 0 degrees.

DESCRIPTION:
The RSS control module monitors the steering sensor data for a sensor out-of-range condition. If the signal is under voltage (0.6 V) or over voltage (4.75 V) for more than 10 seconds at a vehicle speed of 50 MPH, the code is set.

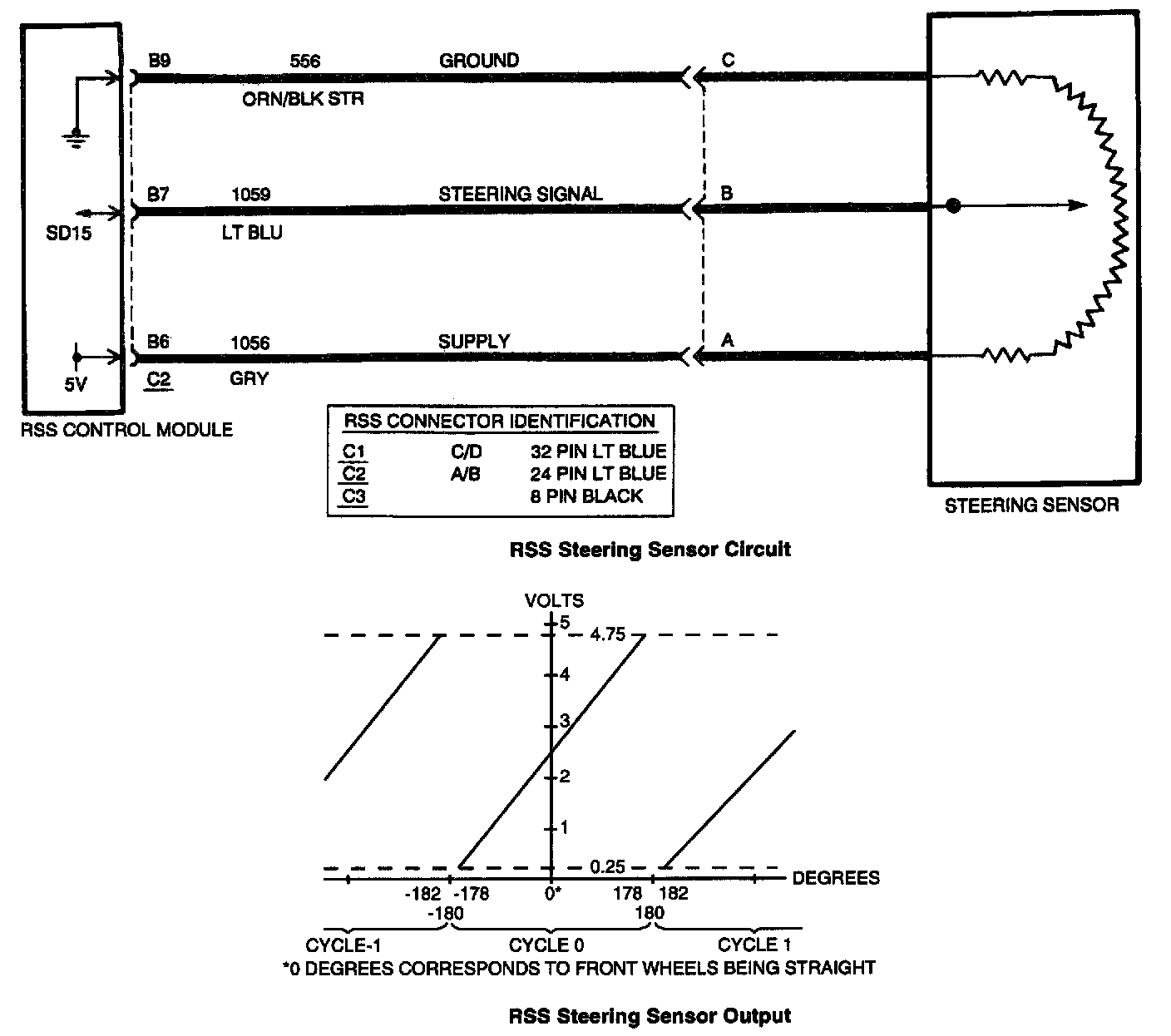

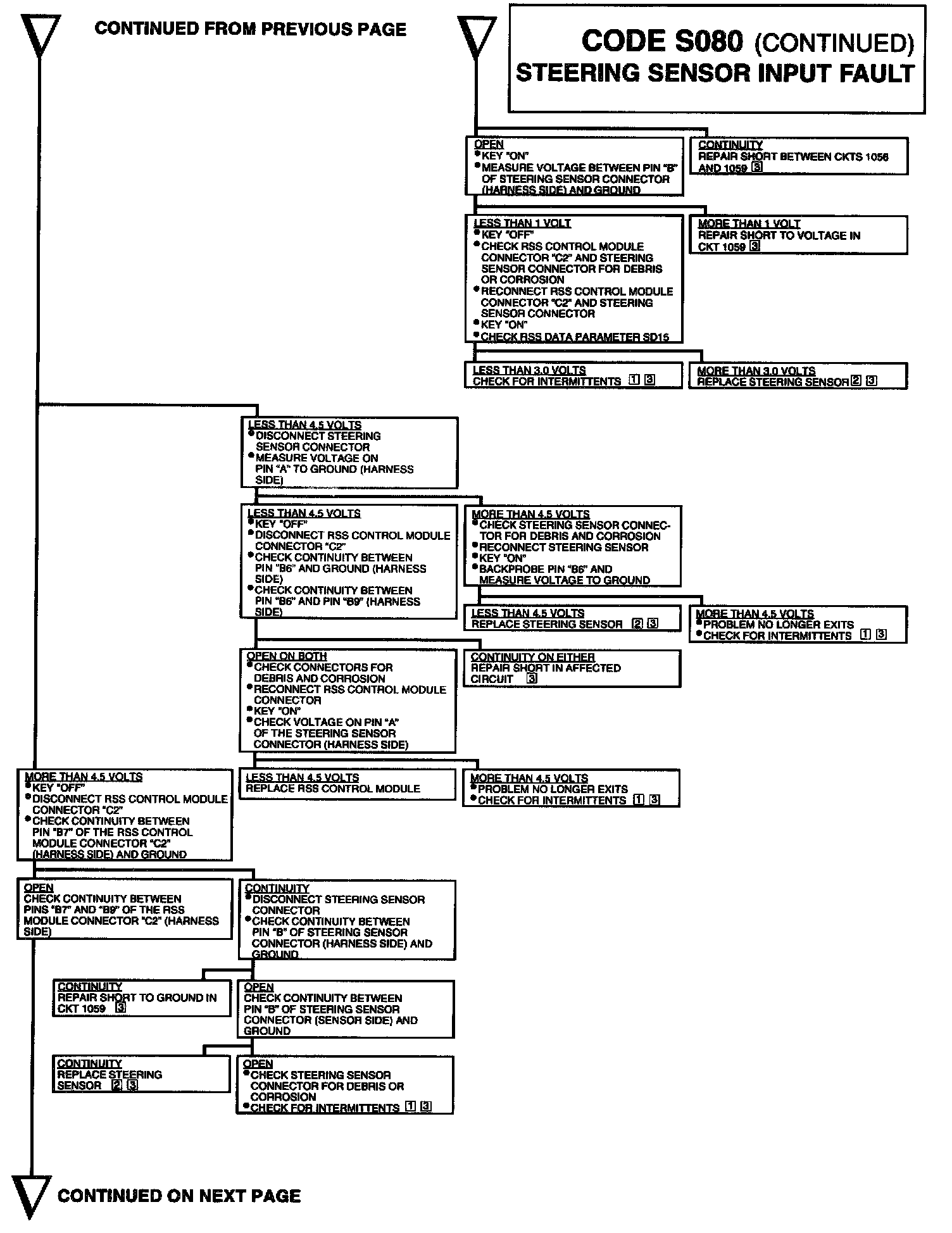

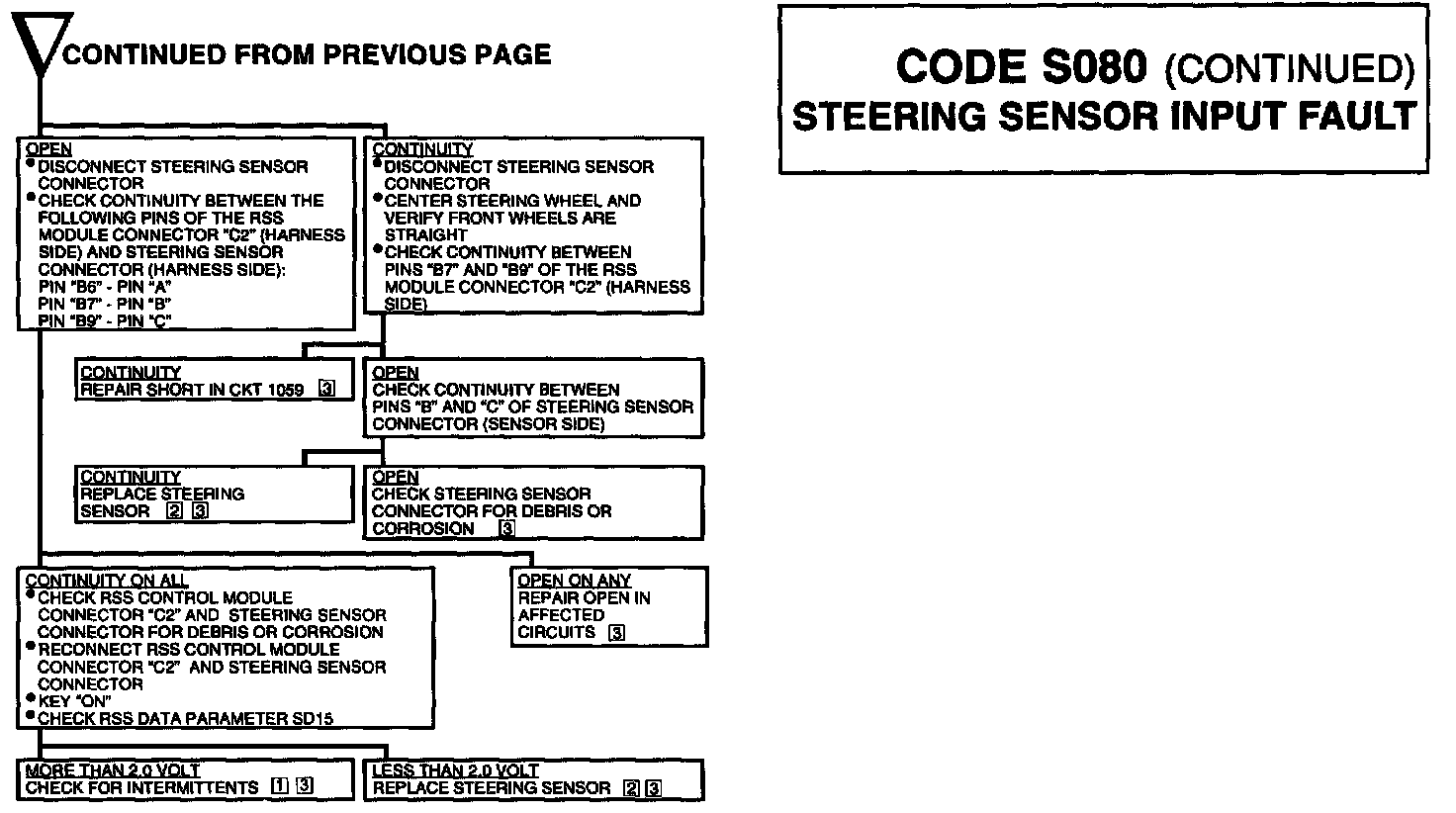

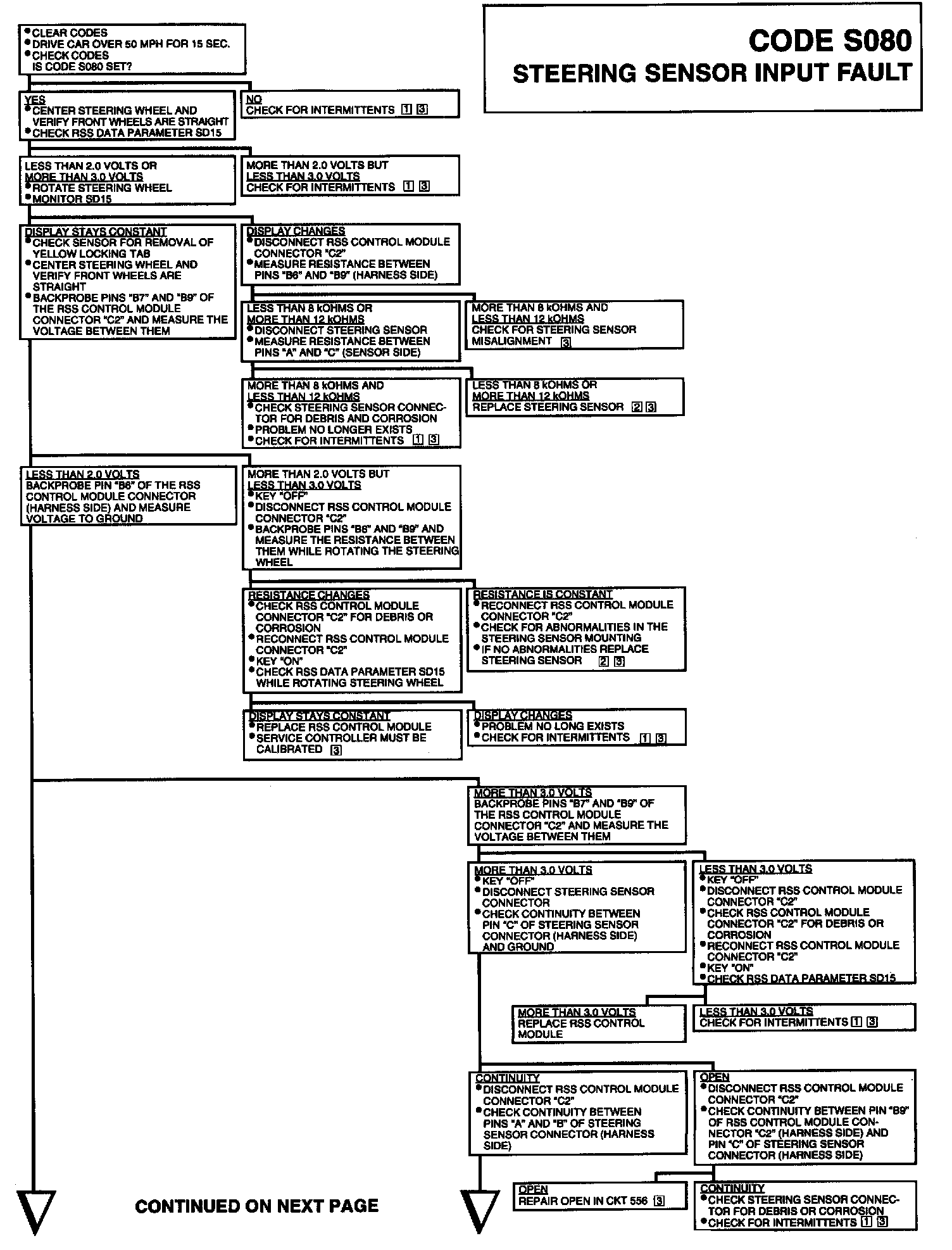

NOTES ON FAULT TREE:
[1] Refer to notes on intermittents.
[2] After replacing the steering sensor, always perform the steering sensor trim position adjustment.
[3] Refer to clearing codes.

IMPORTANT:
^ DO NOT BACKPROBE SENSORS, DAMPERS, OR ELC / RSS CONNECTORS.
^ WHEN ALL DIAGNOSIS AND REPAIRS ARE COMPLETE, CLEAR CODES AND VERIFY OPERATION.
