Home >> Cadillac >> 1994 >> Fleetwood V8-5.7L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection

Information Bus: Testing and Inspection

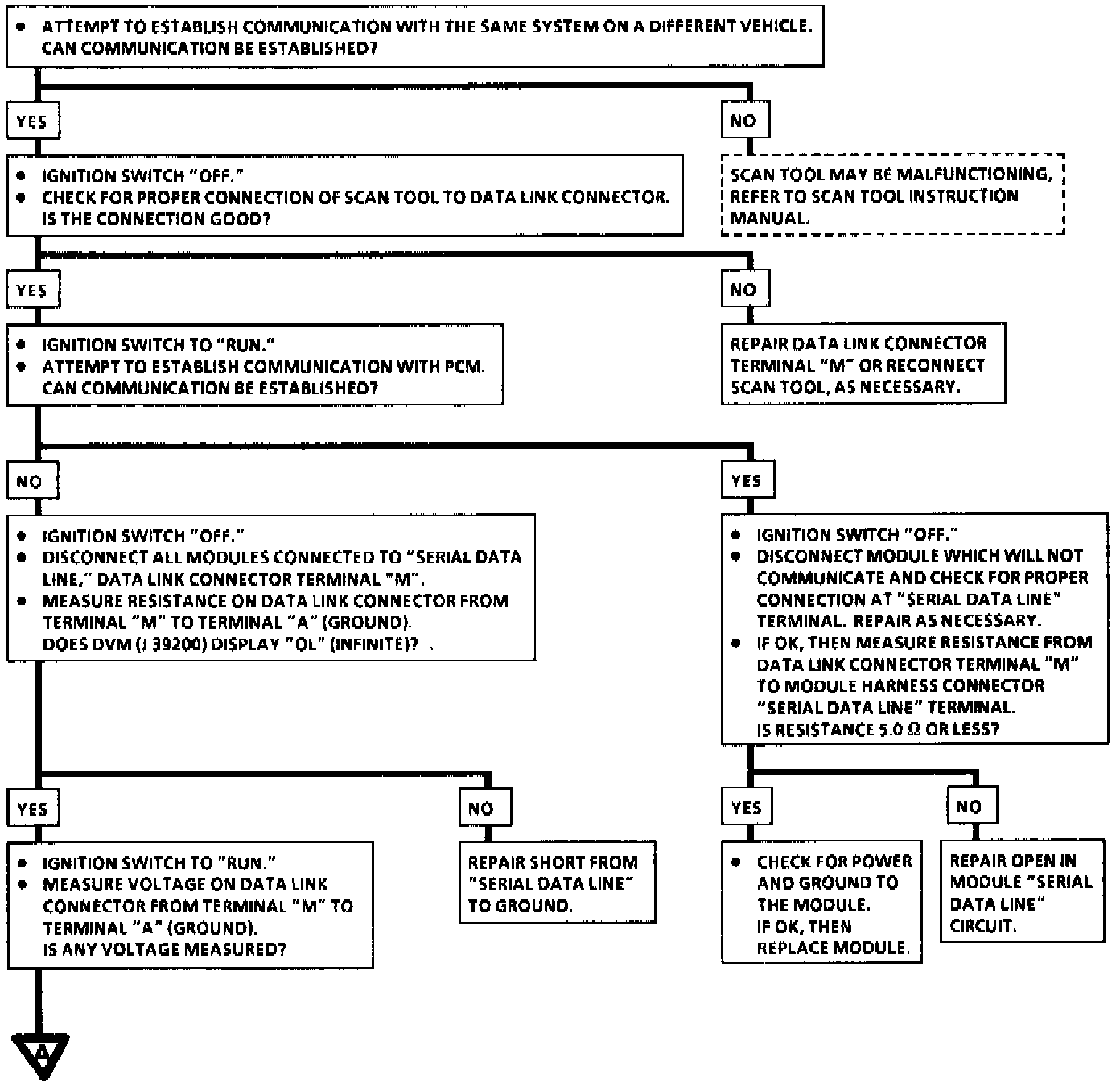

Serial Data Line Diagnosis-Part 1:

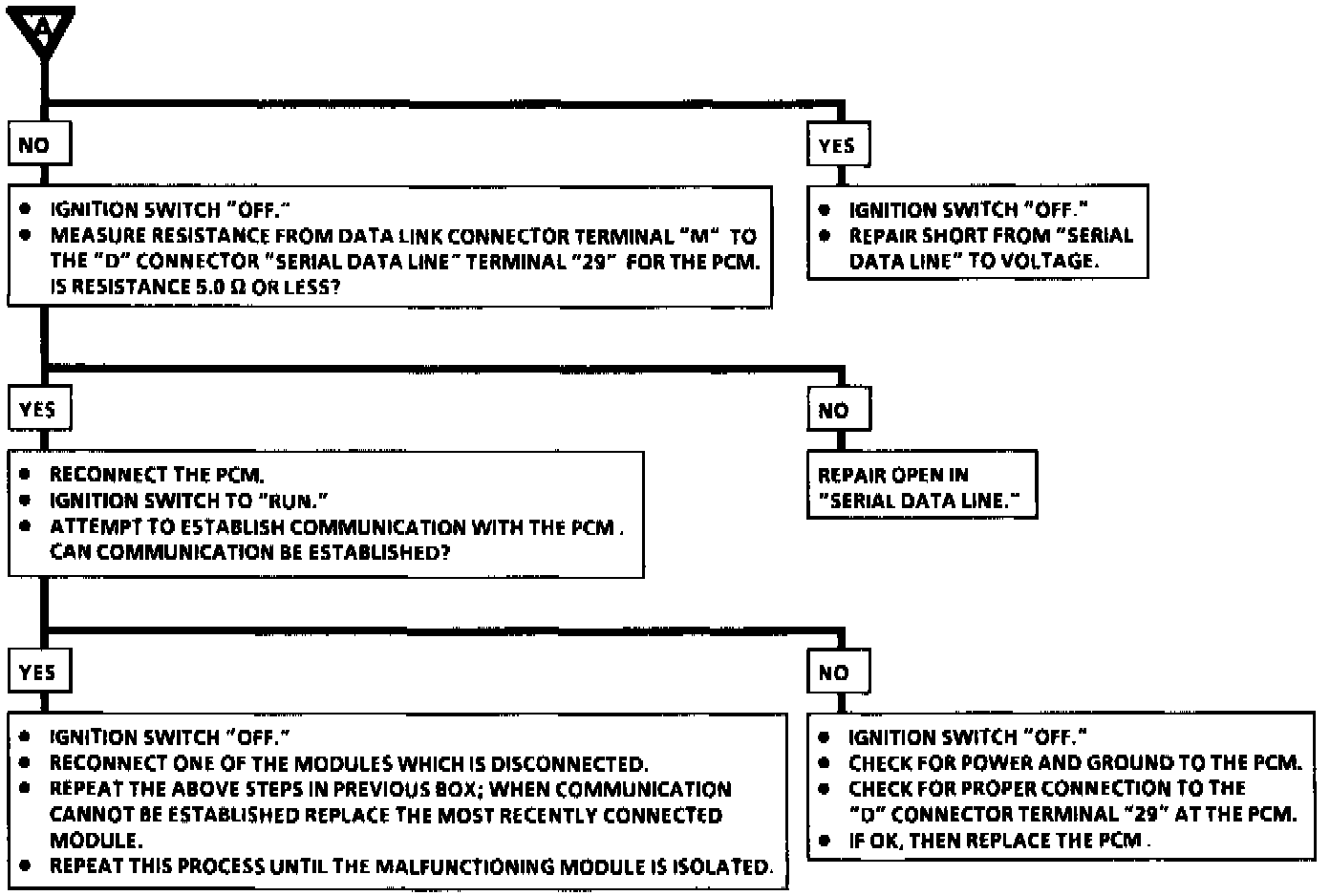

Serial Data Line Diagnosis-Part 2:
