Home >> Cadillac >> 1994 >> Fleetwood V8-5.7L VIN P >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Exhaust Temperature Sensor >> Locations

Exhaust Temperature Sensor: Locations

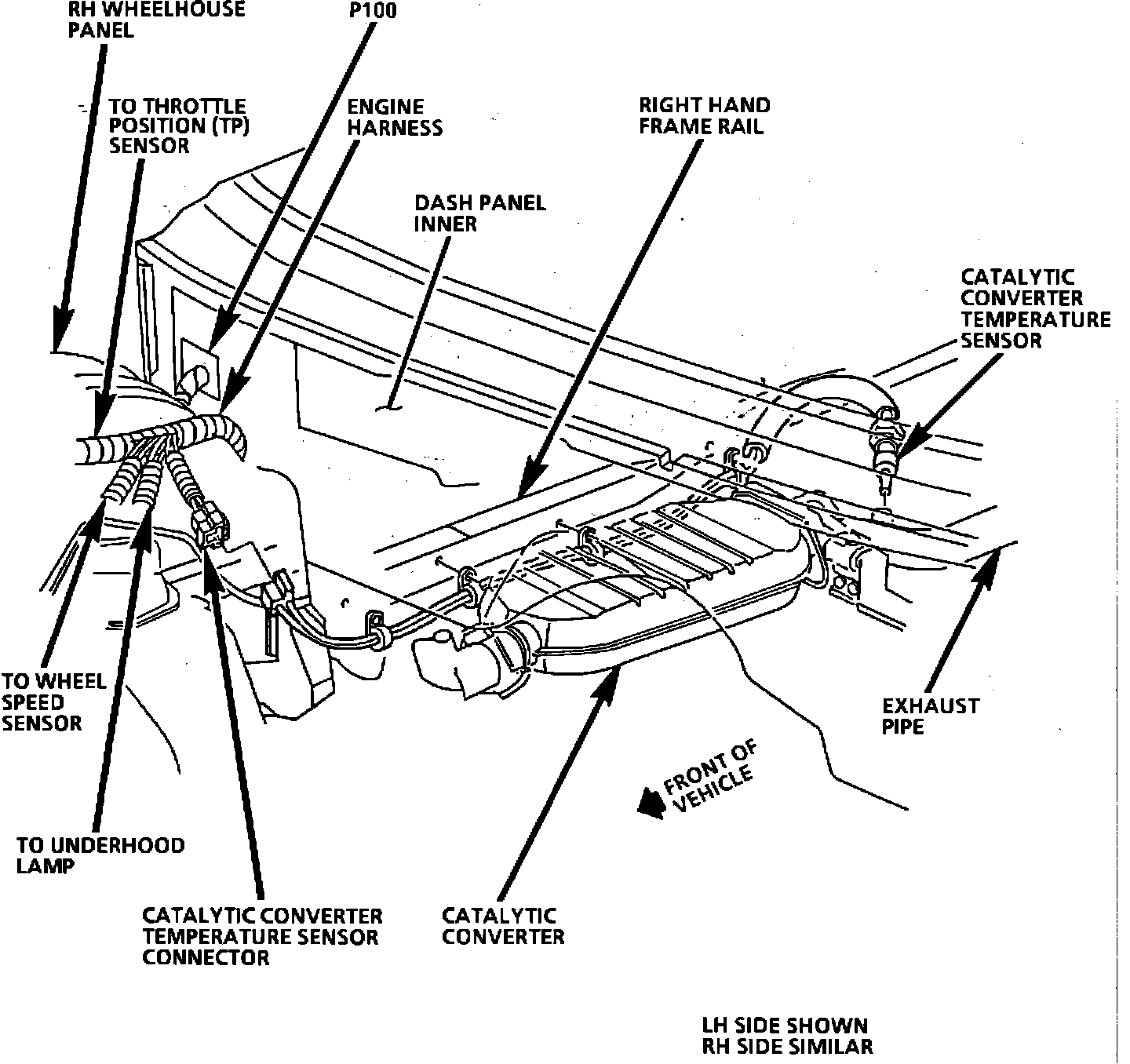

Component Location - Pictorial View.:






Located in exhaust pipe, behind catalytic converter.
