Air Bag Control Module

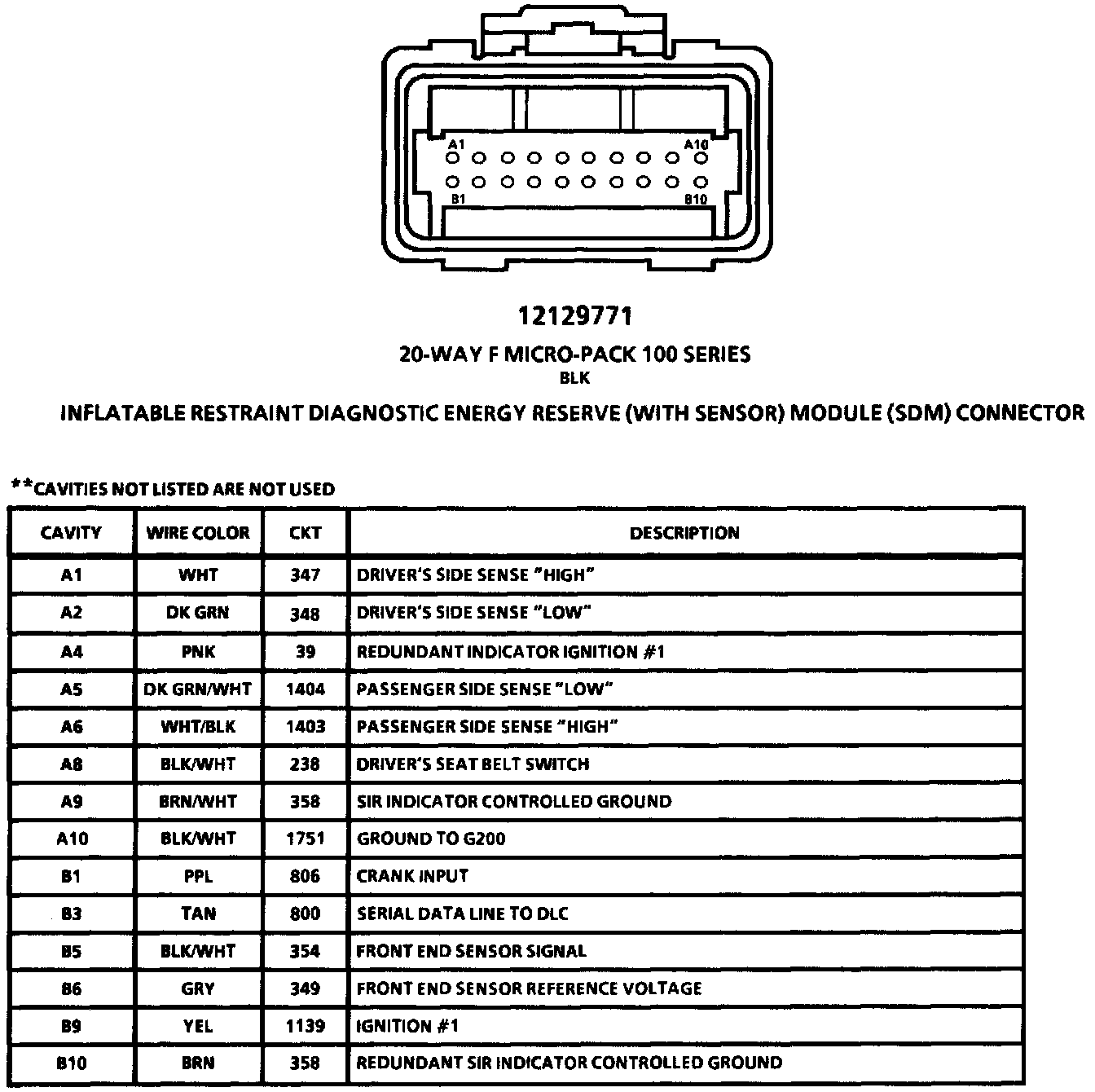

Inflatable Restraint Diagnostic Energy Reserve (With Sensor) Module (SDM) Connector View:
