Test A: Relay and Compressor Motor Test

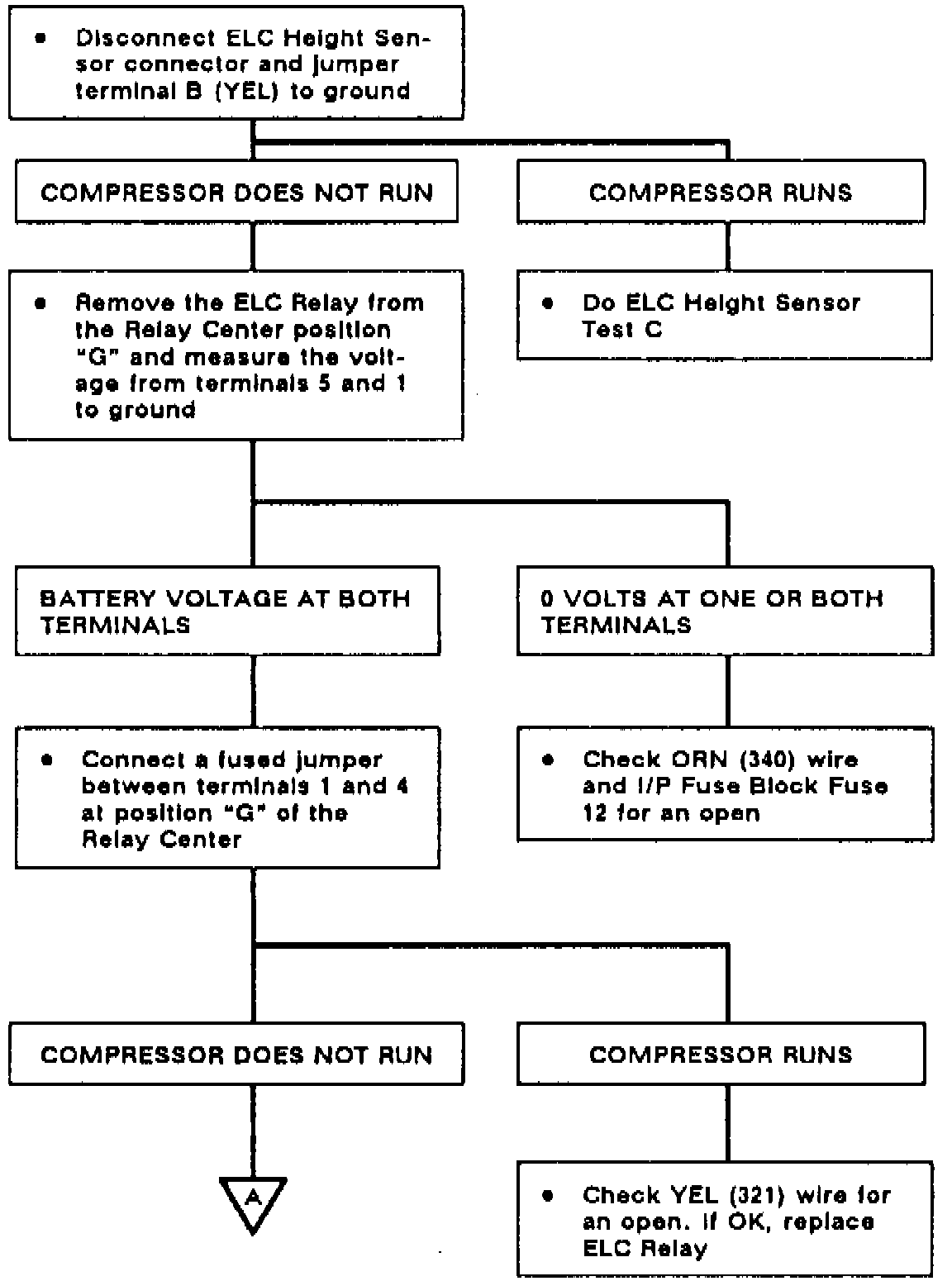

Fig. 34 Test A: ELC Relay & Compressor Motor Test (Part 1 Of 2).:

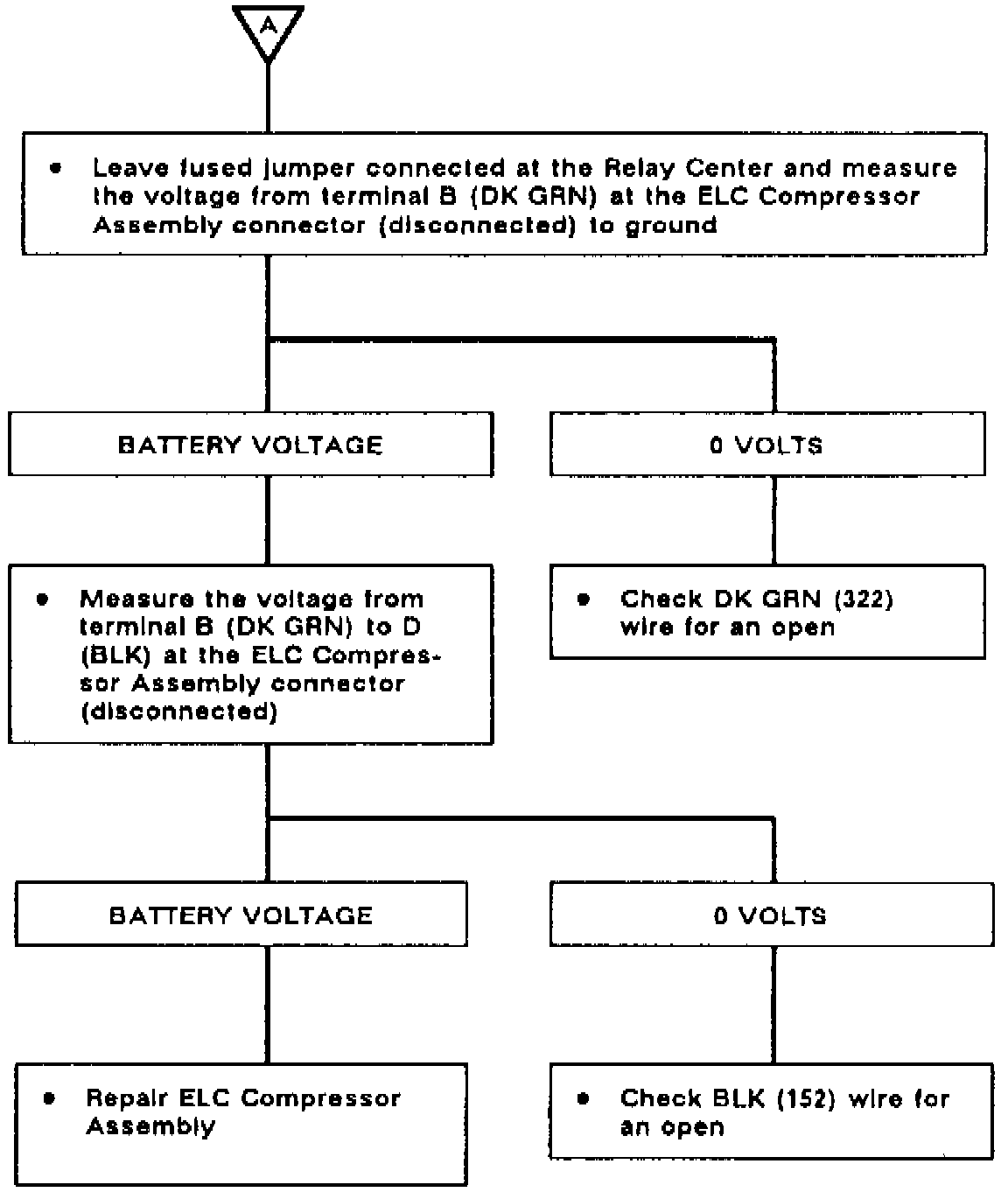

Fig. 34 Test A: ELC Relay & Compressor Motor Test (Part 2 Of 2).:

If ELC system is inoperative, check fuse in the fuse block. Refer to ELC diagnostic charts, Fig. 34 when performing electrical diagnosis on the ELC system.
