Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN Y >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Locations >> LH Electronics Bay Board >> 2 Door

2 Door

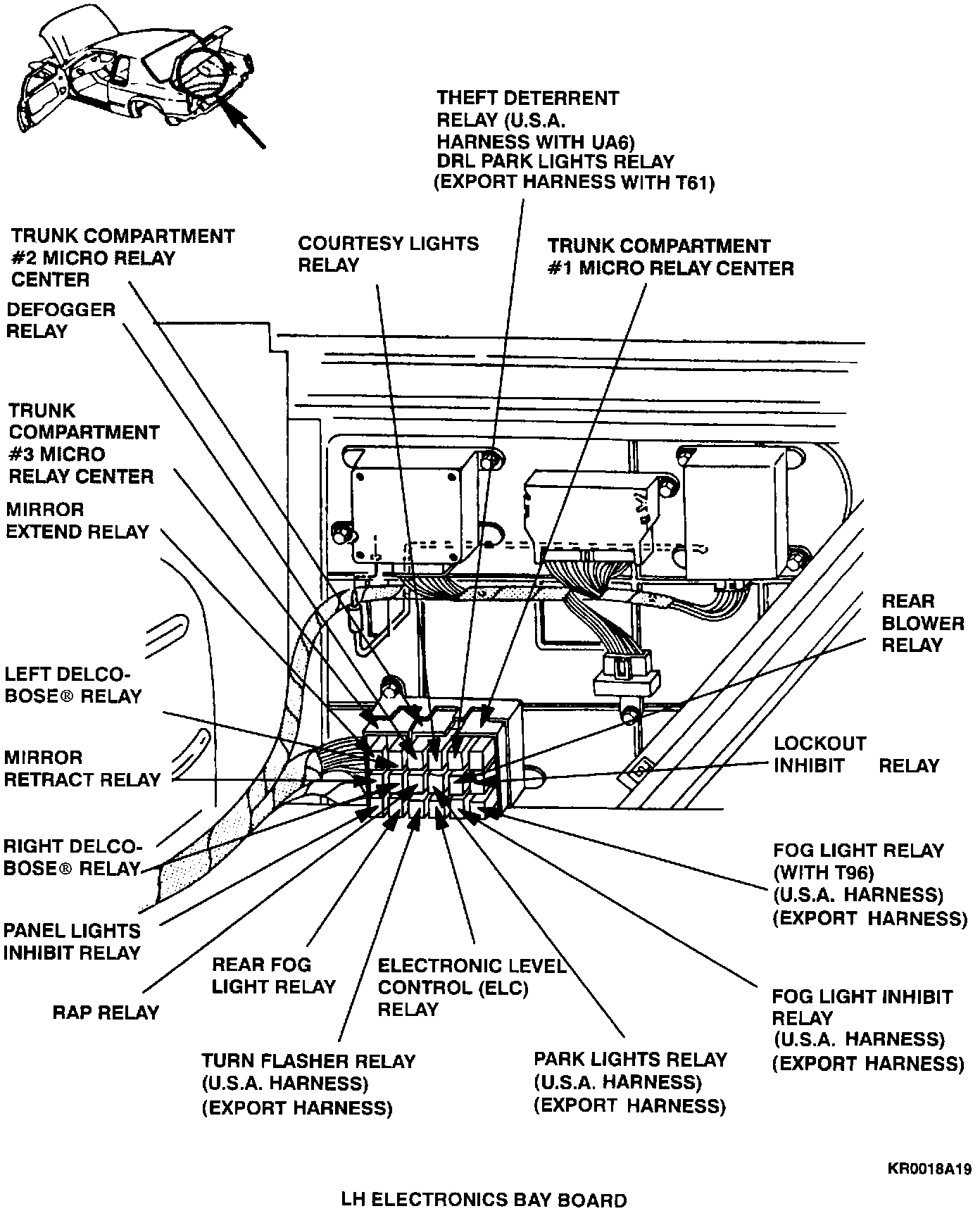

LH Electronics Bay Board (behind Panel) (2 Door):
