A/T - Diagnosis Revised

NO: 47-71-40

GROUP: 7 - TRANSMISSION

DATE: DECEMBER, 1994

SUBJECT:
SECTION 7A - AUTOMATIC TRANSAXLE DIAGNOSIS

MODELS:
1994 CADILLAC ELDORADO, SEVILLE, CONCOURS

The following pages have been updated for the 1994 Service Manual. Section 7A1 Automatic Transaxle Diagnosis. The correction is the 20-way transaxle connector and pin identifications.

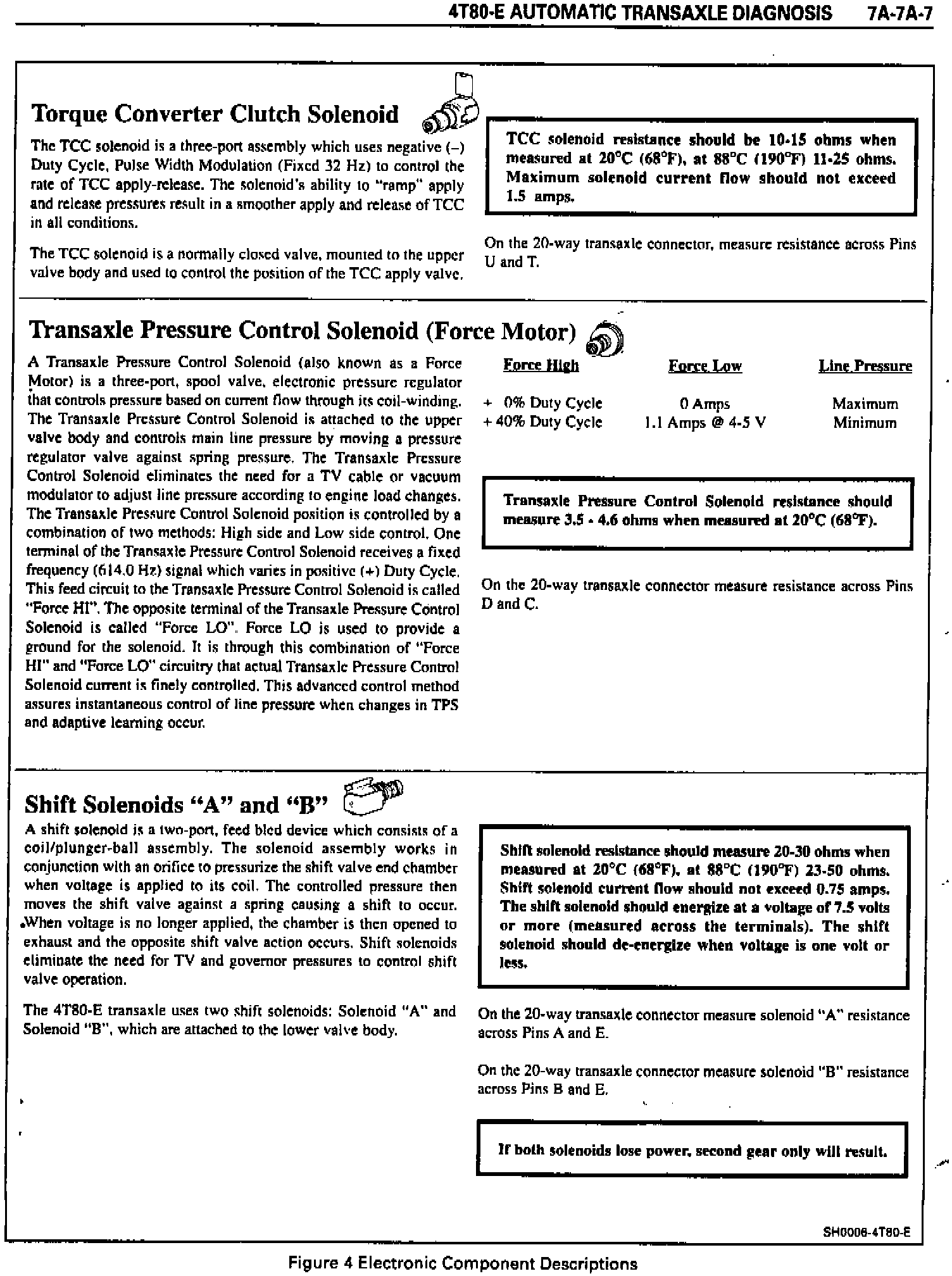

Pg. 7A-7A-7

֥O-:

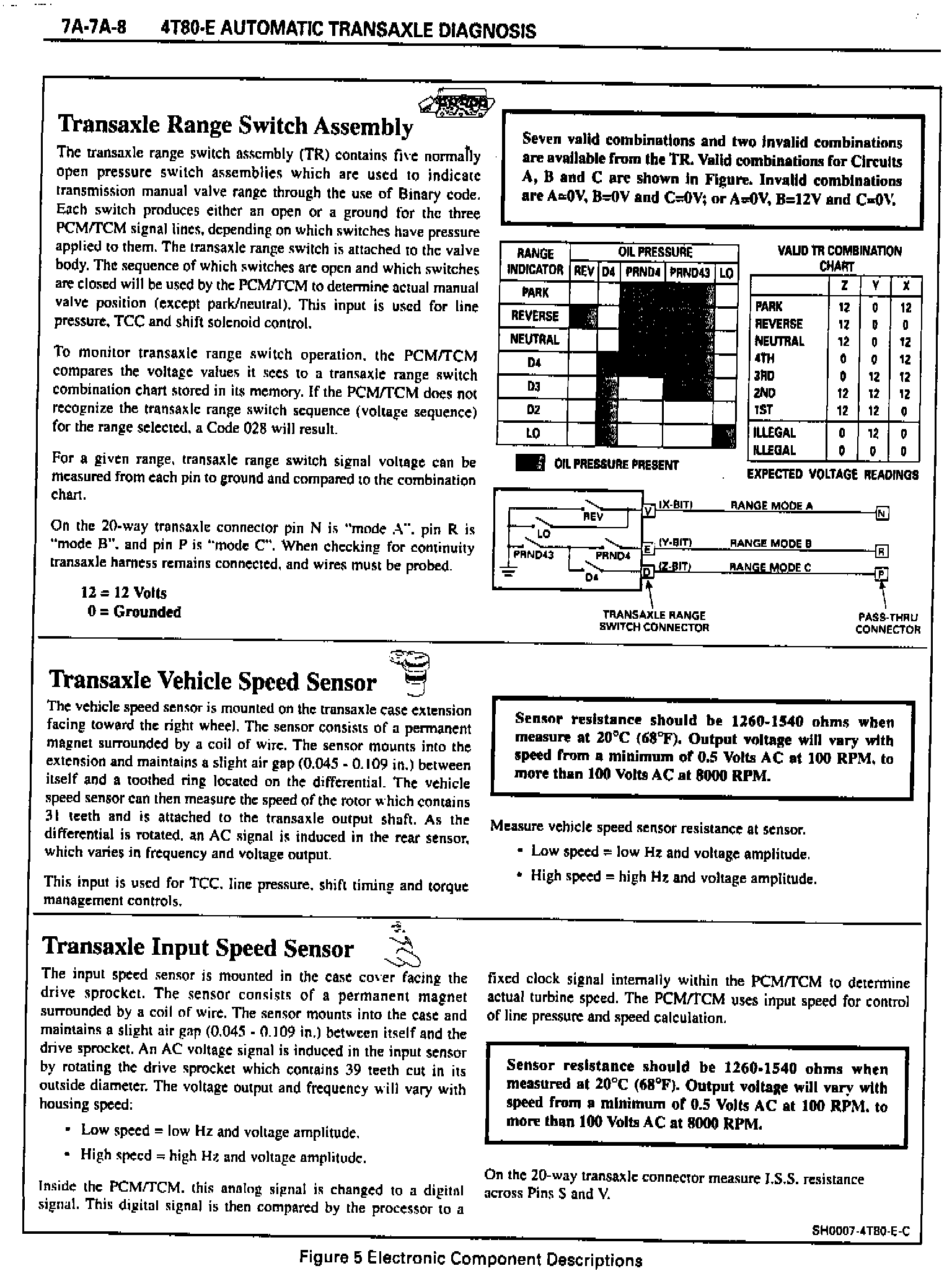

Pg. 7A-7A-8





Pg. 7A-7A-13

Please replace these pages in your Service Manual.
