EGR Valve: Service and Repair

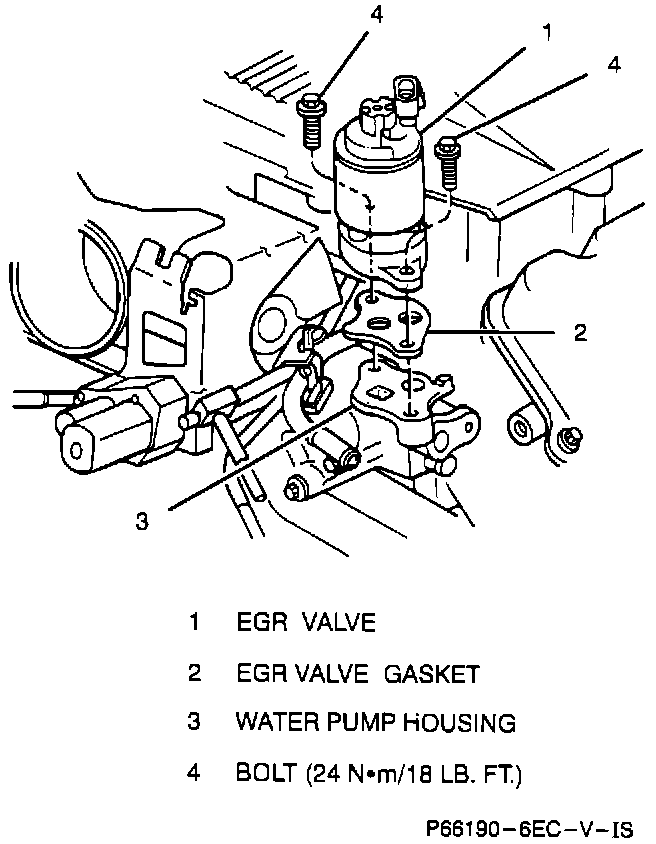

EGR Valve Replacement:

REMOVE OR DISCONNECT
- Electrical connectors at solenoid.
- 2 bolts.
- EGR valve from stand.


INSTALL OR CONNECT
- Cleaned or replacement EGR valve using new gasket.
- 2 bolts and tighten to 24 N-m (18 lb. ft.).
- Electrical connectors at solenoid.
