Piston: Service and Repair

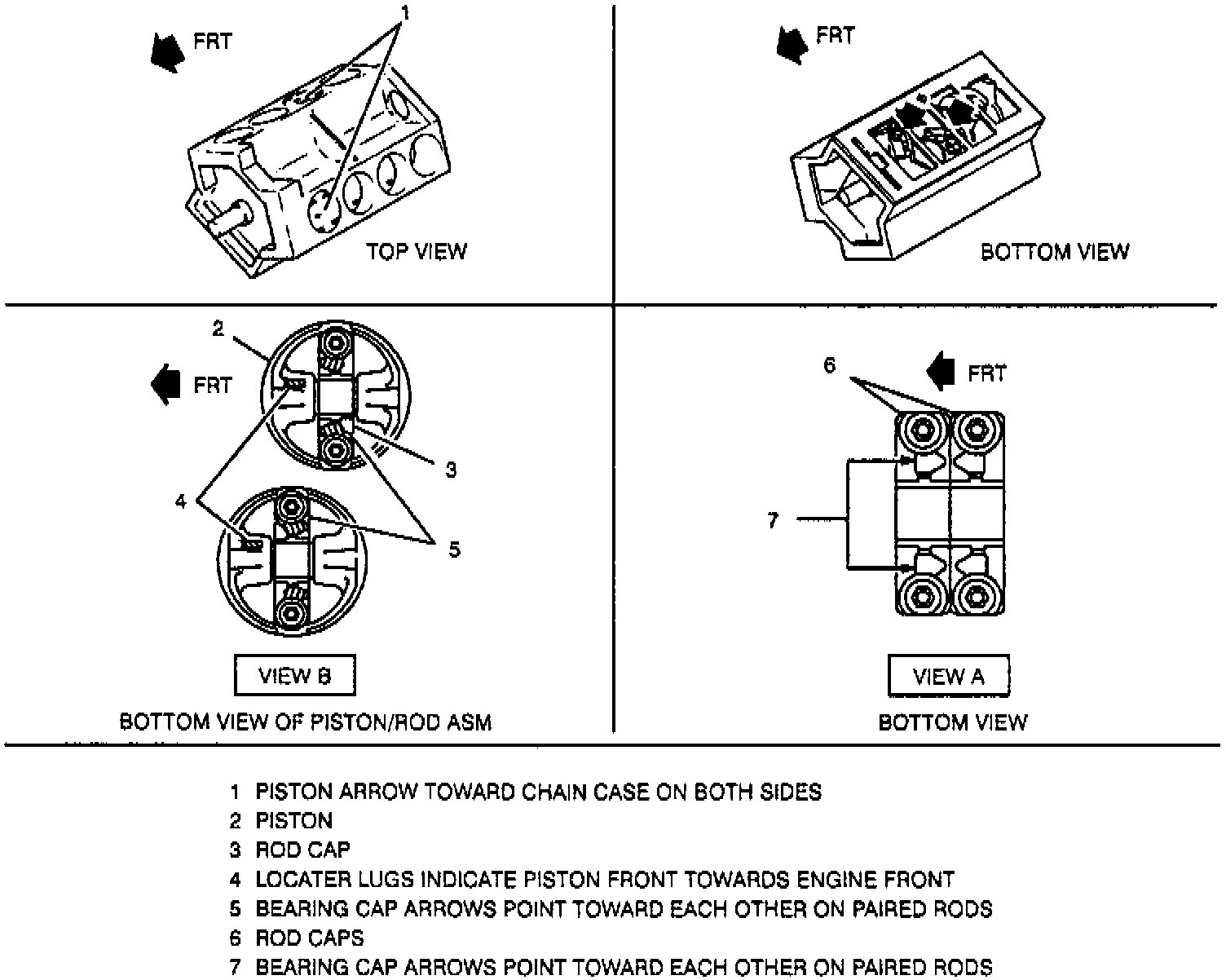

Fig. 18 Piston & Rod Assembly:

Refer to Fig. 18 for correct piston and rod assembly installation.
Ensure piston and rod assemblies are coated with suitable lubricant before installation.
