RH Maxi(R) Fuse Block
>>
Maxi(R) Fuse 6
Maxi(R) Fuse 6

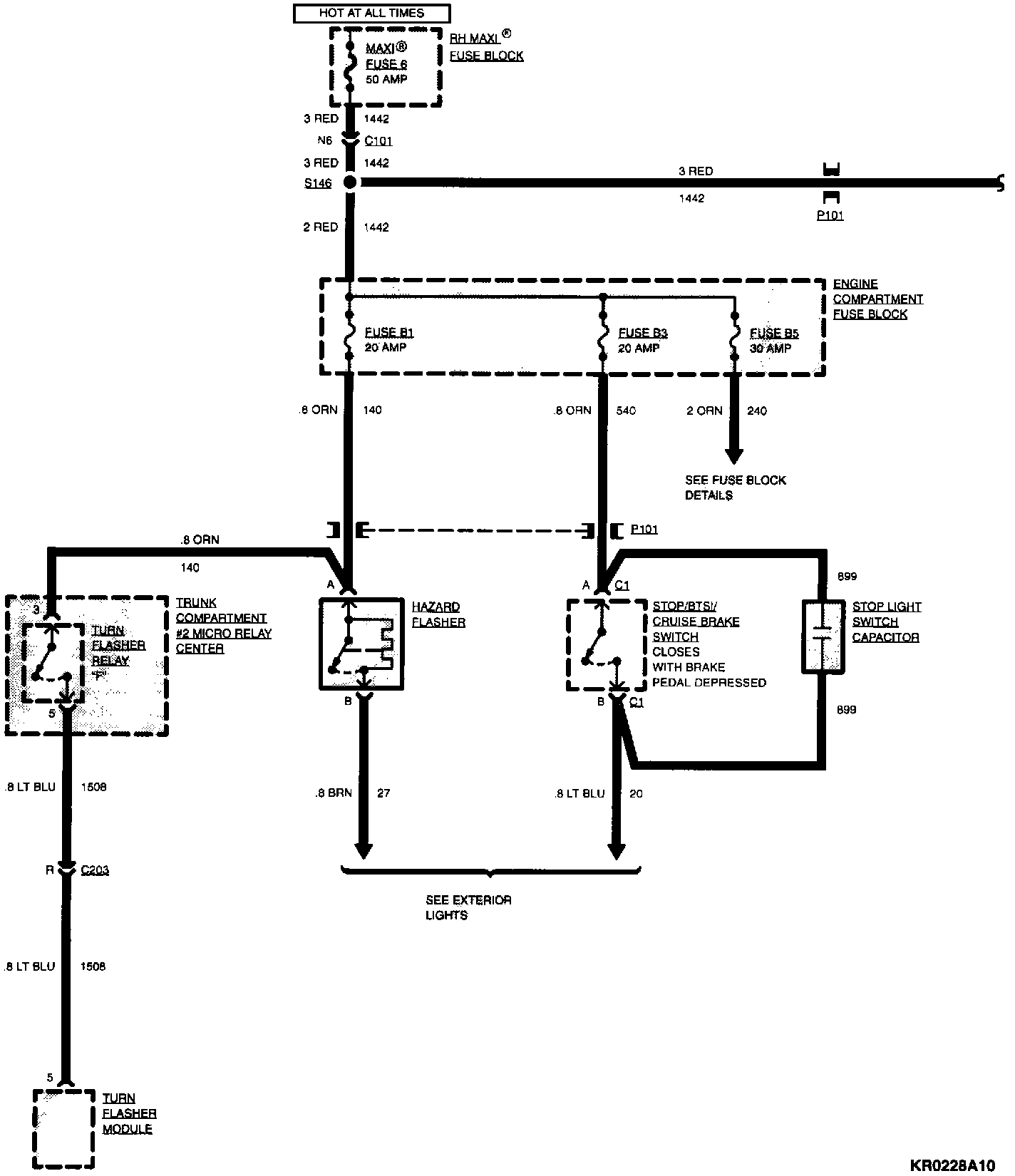

Power Distribution-RH Maxi(R) Fuse Block: Maxi(R) Fuse 6 (Part 1 Of 2):

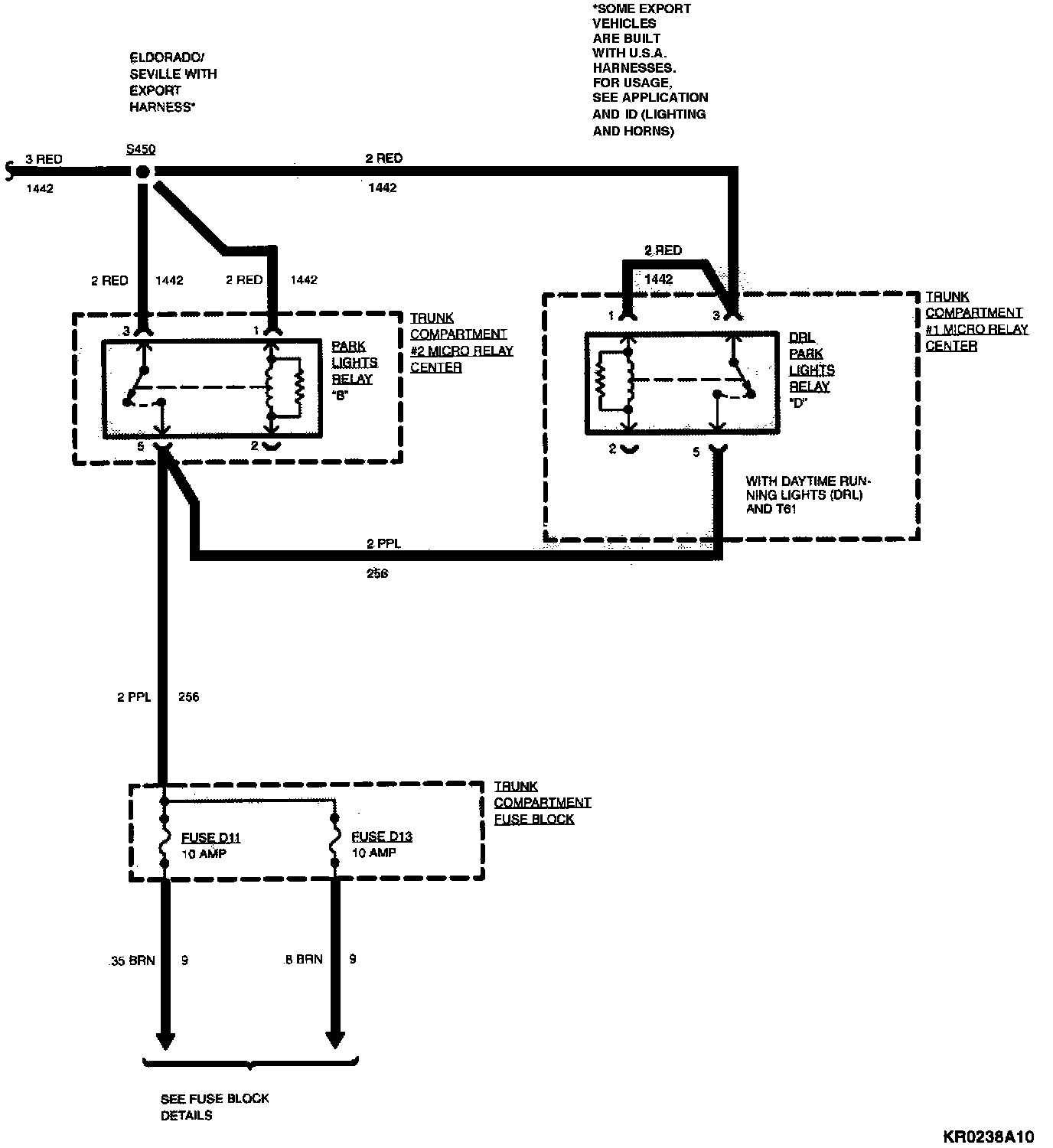

Power Distribution-RH Maxi(R) Fuse Block: Maxi(R) Fuse 6 (Part 2 Of 2):
