Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Windows and Glass >> Heated Glass Element >> Diagrams >> Electrical Diagrams >> Heated Windshield

Heated Windshield

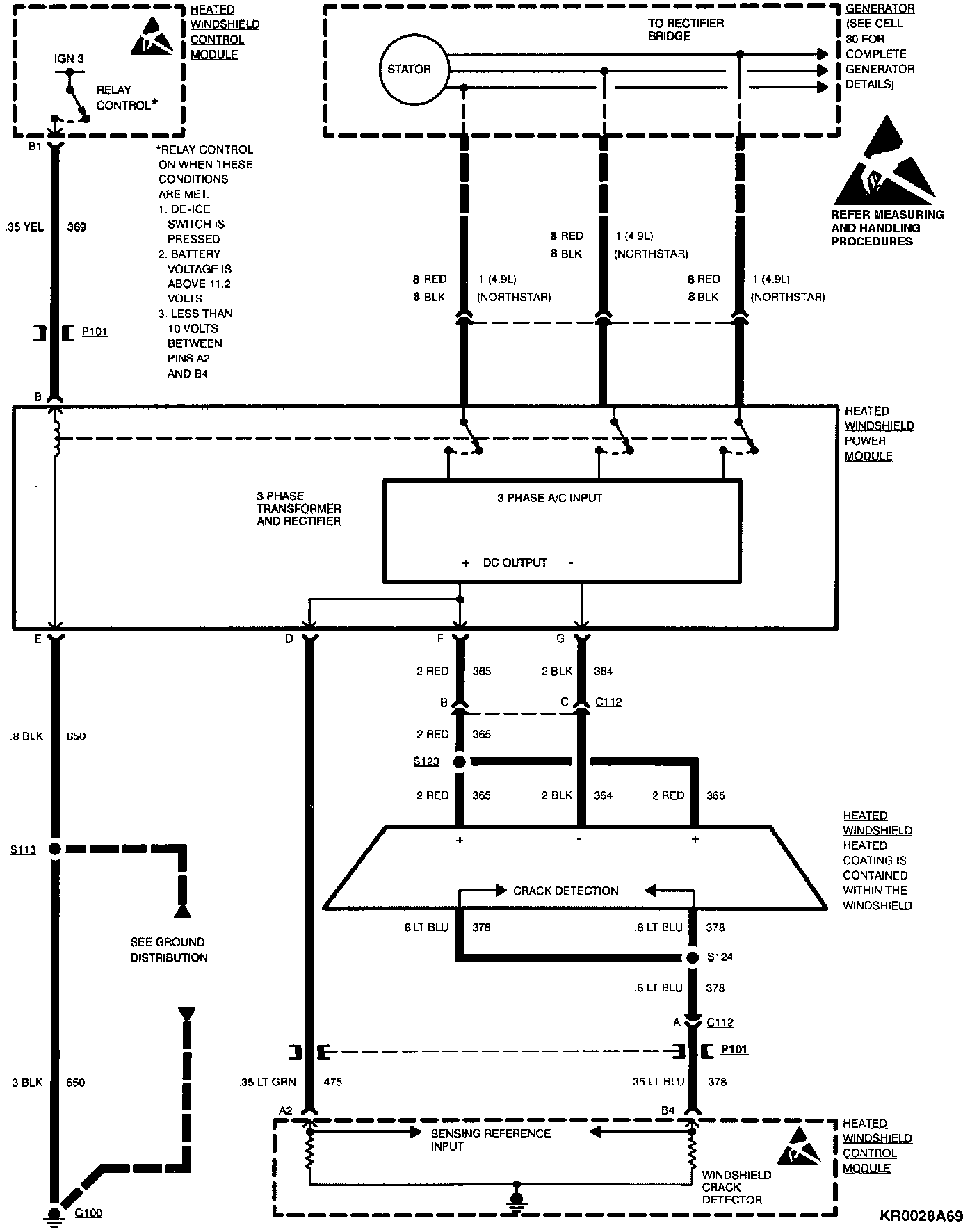

Heated Windshield (C50):

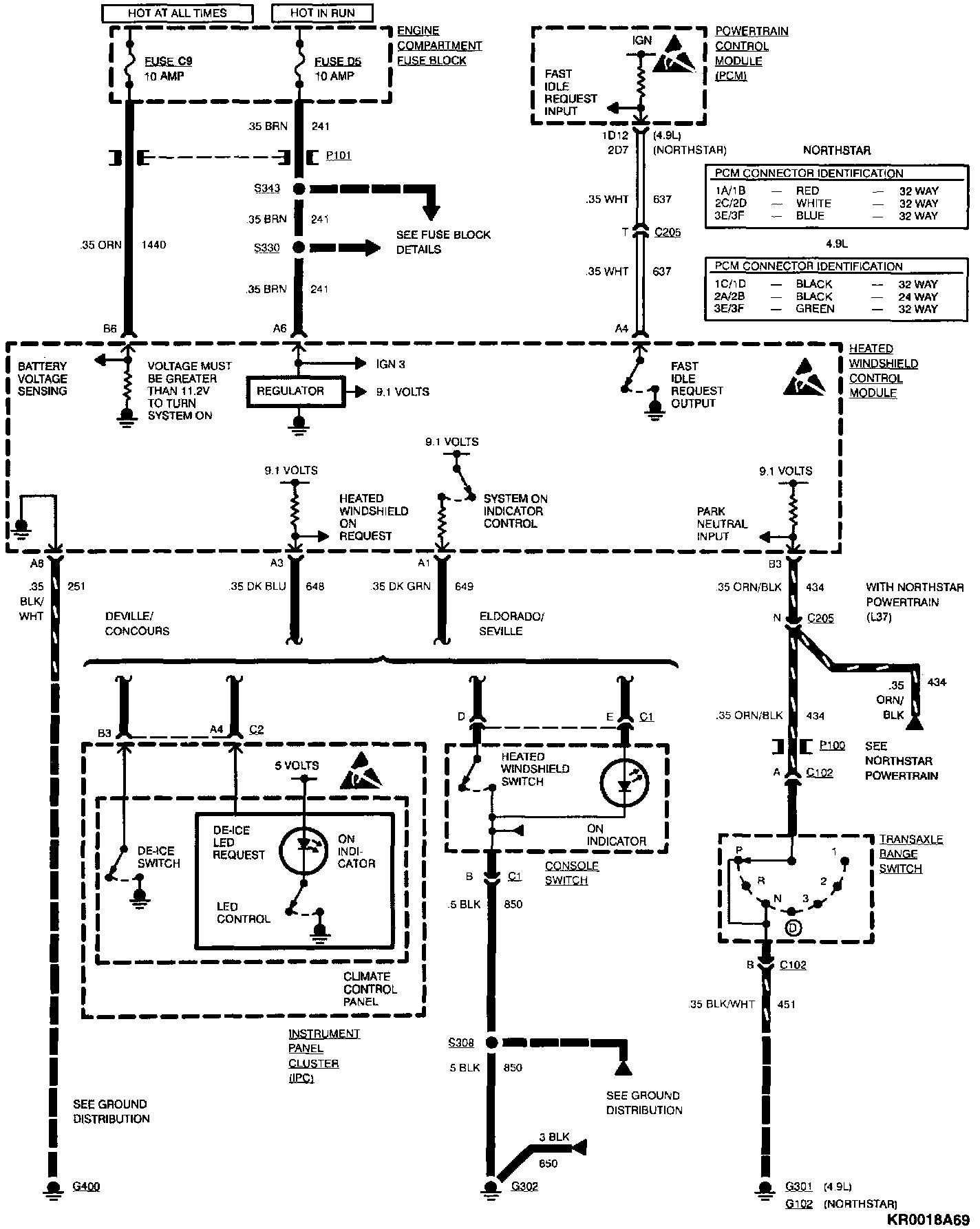

Heated Windshield (C50):
