Trans Won't Shift From Park, Brake Ped Depressed, Ign In Run
Trans Won't Shift From Park, Brake Ped Depressed, Ign In Run

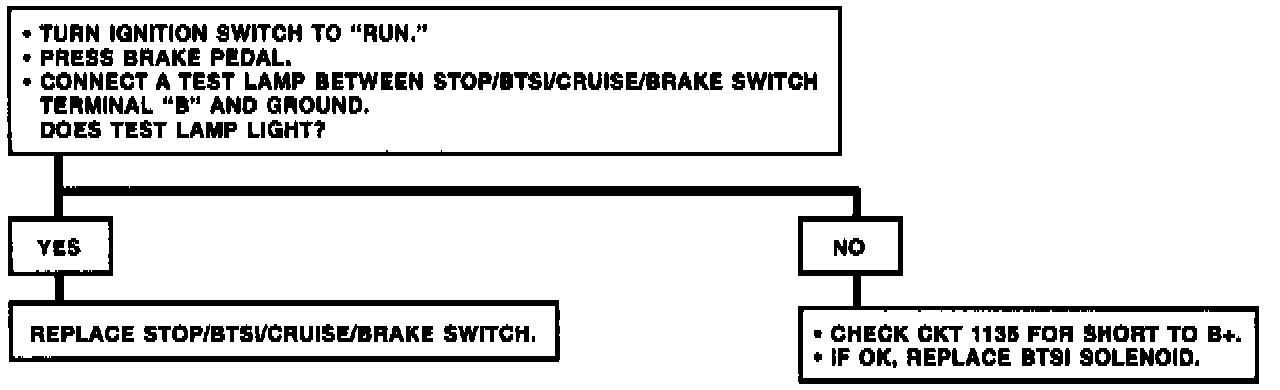

Fig.6 Transaxle Does Not Shift Out Of Park W/Brake Pedal Depressed And Ignition Switch In Run Position.:
Refer to diagnosis chart,
Fig. 6
, to diagnose the
BTSI
system.
