Test C: Height Sensor Test

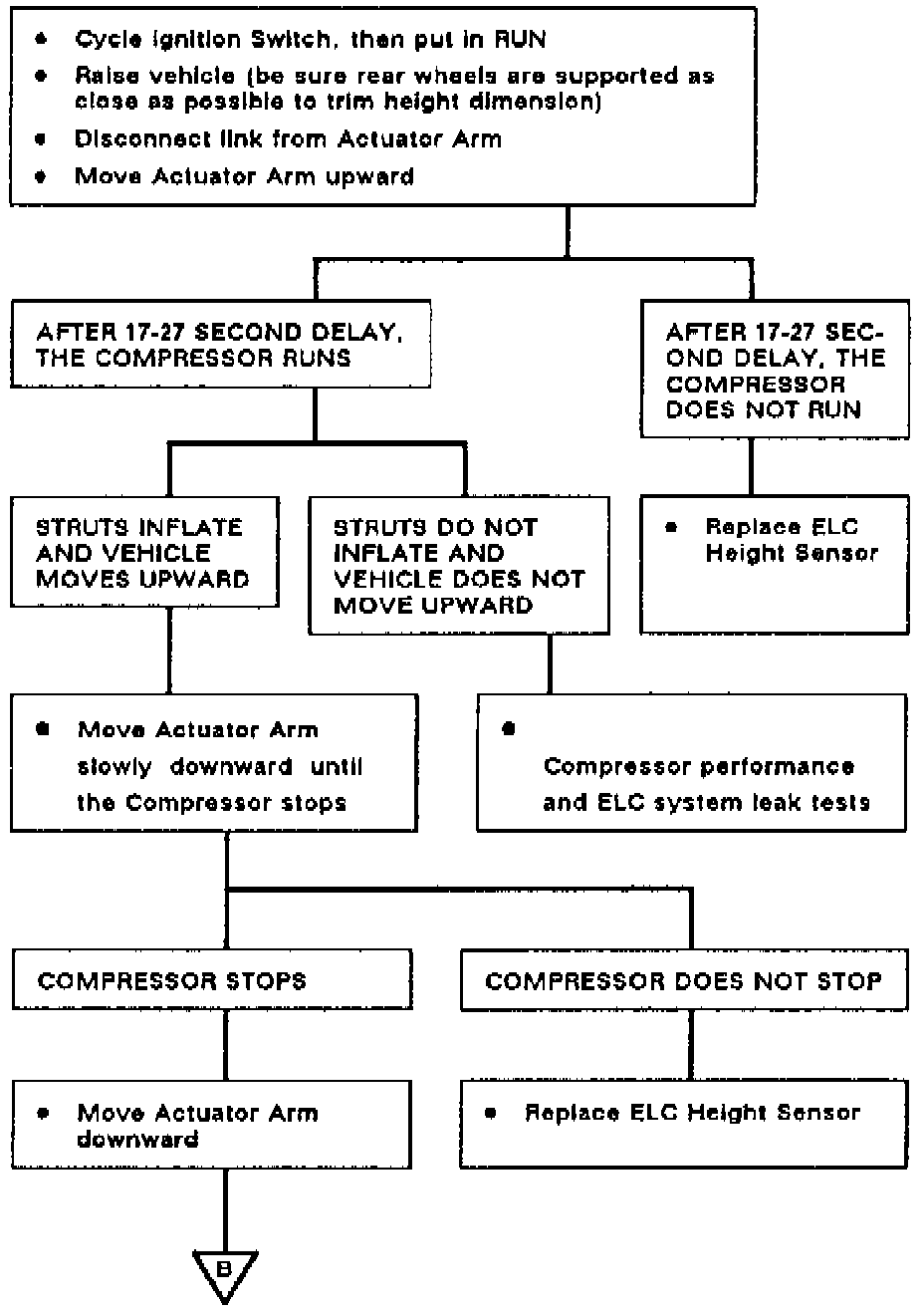

Fig. 36 Test C: ELC Height Sensor Test (Part 1 Of 3).:

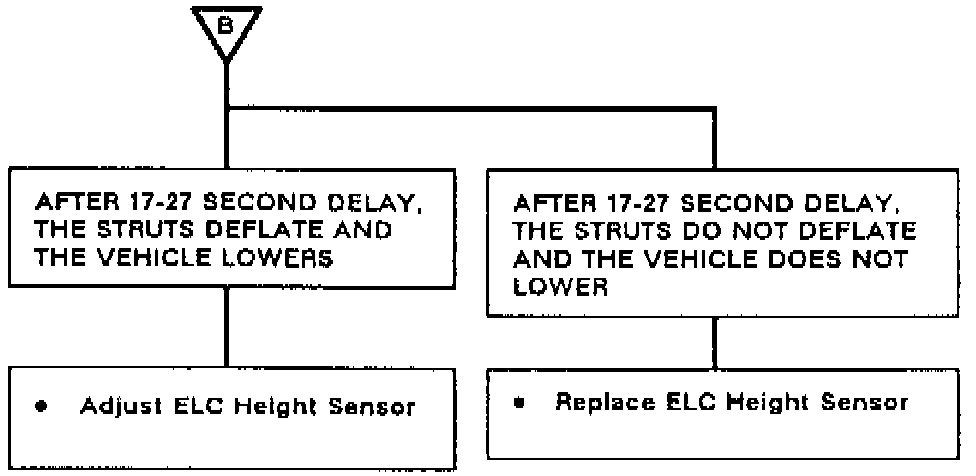

Fig. 36 Test C: ELC Height Sensor Test (Part 2 Of 3).:

Fig. 36 Test C: ELC Height Sensor Test (Part 3 Of 3).:

If ELC system is inoperative, check fuse in the fuse block. Refer to ELC diagnostic charts, Fig. 36 when performing electrical diagnosis on the ELC system.
