Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Engine

Fastener Tightening Specifications - Engine

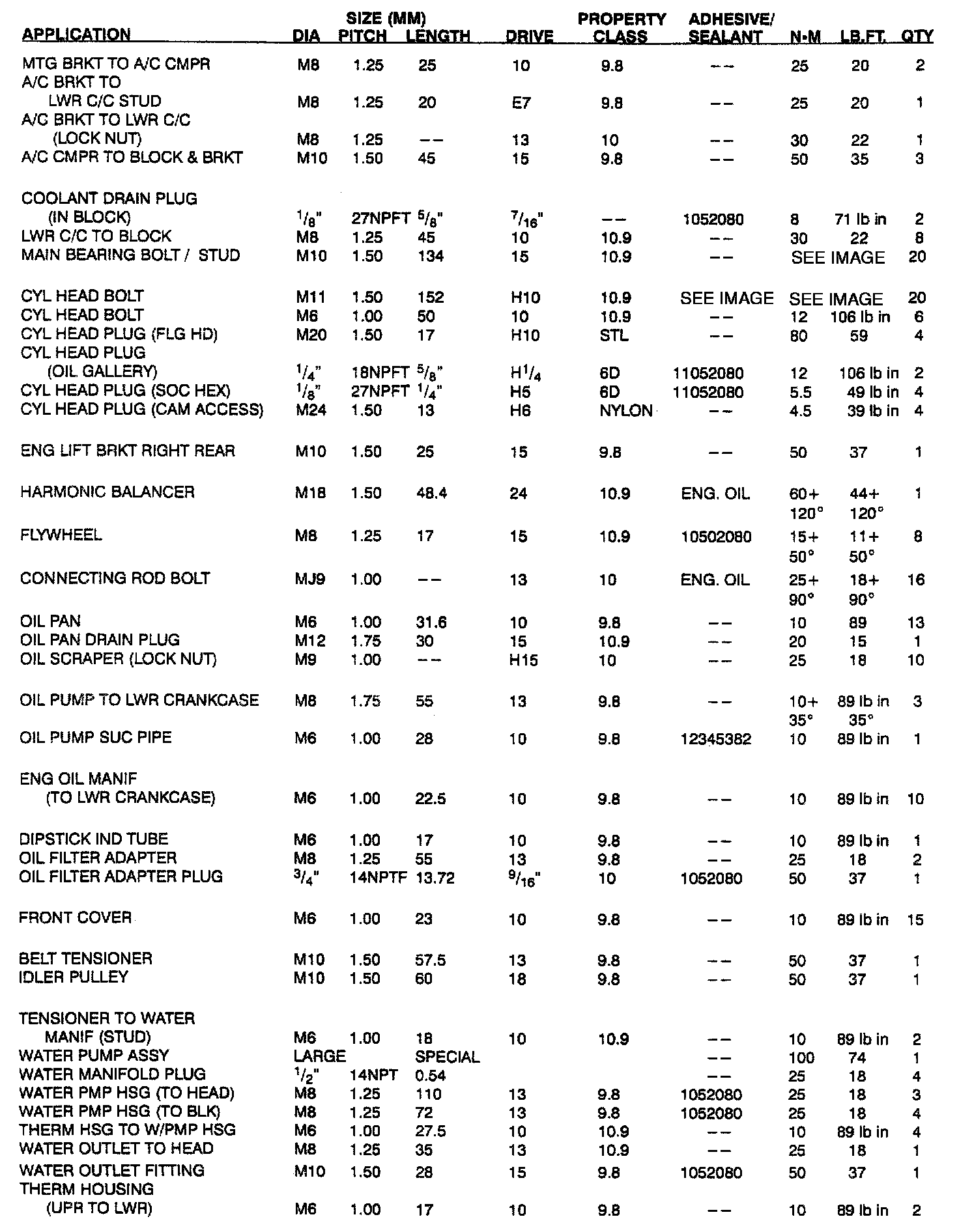

Bolt Torque Specifications (1 Of 3):

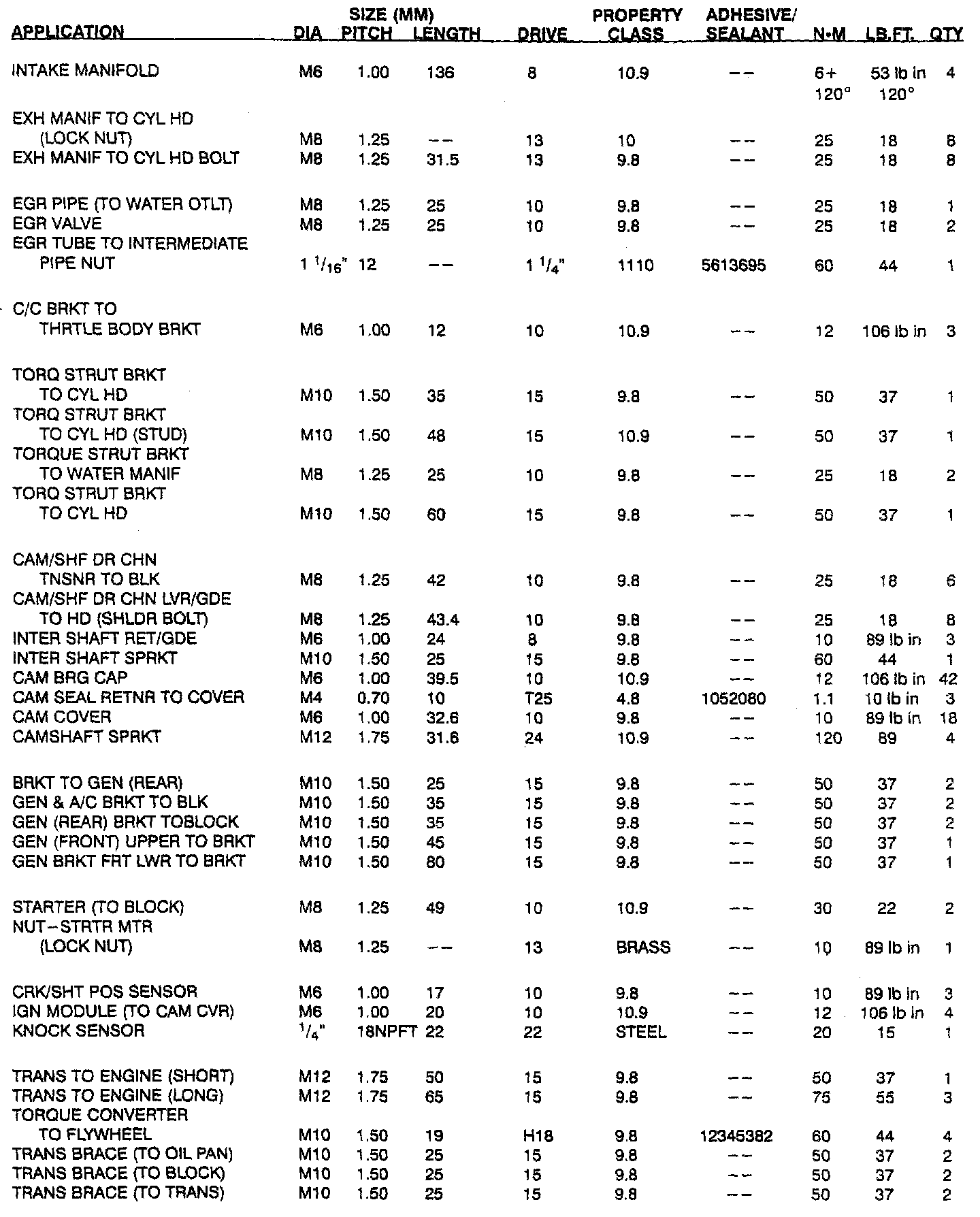

Bolt Torque Specifications (2 Of 3):

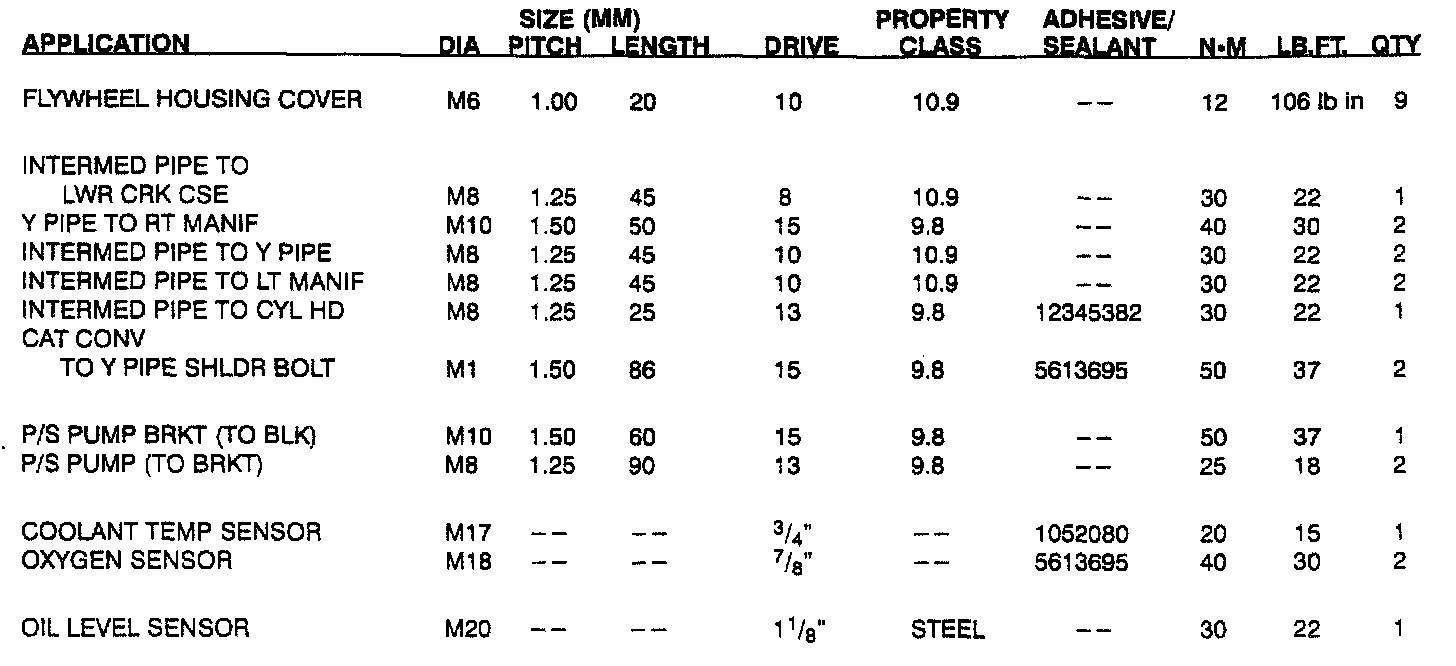

Bolt Torque Specifications (3 Of 3):
