Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Windshield Washer Switch >> Testing and Inspection >> Wiper/Washer Switch Check Chart

Wiper/Washer Switch Check Chart

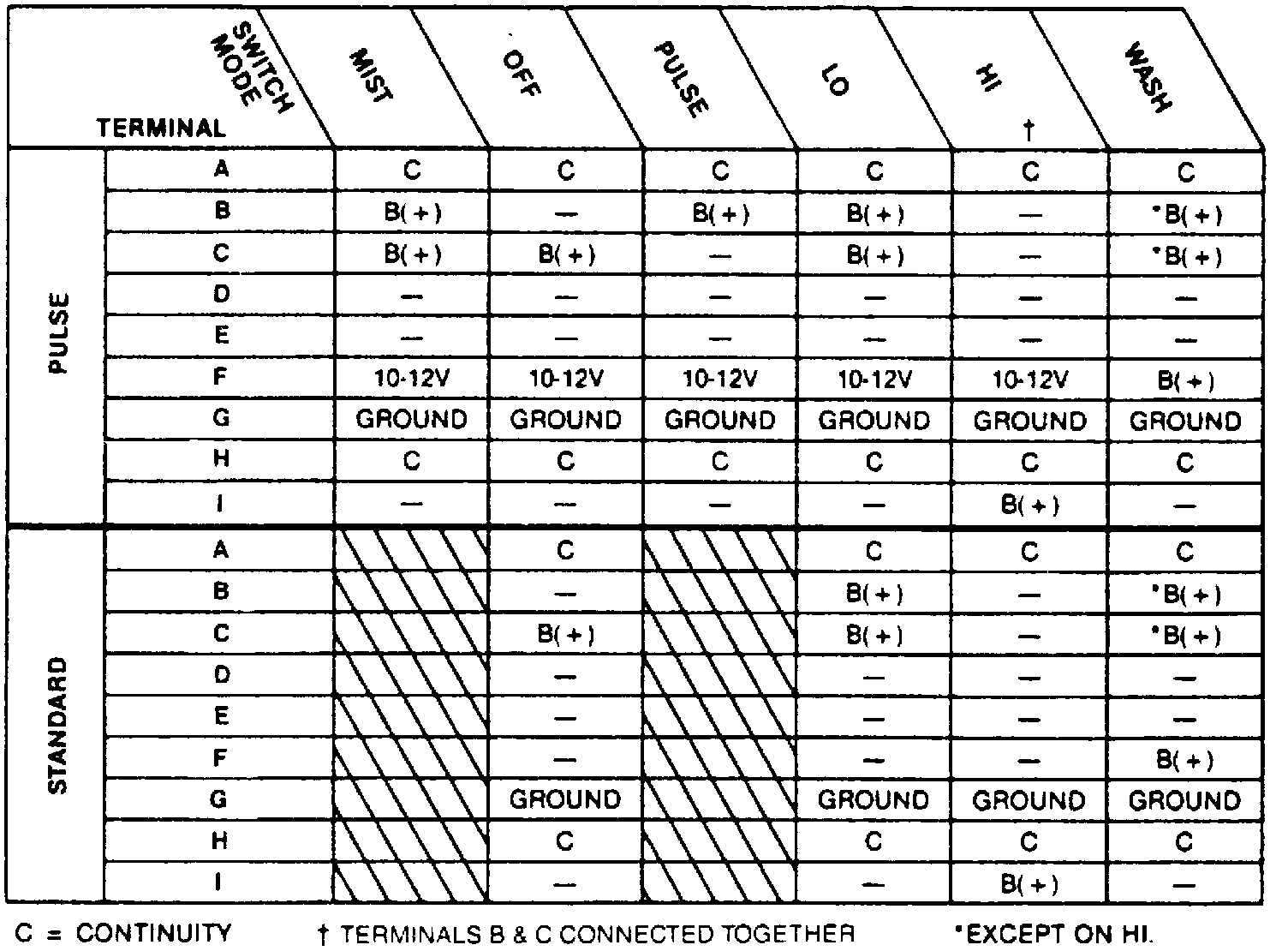

Fig. 81 Wiper/washer Switch Check Chart:
