Acceleration Sensor: Service and Repair

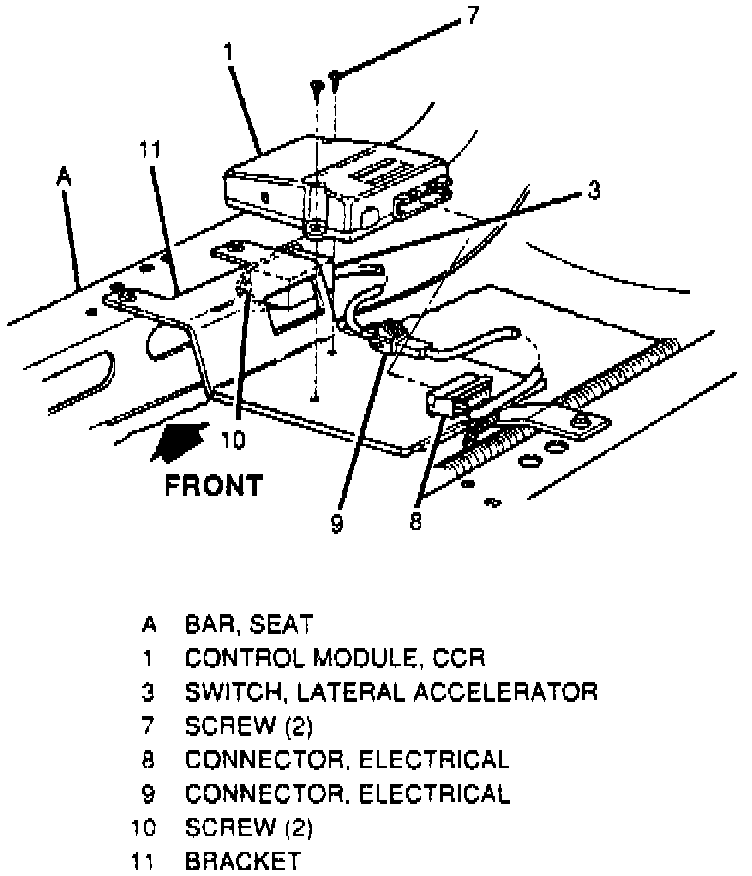

Fig. 16 CCR Control Module & Lateral Accelerator Switch Mounting.:

REPLACE
1. Move driver seat forward.
2. Cut carpet back under driver seat to expose the accelerometer, Fig. 16.
3. Disconnect accelerometer electrical connector.
4. Remove accelerometer retaining screws, then the accelerometer.
5. Reverse procedure to install.
