Headlamp Switch: Service and Repair

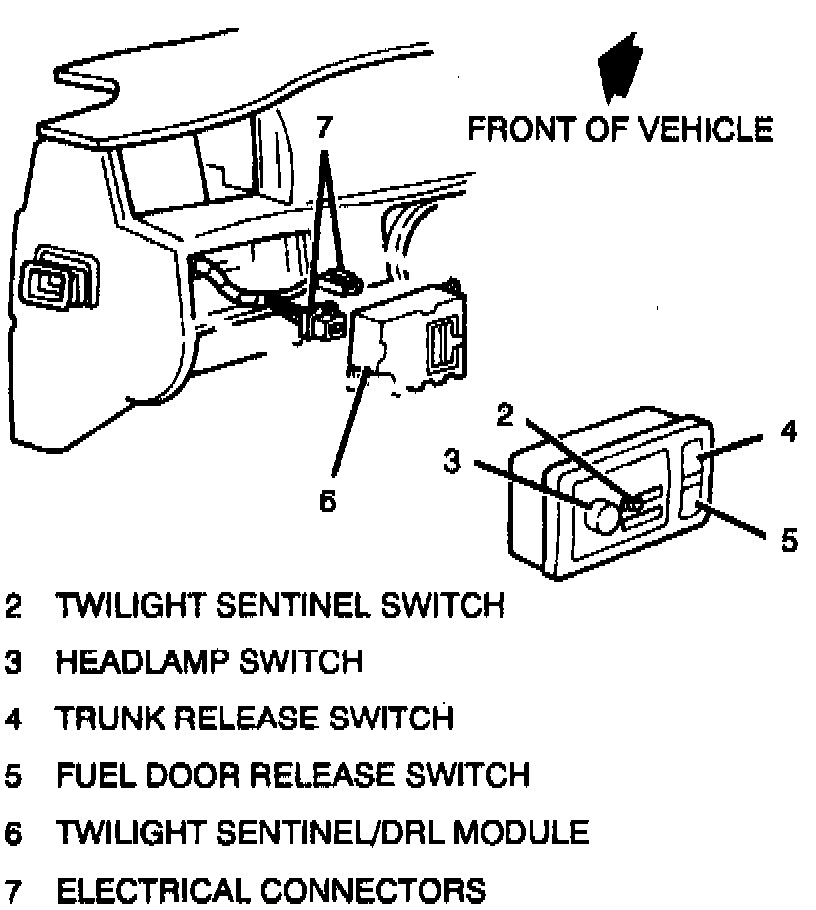

Fig. 9 Headlamp Switch Removal:






Refer to Fig. 9 for switch replacement.
