Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Diagrams >> Electrical Diagrams

Electrical Diagrams

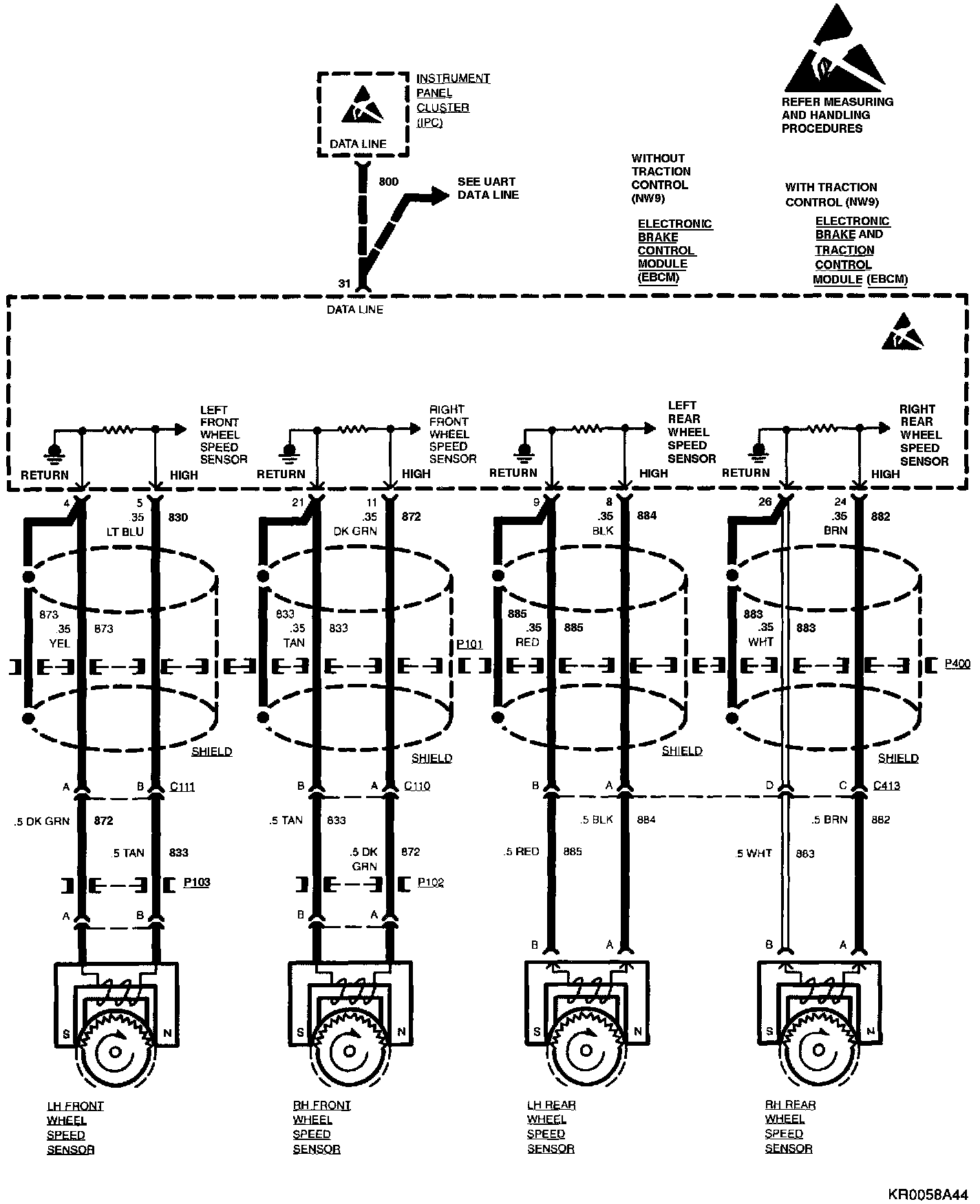

Antilock Brake System: Wheel Speed Sensor:
