Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Brake Fluid Level Sensor/Switch >> Locations

Brake Fluid Level Sensor/Switch: Locations

LH Rear Of Engine Compartment (Northstar Shown, 4.9L Similar):

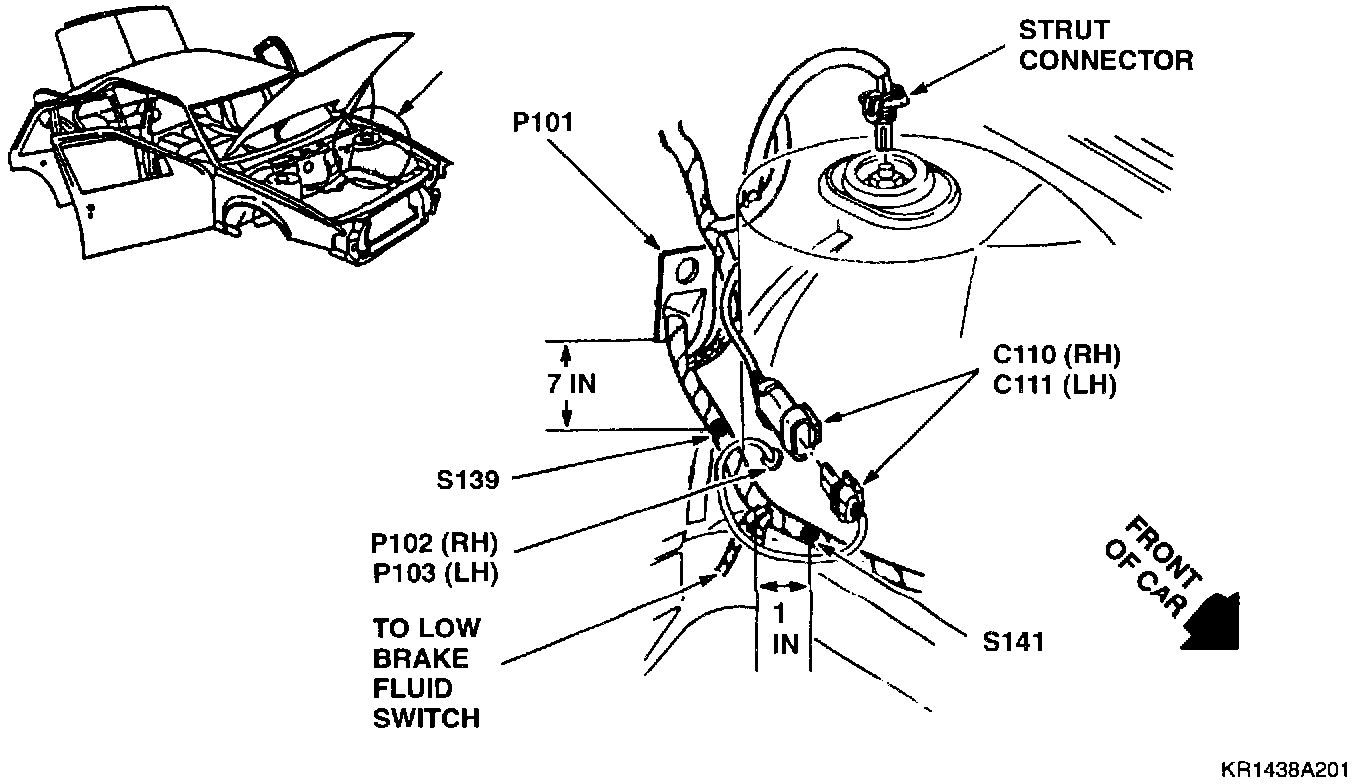

LH Rear Of Engine Compartment (RH Similar):
