Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Diagrams >> Electrical Diagrams >> SIR Wiring Diagrams

SIR Wiring Diagrams

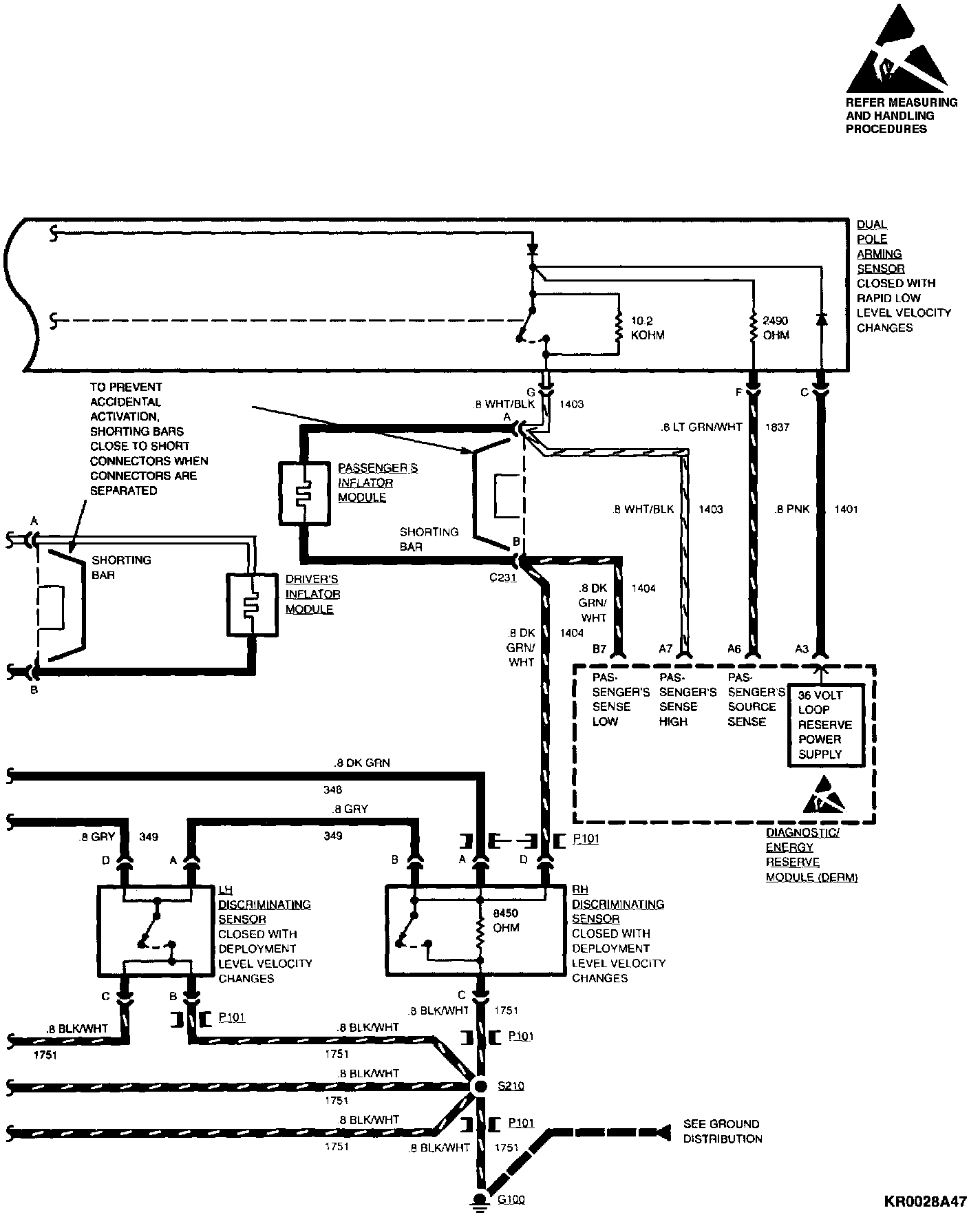

Deployment Loops (Part 1 Of 3):

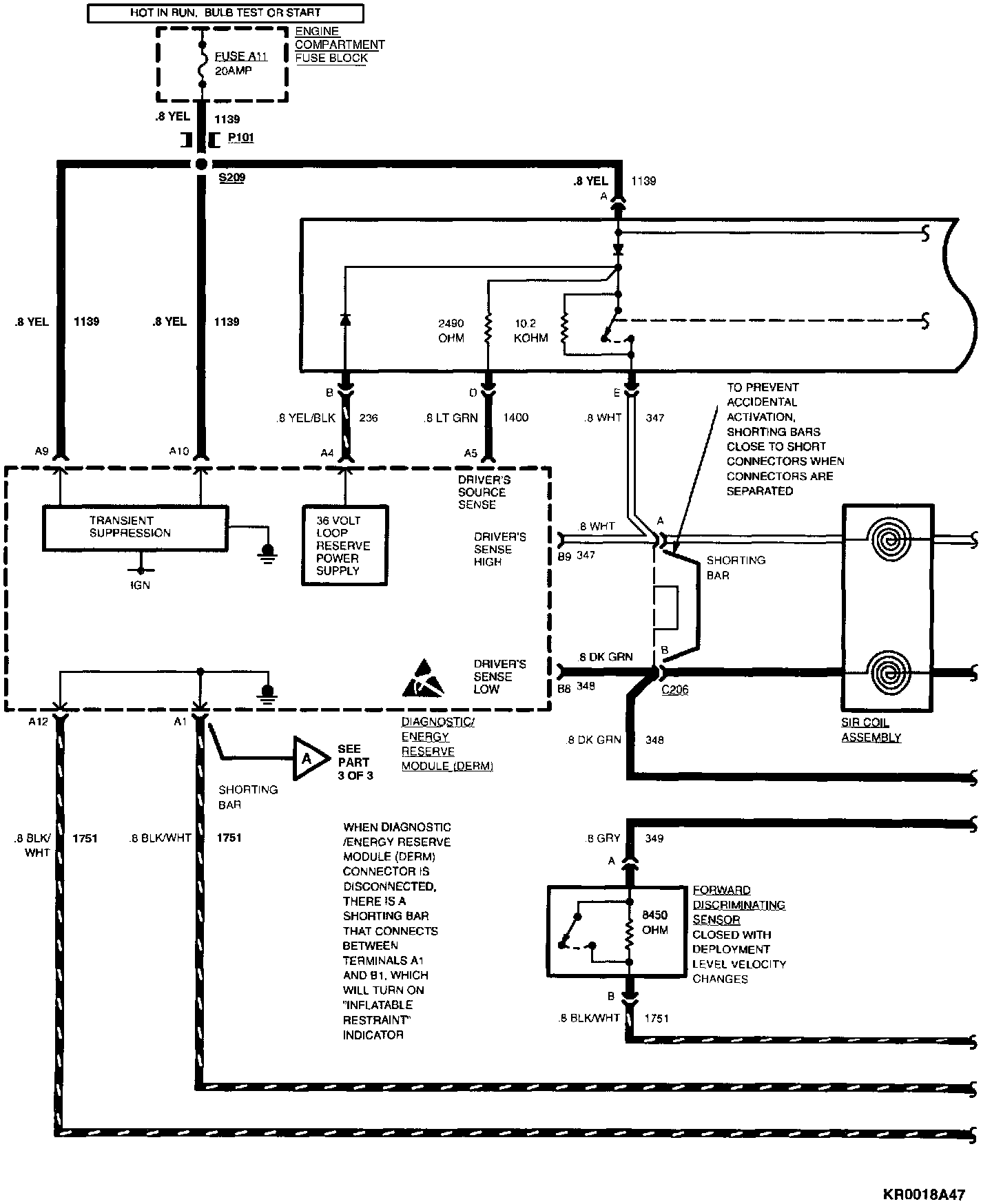

Deployment Loops (Part 2 Of 3):



Deployment Loops (Part 3 Of 3):
