Suspension Control Module: Service and Repair

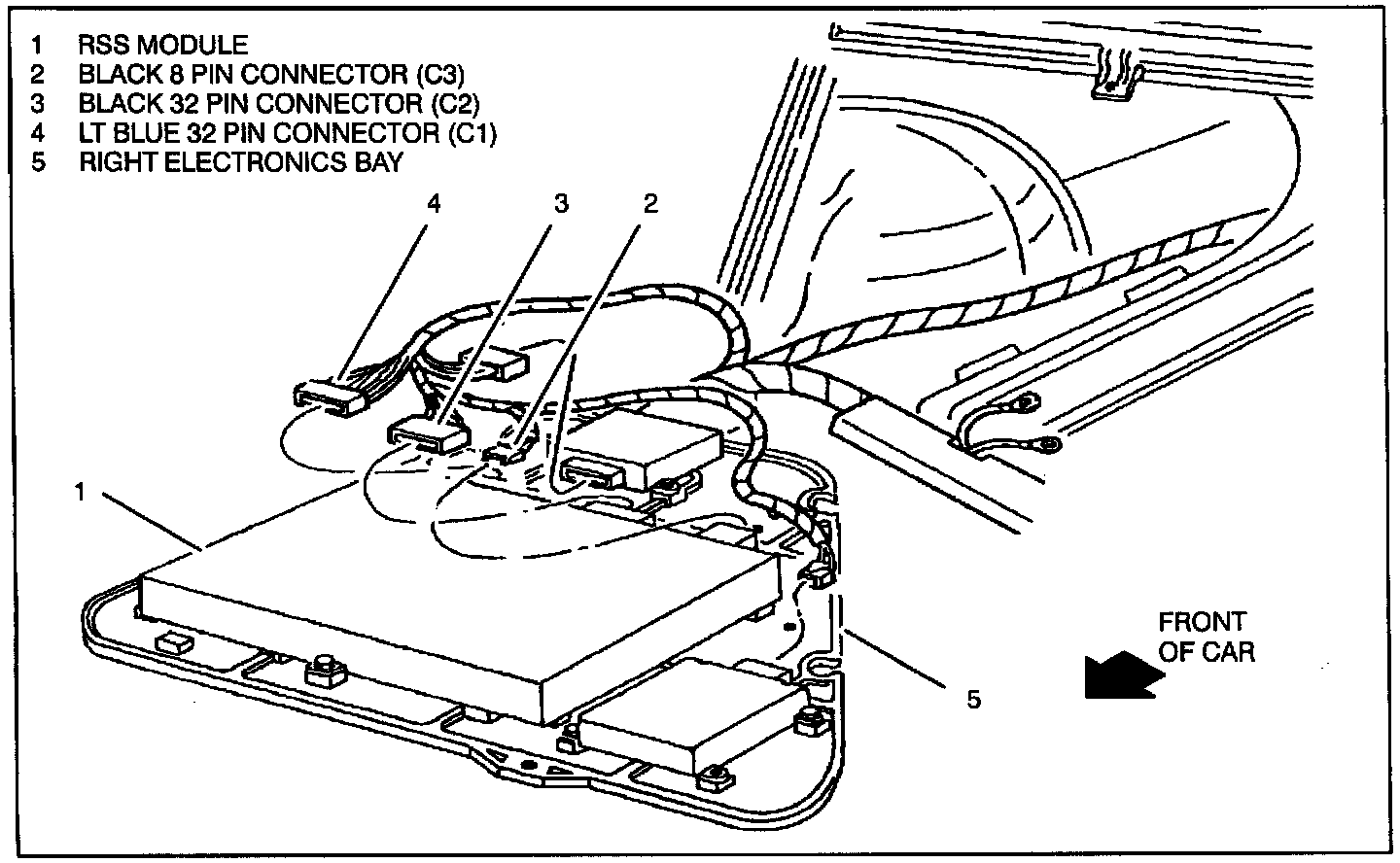

Shown From Rear Seat Area:

Remove or Disconnect

1. Trunk front trim panel.

2. Electrical connectors from module.

3. Module from right electronics bay.

Install or Connect

1. Module to right electronics bay.

2. Electrical connectors to module.

3. Trunk front trim panel.
