Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Trunk Compartment #3 Micro Relay Center >> Pinout Description

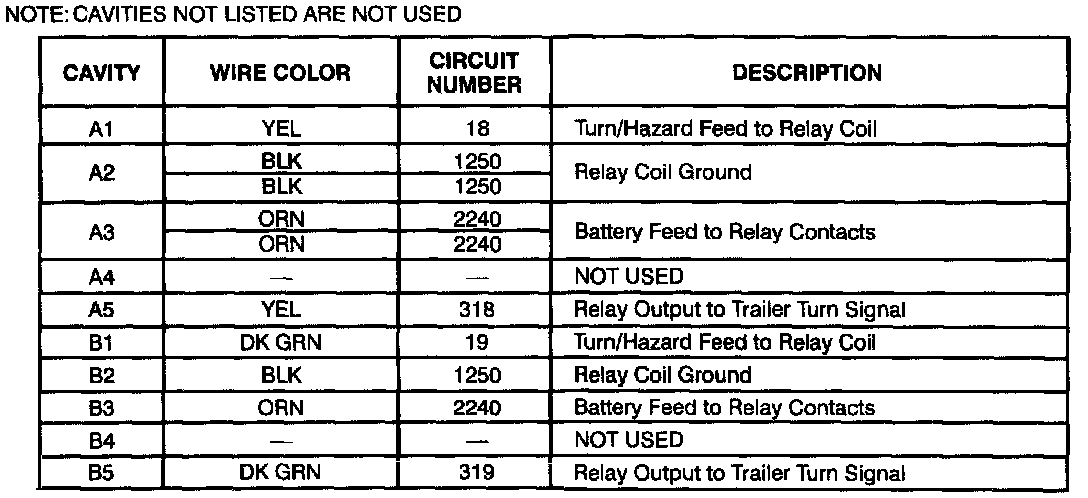

Pinout Description

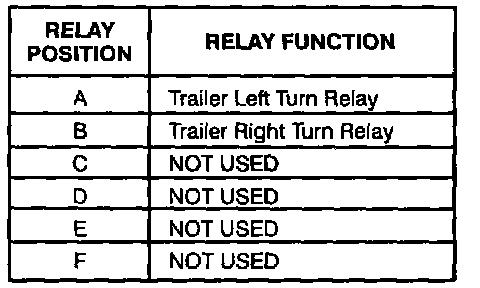

Trunk Compartment #3 Micro Relay Center:



Trunk Compartment #3 Micro Relay Center:
