Home
>>
Cadillac
>>
1994
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Diagnostic Tests
>>
Test C: Shorted Ign Key/Engine Temp/Oil Pressure Circuit Test
Test C: Shorted Ign Key/Engine Temp/Oil Pressure Circuit Test

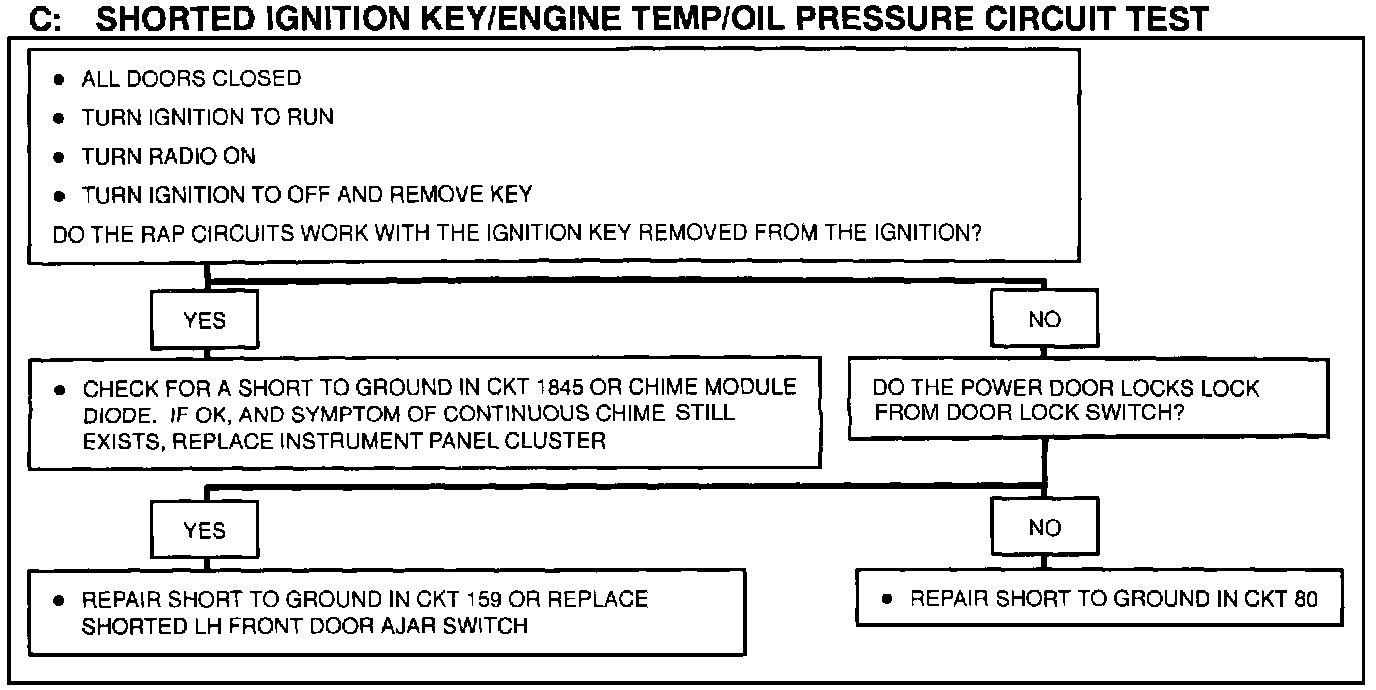

C: Shorted Ignition Key/Engine Temp/Oil Pressure Circuit Test:
