Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Electronic Level Control (ELC)

Electronic Level Control (ELC)

Electronic Level Control (ELC) (Part 1 Of 4):

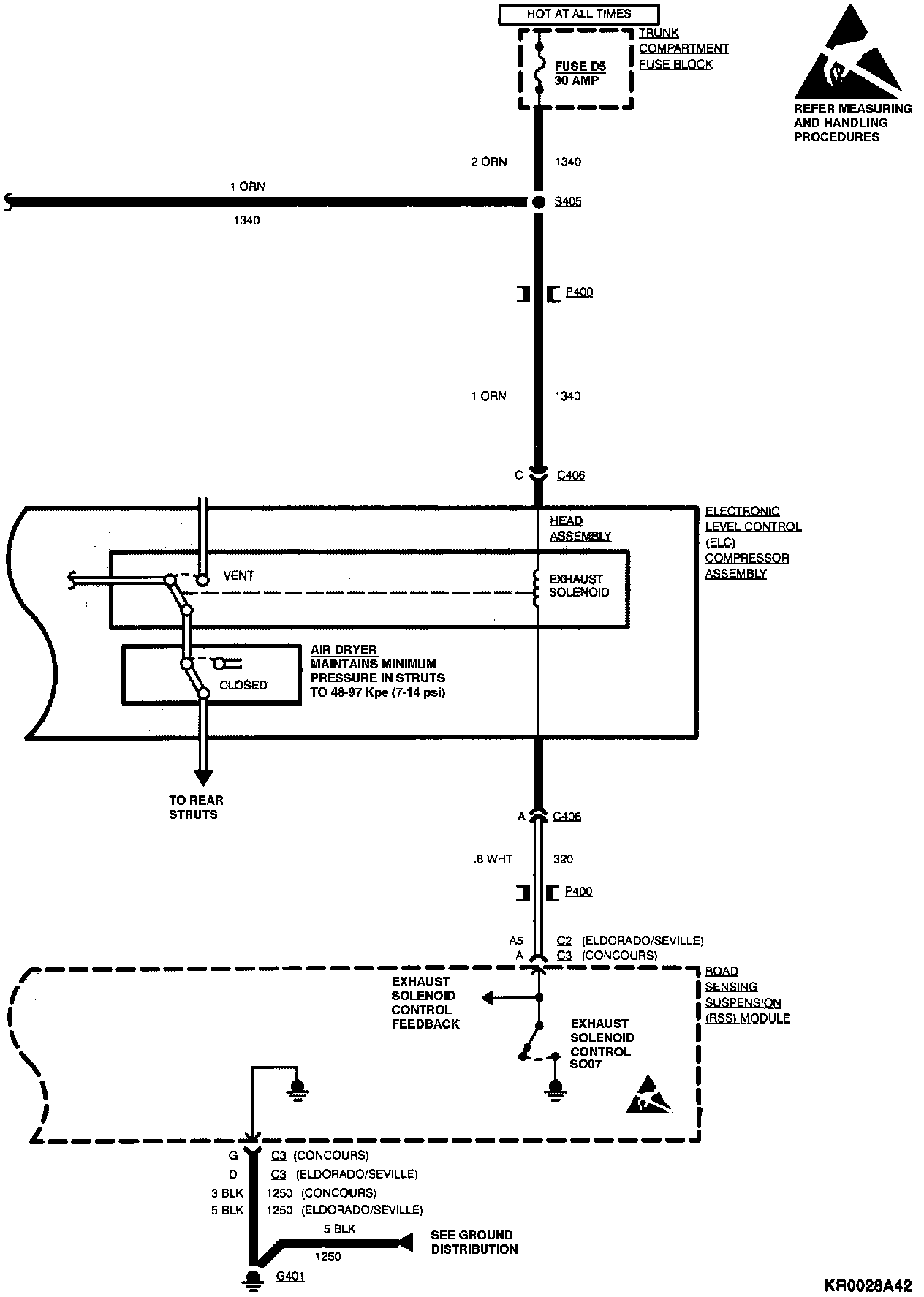

Electronic Level Control (ELC) (Part 2 Of 4):

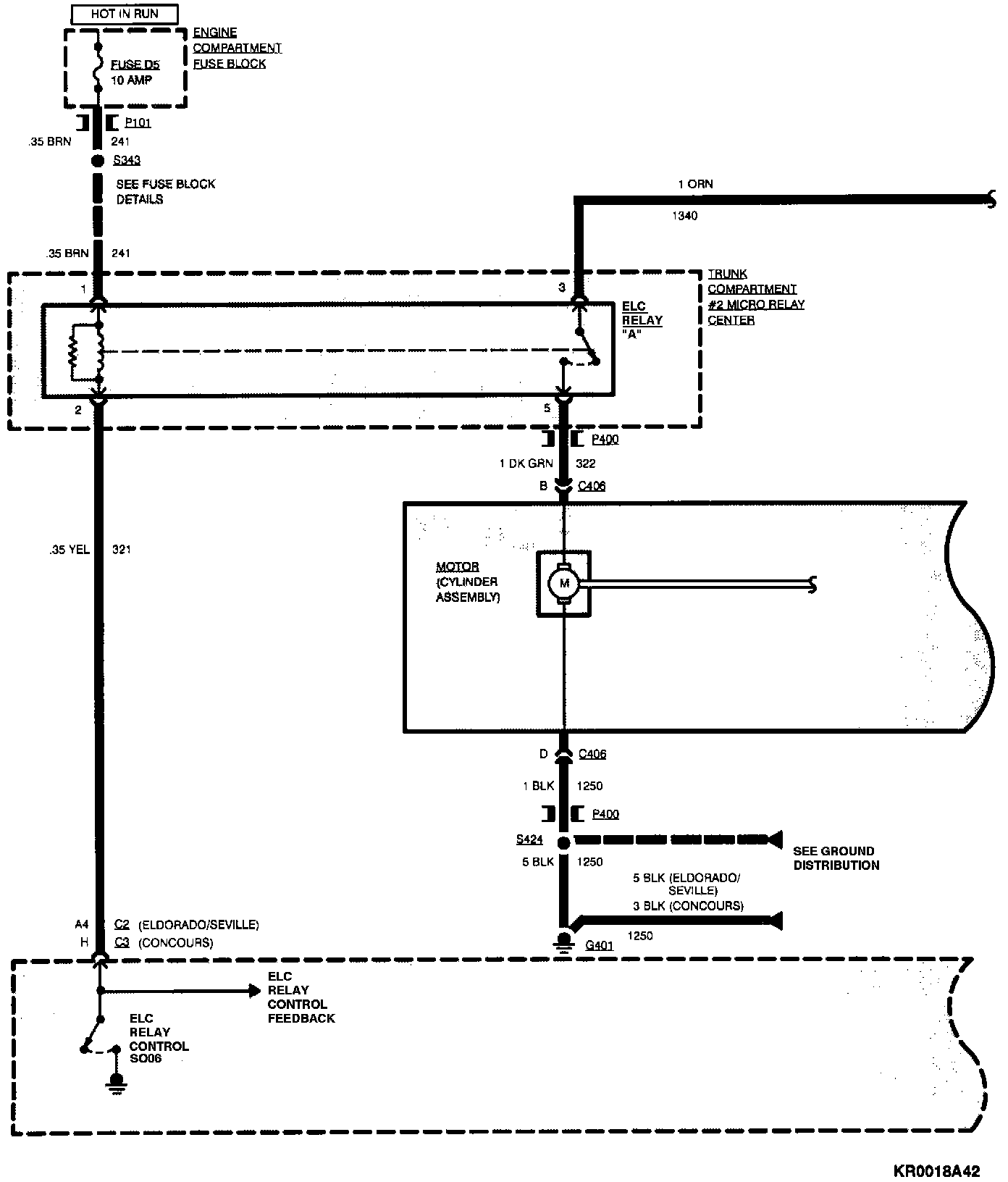

Electronic Level Control (ELC) (Part 3 Of 4):




Electronic Level Control (ELC) (Part 4 Of 4):
