Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G301

G301

Grounds G301 (Part 1 0f 2):

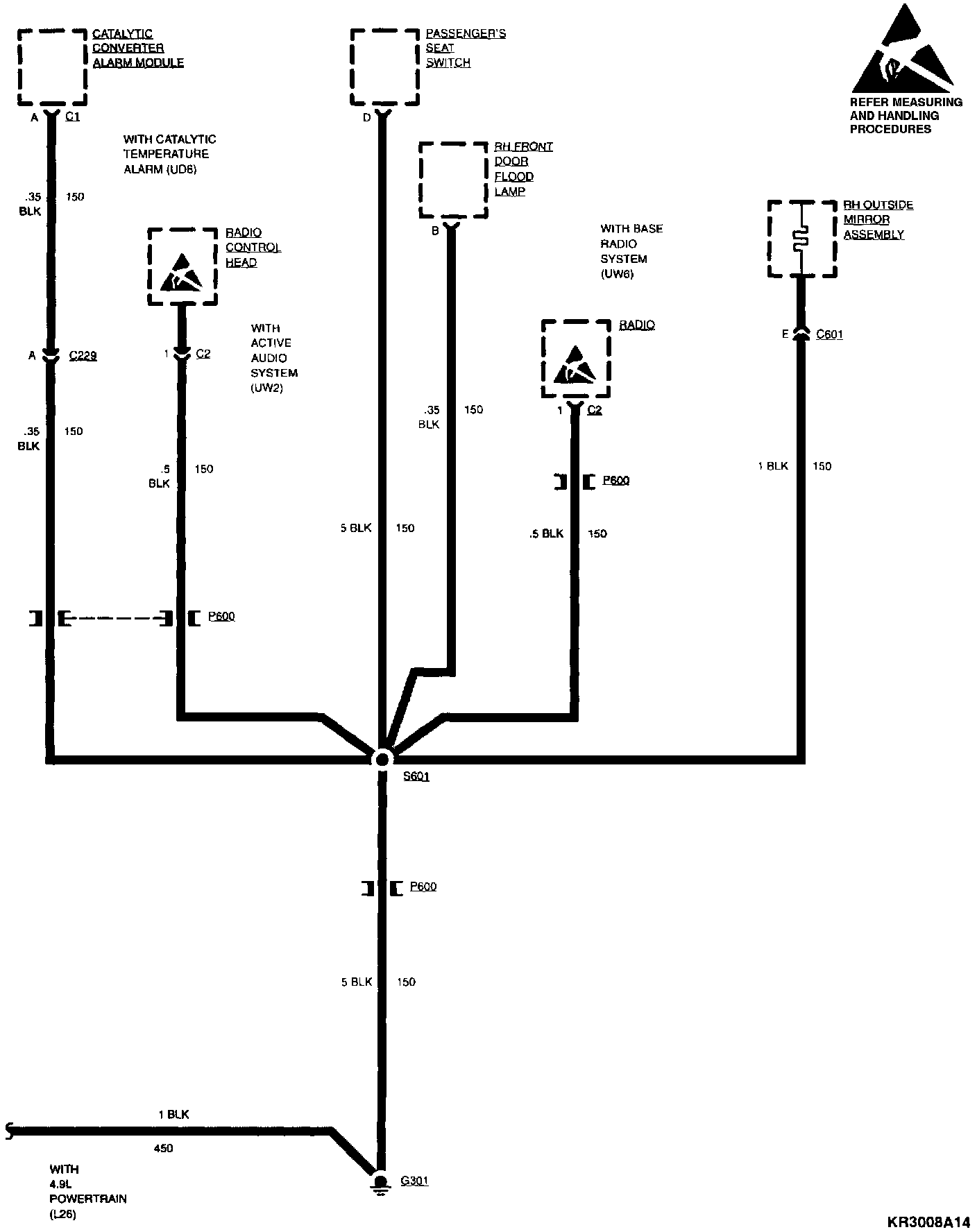

Grounds G301 (Part 2 0f 2):
