Fuse C5
Fuse C5
Trunk Compartment Fuse Block: Fuse C5 (Part 1 Of 2):

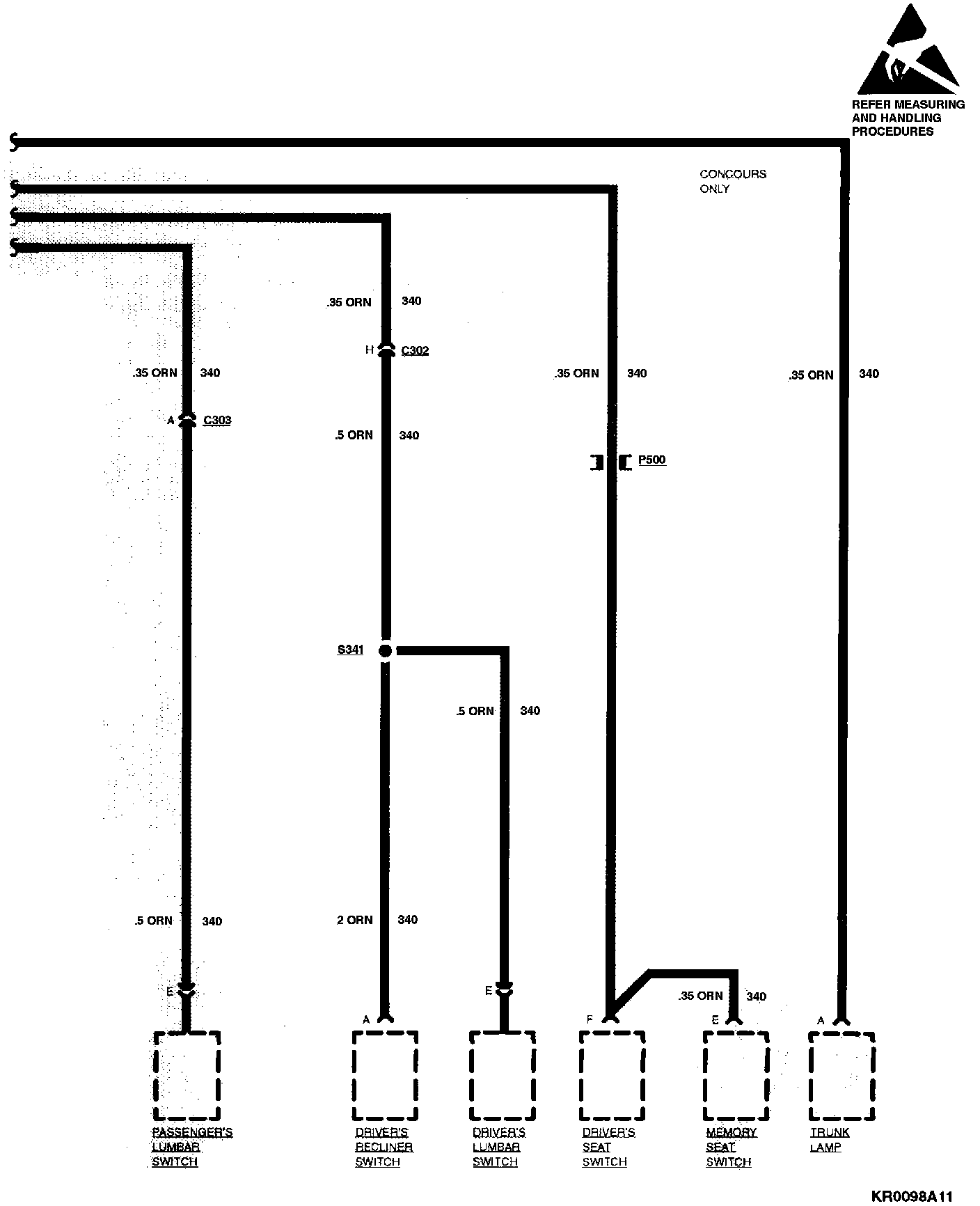

Trunk Compartment Fuse Block: Fuse C5 (Part 2 Of 2):
