Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Fuse and Circuit Breaker Diagrams >> Trunk Compartment Fuse Block >> Fuse A13

Fuse A13

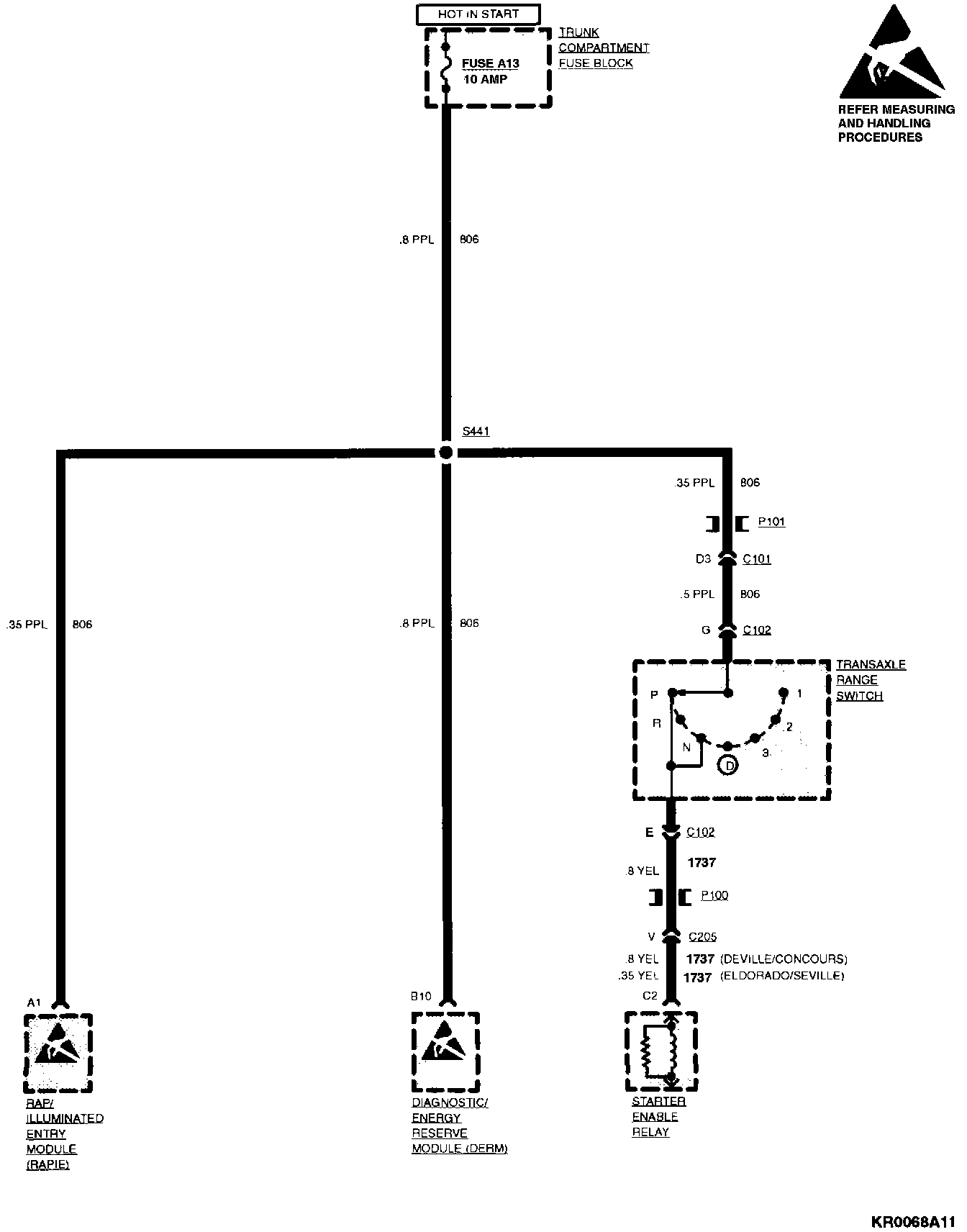

Trunk Compartment Fuse Block: Fuse A13:
