Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Fuse and Circuit Breaker Diagrams >> Retained Accessory Power (RAP) >> Part 2 of 4

Part 2 of 4

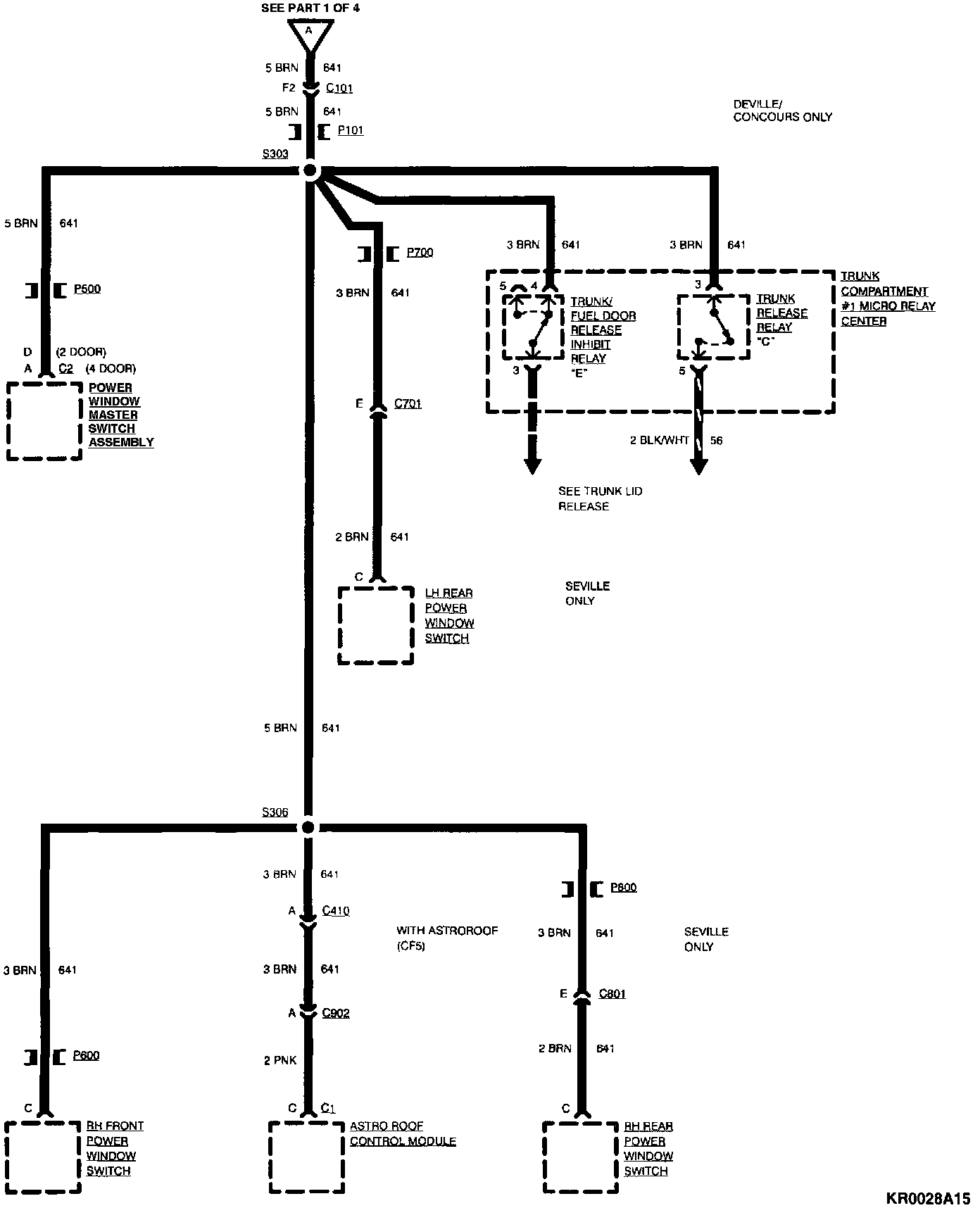

Retained Accessory Power (RAP) (Part 2 Of 4):
