Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Fuse and Circuit Breaker Diagrams >> RH Maxi(R) Fuse Block >> Maxi(R) Fuse 3

Maxi(R) Fuse 3

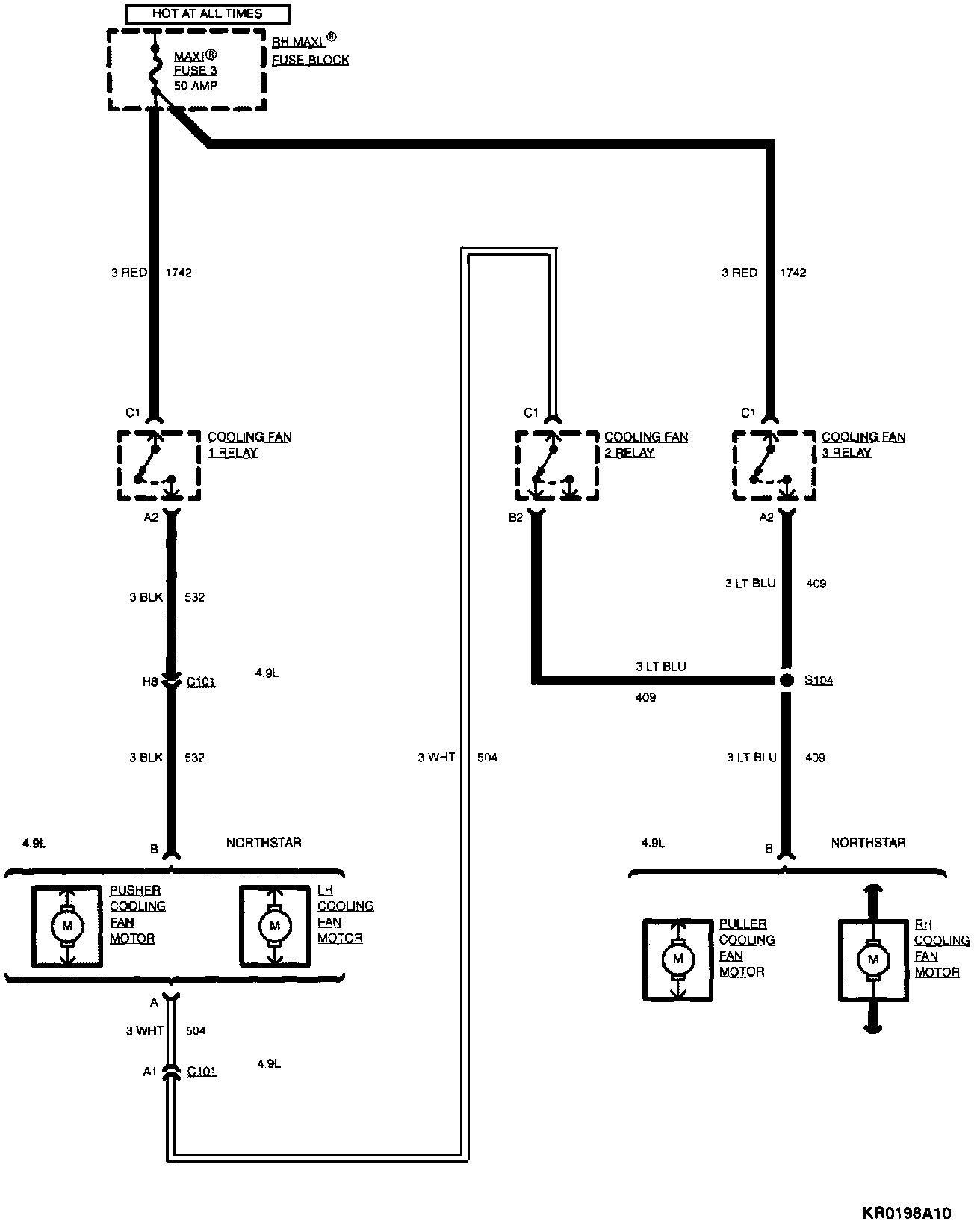

Power Distribution-RH Maxi(R) Fuse Block: Maxi(R) Fuse 3:
