Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> System Diagram >> Power Seats >> 6 Way Driver's and Passenger's

6 Way Driver's and Passenger's

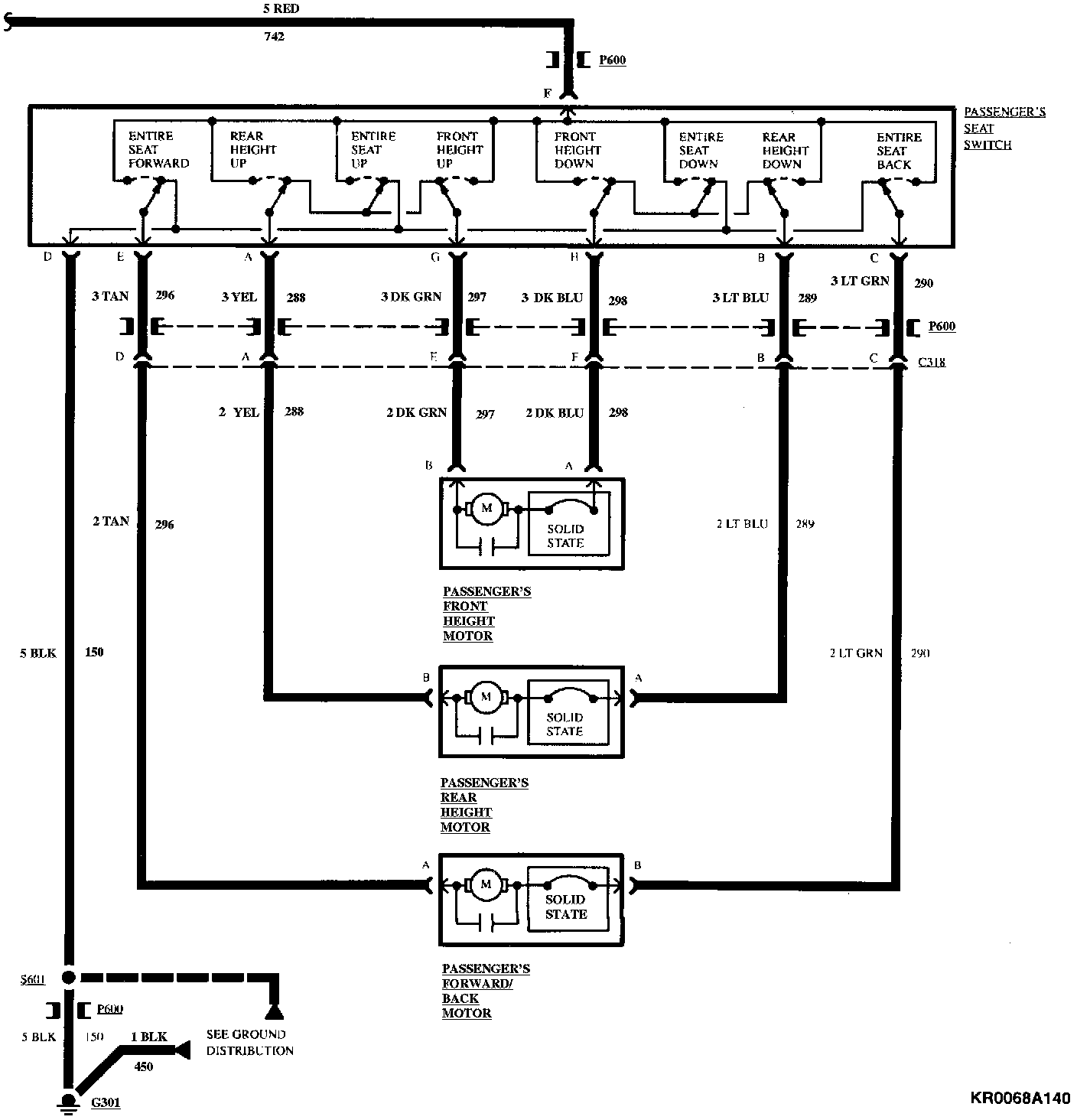

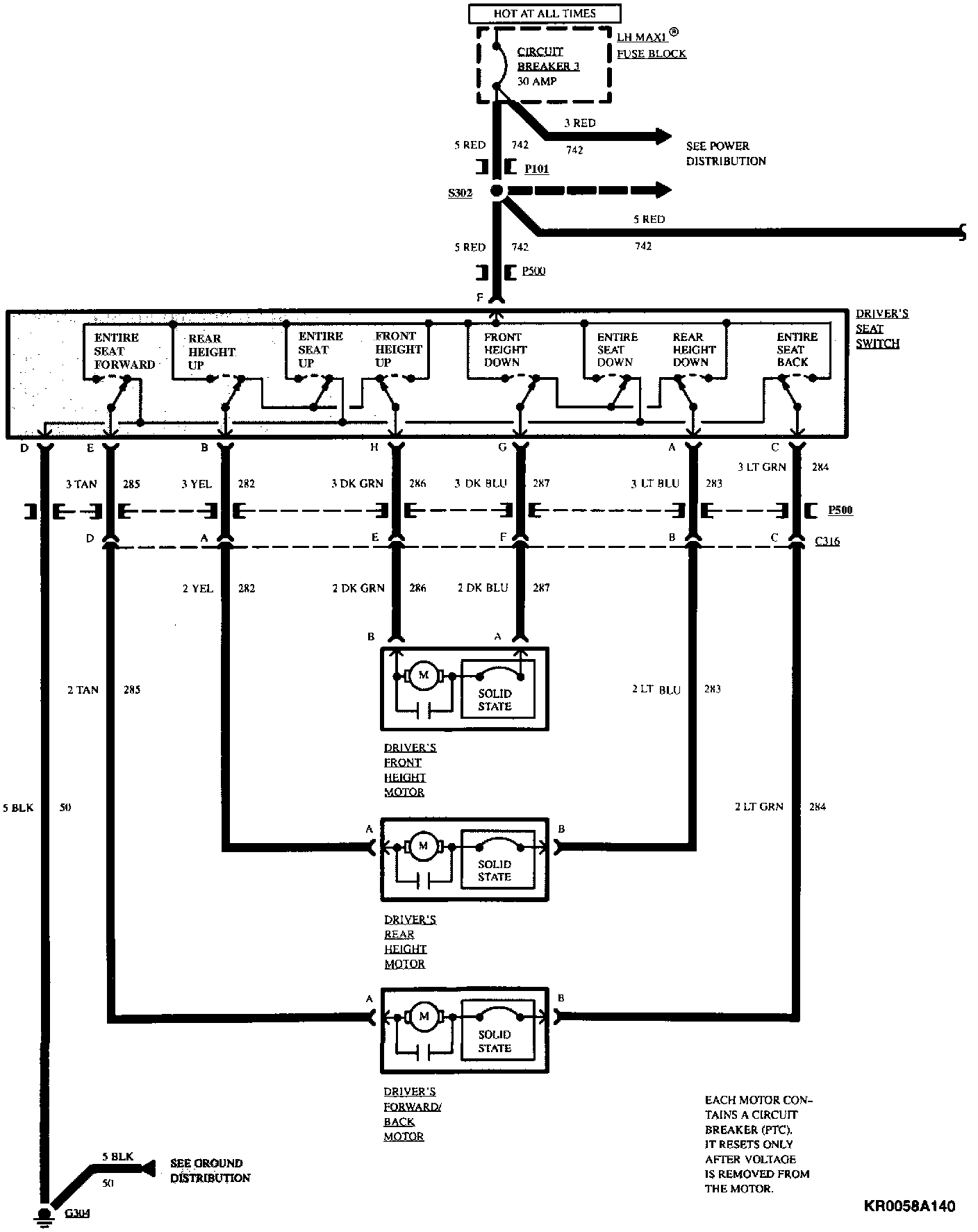

6 Way Driver's And Passenger's (Part 1 Of 2):



6 Way Driver's And Passenger's (Part 2 Of 2):
