Home
>>
Cadillac
>>
1994
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Active Audio System (Uil/Uir)
Active Audio System (Uil/Uir)

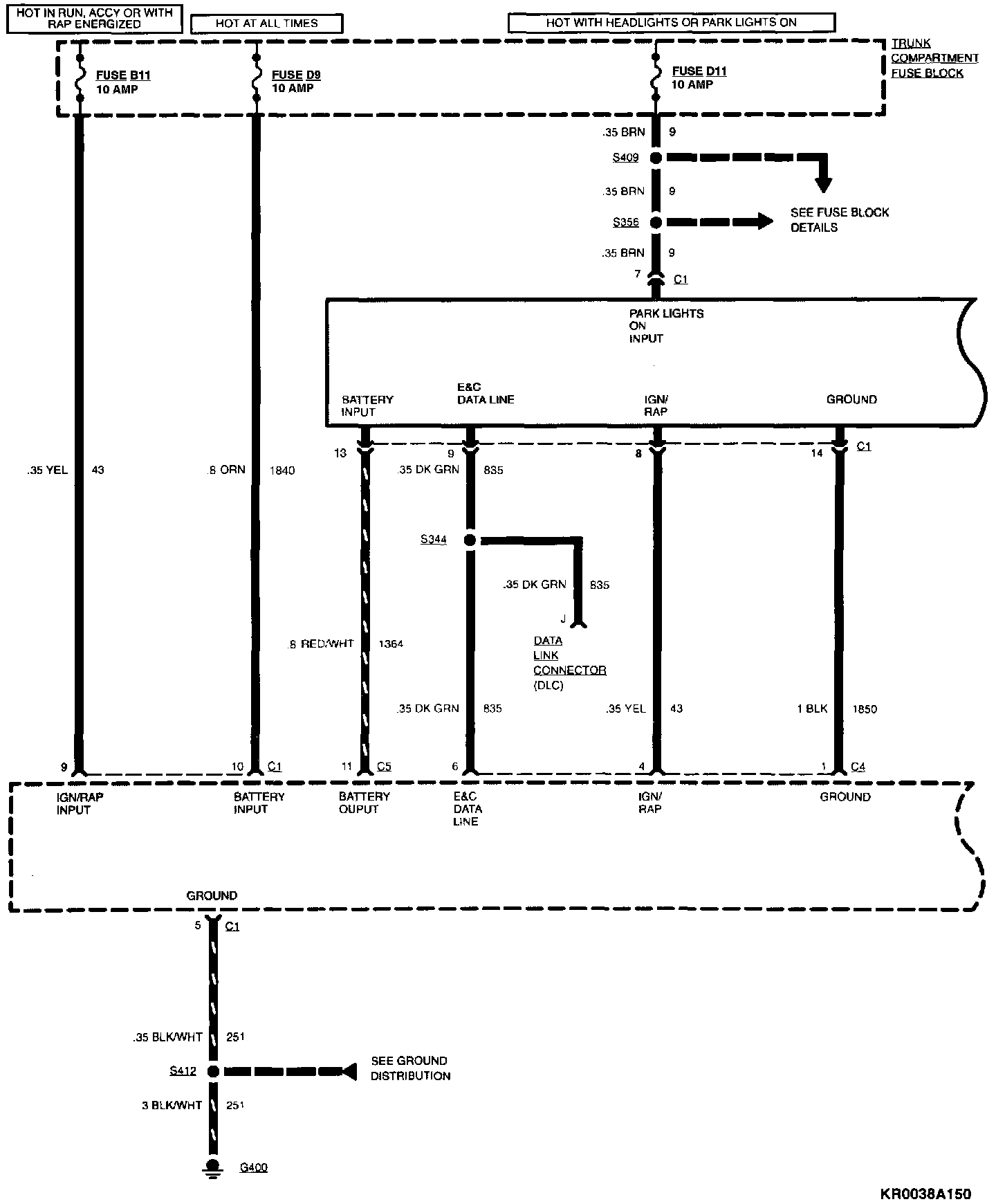

Radio: Active Audio System (UIL/UIR):

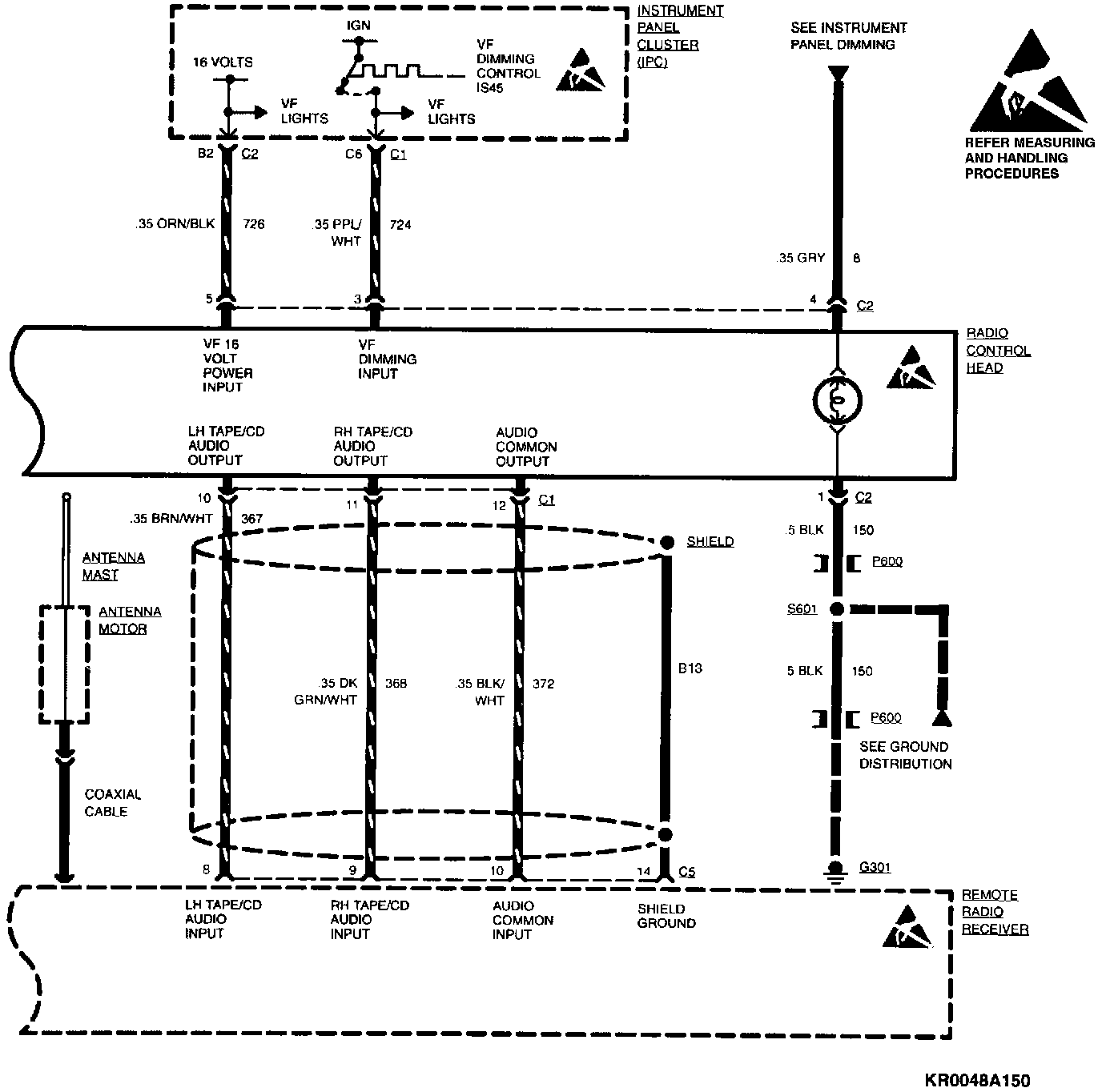

Radio: Active Audio System (UIL/UIR):

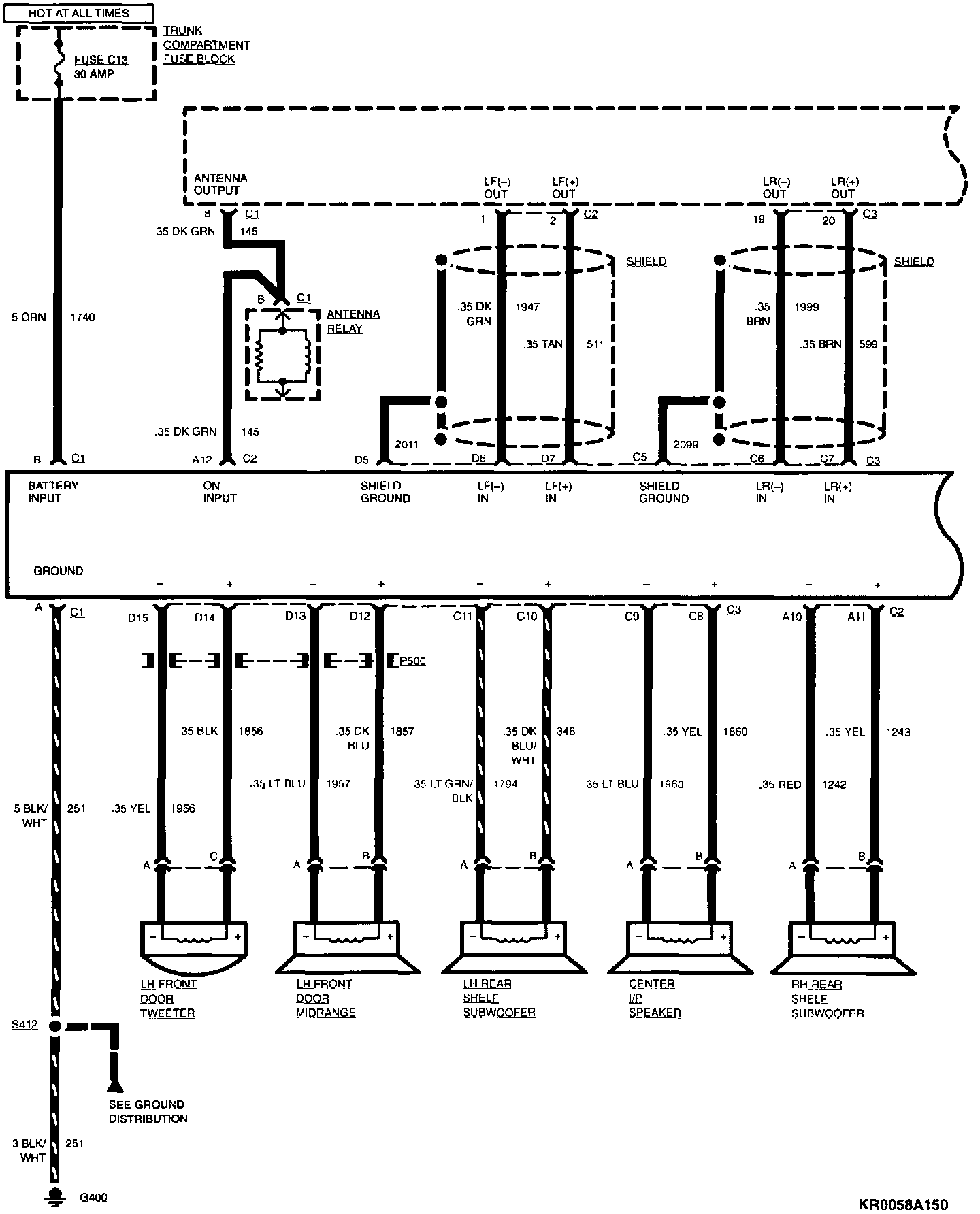

Radio: Active Audio System (UIL/UIR):

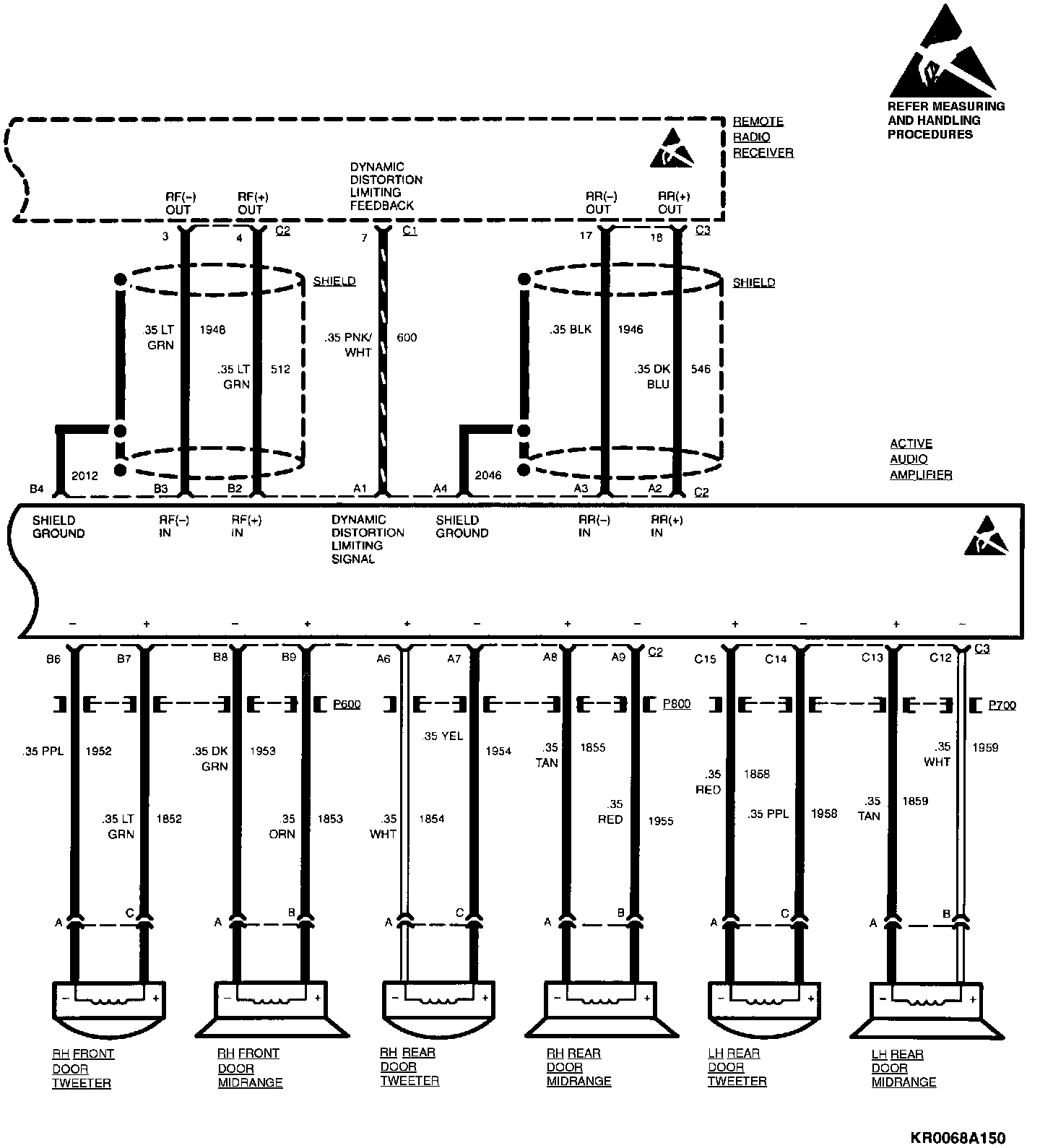

Radio: Active Audio System (UIL/UIR):
