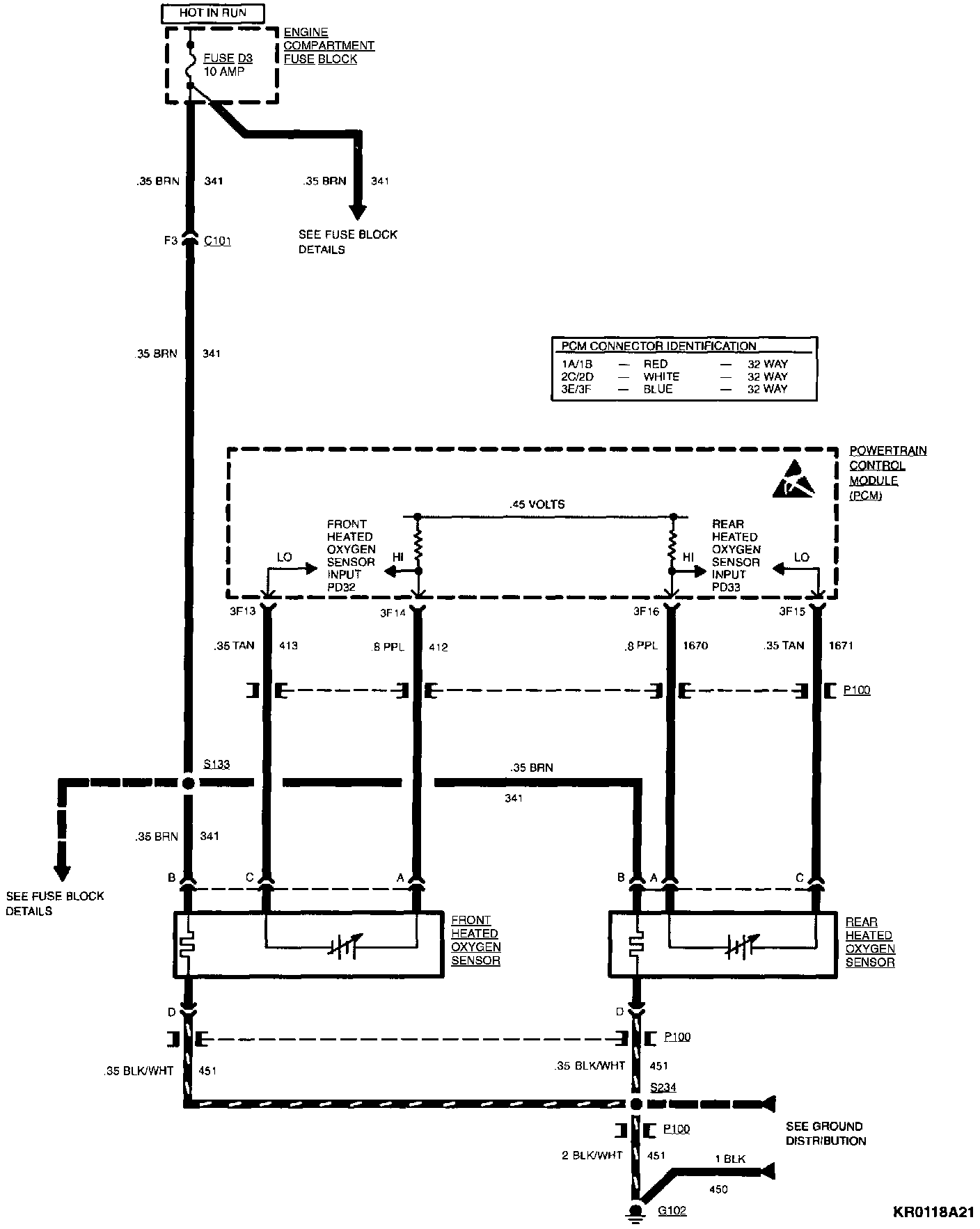

Oxygen Sensor O2S/Heated Oxygen Sensor HO2S
Oxygen Sensor O2S/Heated Oxygen Sensor HO2S
Oxygen Sensors:
Oxygen Sensors:
