Home
>>
Cadillac
>>
1994
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Automatic Transmission/Transaxle Controls
Automatic Transmission/Transaxle Controls

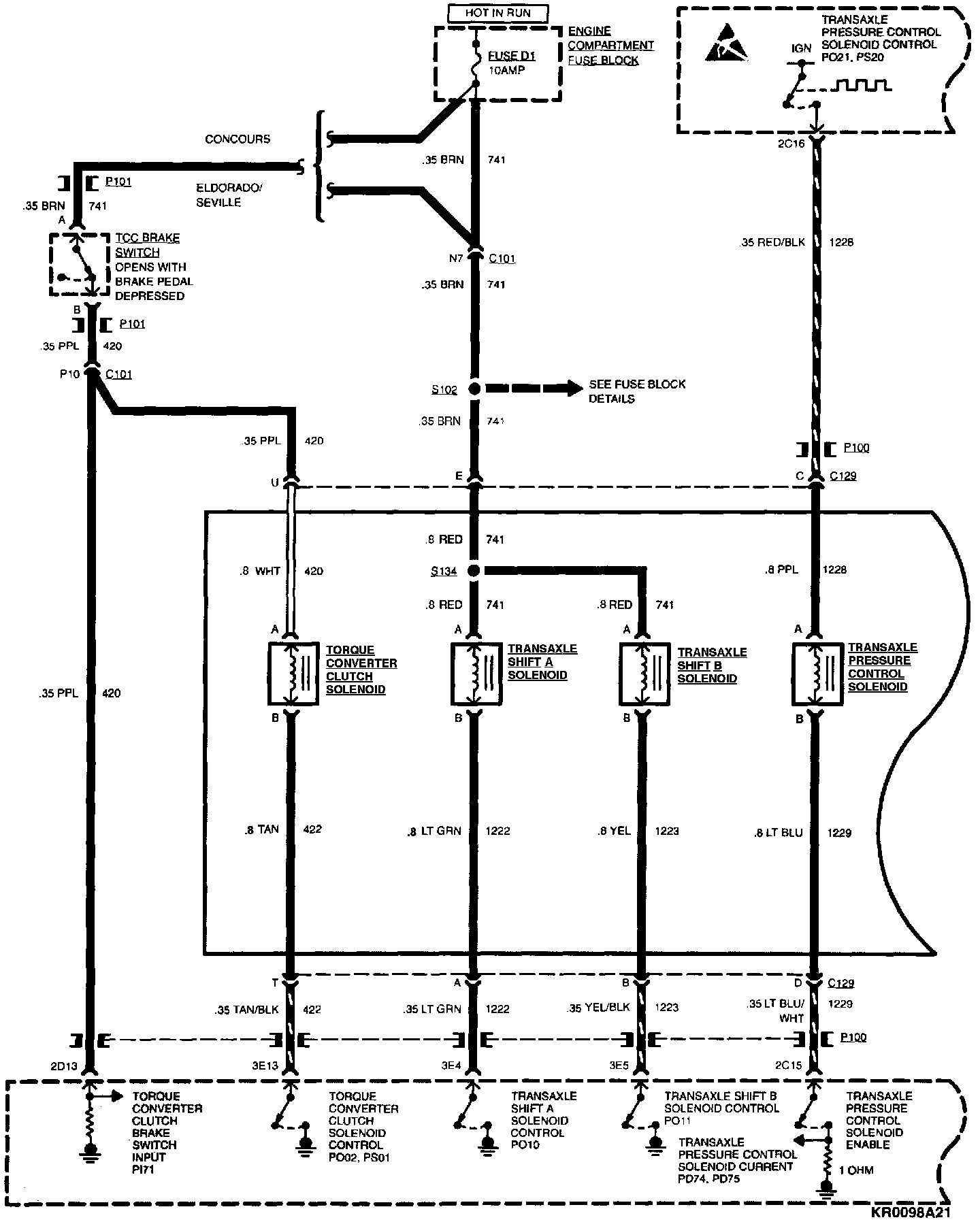

Automatic Transaxle Controls (Part 1 Of 2):

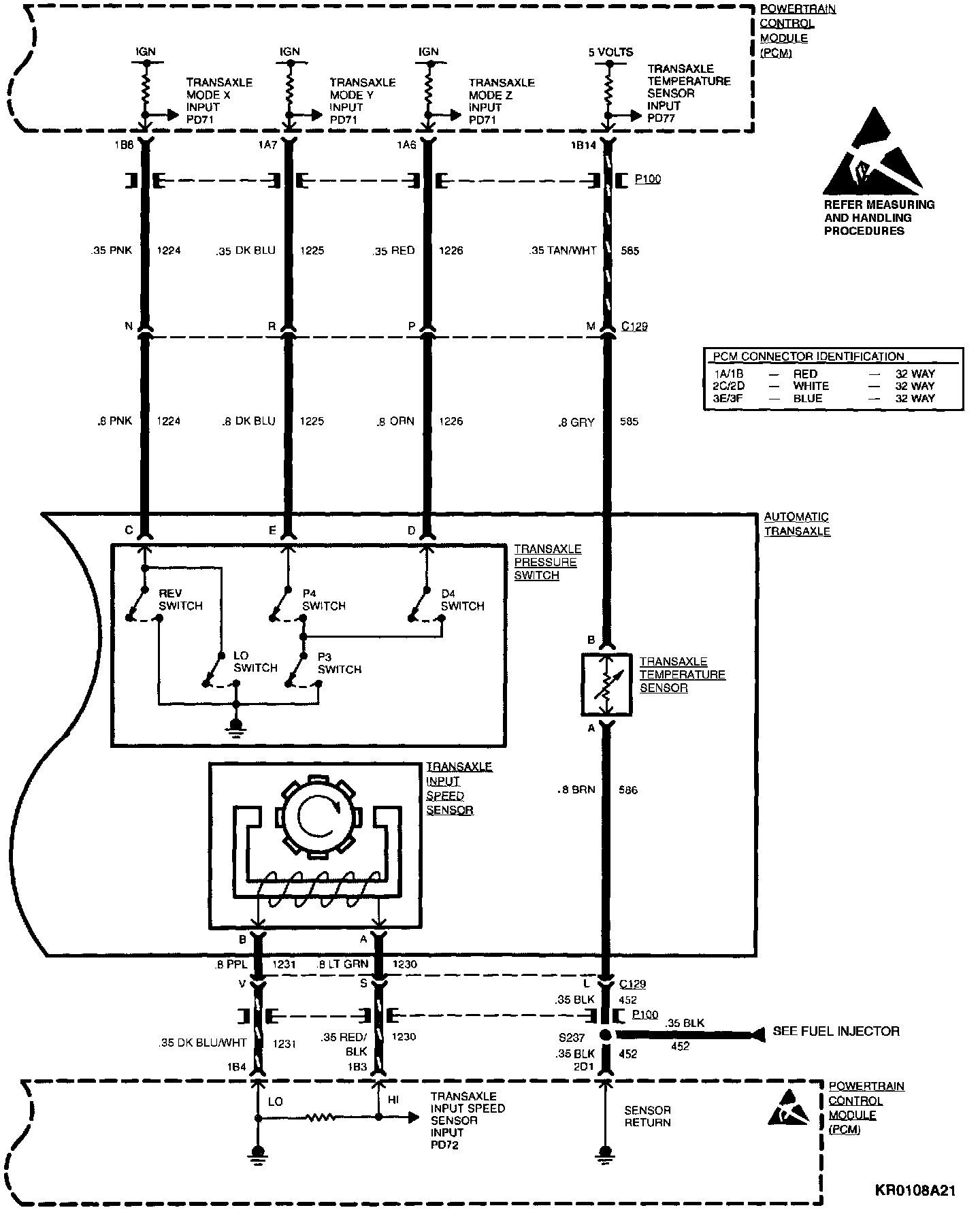

Automatic Transaxle Controls (Part 2 Of 2):
